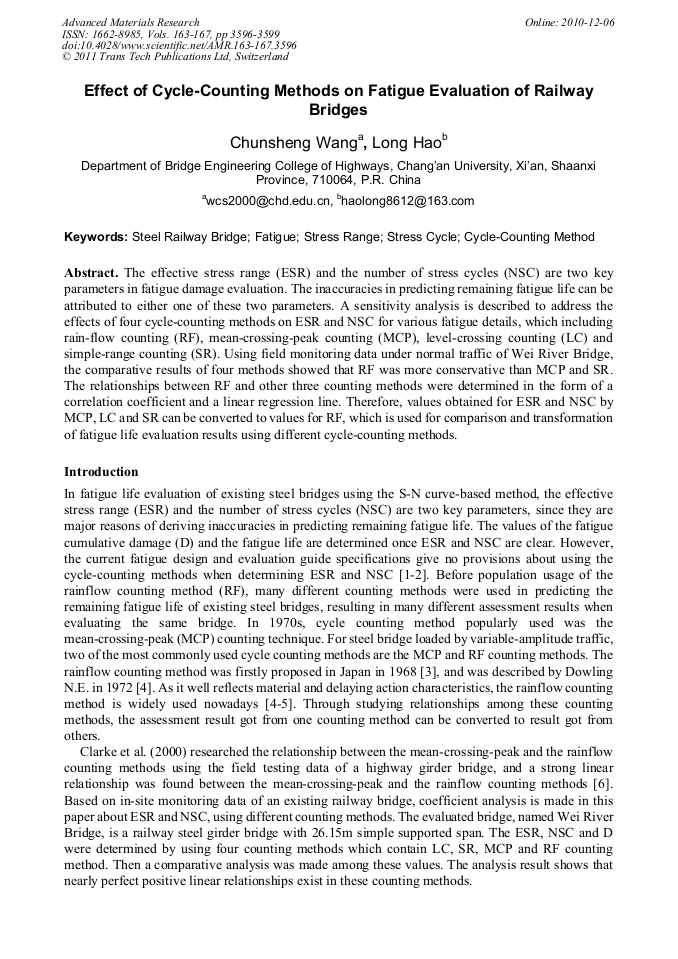

Effect of Cycle-Counting Methods on Fatigue Evaluation of Railway Bridges

Abstract:

The effective stress range (ESR) and the number of stress cycles (NSC) are two key parameters in fatigue damage evaluation. The inaccuracies in predicting remaining fatigue life can be attributed to either one of these two parameters. A sensitivity analysis is described to address the effects of four cycle-counting methods on ESR and NSC for various fatigue details, which including rain-flow counting (RF), mean-crossing-peak counting (MCP), level-crossing counting (LC) and simple-range counting (SR). Using field monitoring data under normal traffic of Wei River Bridge, the comparative results of four methods showed that RF was more conservative than MCP and SR. The relationships between RF and other three counting methods were determined in the form of a correlation coefficient and a linear regression line. Therefore, values obtained for ESR and NSC by MCP, LC and SR can be converted to values for RF, which is used for comparison and transformation of fatigue life evaluation results using different cycle-counting methods.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 163-167)

Pages:

3596-3599

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.163-167.3596

Citation:

Cite this paper

Online since:

December 2010

Authors:

Chung Sheng Wang, Long Hao

Keywords:

Cycle-Counting Method, Fatigue, Steel Railway Bridge, Stress Cycle, Stress Range

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] AASHTO LRFD Bridge Design Specification (AASHTO, Washington, D.C. 2007).

Google Scholar

[2] Guide Specifications for Fatigue Evaluation of Existing Steel Bridges (AASHTO, Washington, D.C. 1990).

Google Scholar

[3] M. Matsuishi and T. Endo: Fatigue of Metals Subjected to Varying Stress (Kyushu District meeting of Japan society of Mechanical Engineers, Japan 1968).

Google Scholar

[4] N. E. Dowling: Mechanical Behaviour of Materials (Trans Prentice Hall, New Jersey 2007).

Google Scholar

[5] Standard Practices for Cycle Counting in Fatigue Analysis (ASTM Designation: E1049-85, Philadelphia 2005).

Google Scholar

[6] S. N. Clarke, D. W. Goodpasture, R. M. Bennett, J. H. Deatherage and E.G. Burdette: Transportation Research Record Vol. 1740 (2000), p.49.

Google Scholar
