Experimental Investigation on the Anchorage Mechanics of Anchorage Cable of the late Model with the Pressure Uniform

Abstract:

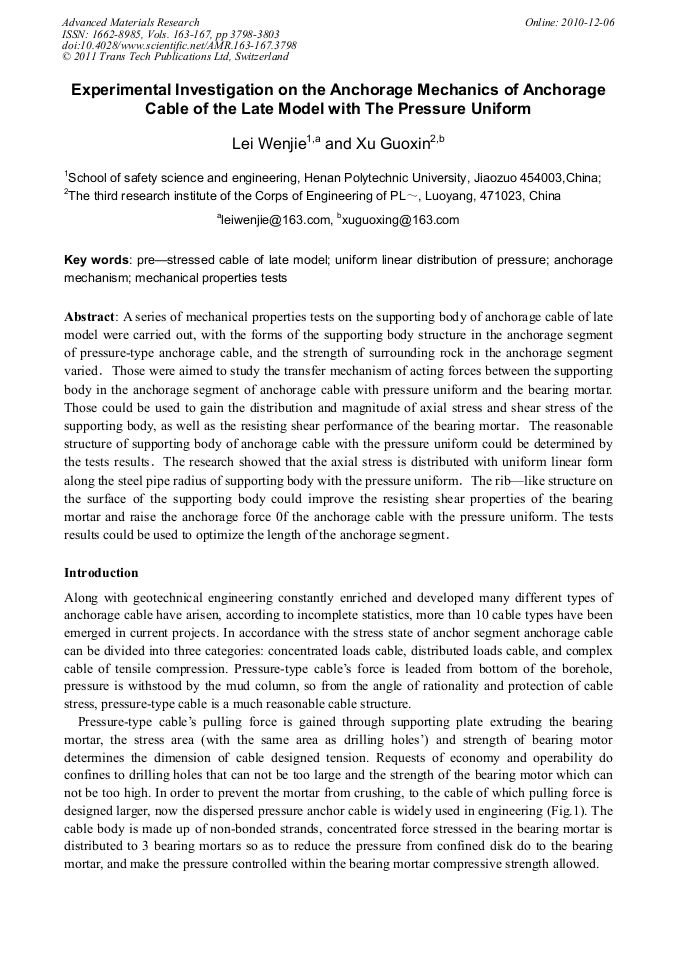

Article Preview

A series of mechanical properties tests on the supporting body of anchorage cable of late model were carried out, with the forms of the supporting body structure in the anchorage segment of pressure-type anchorage cable, and the strength of surrounding rock in the anchorage segment varied. Those were aimed to study the transfer mechanism of acting forces between the supporting body in the anchorage segment of anchorage cable with pressure uniform and the bearing mortar. Those could be used to gain the distribution and magnitude of axial stress and shear stress of the supporting body, as well as the resisting shear performance of the bearing mortar. The reasonable structure of supporting body of anchorage cable with the pressure uniform could be determined by the tests results. The research showed that the axial stress is distributed with uniform linear form along the steel pipe radius of supporting body with the pressure uniform. The rib—like structure on the surface of the supporting body could improve the resisting shear properties of the bearing mortar and raise the anchorage force 0f the anchorage cable with the pressure uniform. The tests results could be used to optimize the length of the anchorage segment.

Info:

Periodical:

Advanced Materials Research (Volumes 163-167)

Edited by:

Lijuan Li

Pages:

3798-3803

DOI:

10.4028/www.scientific.net/AMR.163-167.3798

Citation:

W. J. Lei and G. X. Xu, "Experimental Investigation on the Anchorage Mechanics of Anchorage Cable of the late Model with the Pressure Uniform", Advanced Materials Research, Vols. 163-167, pp. 3798-3803, 2011

Online since:

December 2010

Export:

Price:

$35.00

[2] Zhang Lewen and Wang Ren, Research on Status Quo of Anchorage Theory of Rock and soil[J], Rock and Soil Mechanics, 2002, 23:627—631.

[3] Liu Yutang and Qu Jinming, The Structure and Characteristic of Commonly Used Prestressed Cable Structure [J] Prestress Technology, 2005, 51:20—24.

[4] You Chunan and Zhan Yubao, Distributing Characters and Analysis of Stresses in Presresed Cables[J], Journal of Rock Mechanics and Engineering, 2005, 24(6):925—928.

[5] Li Rencheng, Wang Jun and Hu Degui, The Character Be Subjected to Force of Pressure Type Anchored Calles and its Determination of Anchorage Length[J] , Subgrabe Engineering, 2006, 128:42—43.

[6] Wang Shuren, He Manchao and Jin Yongjun, Anchoring Mechanism of Prestressed Anchor Cables under Concentrated Tension and Dispersive Pressure[J], Journal of University of Science and Technology Beijing 2005, 27 (3):78—283.
