Simulation of Flow past Cable with Upper Rivulet on its Surface and Investigation of the Cable Dynamics

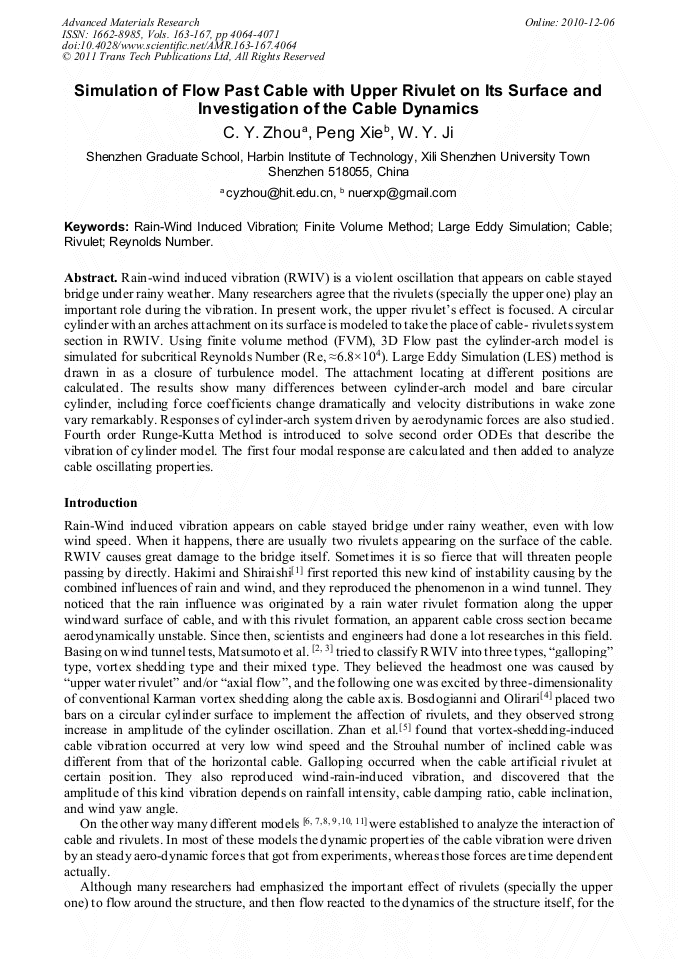

Abstract:

Rain-wind induced vibration (RWIV) is a violent oscillation that appears on cable stayed bridge under rainy weather. Many researchers agree that the rivulets (specially the upper one) play an important role during the vibration. In present work, the upper rivulet’s effect is focused. A circular cylinder with an arches attachment on its surface is modeled to take the place of cable- rivulets system section in RWIV. Using finite volume method (FVM), 3D Flow past the cylinder-arch model is simulated for subcritical Reynolds Number (Re, ≈6.8×10⁴). Large Eddy Simulation (LES) method is drawn in as a closure of turbulence model. The attachment locating at different positions are calculated. The results show many differences between cylinder-arch model and bare circular cylinder, including force coefficients change dramatically and velocity distributions in wake zone vary remarkably. Responses of cylinder-arch system driven by aerodynamic forces are also studied. Fourth order Runge-Kutta Method is introduced to solve second order ODEs that describe the vibration of cylinder model. The first four modal response are calculated and then added to analyze cable oscillating properties.

• Periodical: Advanced Materials Research (Volumes 163-167)
• Pages: 4064-4071
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.163-167.4064
• Online since: December 2010
• Authors: Chao Ying Zhou, Peng Xie, Wen Ying Ji
• Keywords: Cable, Finite Volume Method (FVM), Large Eddy Simulation (LES), Rain-Wind-Induced Vibration, Reynolds Number, Rivulet

References

[1] Y. Hikami, N. Shiraishi. J. Wind Eng. Ind. Aerodyn. 29(1988): 409-418.

[2] M. Matsumoto et al. J. Wind Eng. Ind. Aerodyn., 57 (1995): 323-333.

[3] M. Matsumoto et al. J. Wind Eng. Ind. Aerodyn., 91 (2003): 1-12.

[4] A. Bosdogianni, D. Olirari. J. Wind Eng. Ind. Aerodyn., 64 (1996): 171-185.

[5] S. Zhan, Y.L. Xu, H.J. Zhou, K. M. Shum. J. Wind Eng. Ind. Aerodyn. 96(2008): 2438-2451.

[6] C. Seidel, D. Dinkler. Computers and Structures, 84(2006): 1584-1595.

[7] L. Wang, Y.L. Xu. International Journal of Solids and Structures, 40(2003): 1265-1280.

[8] Y.L. Xu, L.Y. Wang. J. Wind Eng. Ind. Aerodyn. 91 (2003): 27–40.

[9] U. Peil, O. Dreyer. Wind and Structures, Vol. 10, No. 1 (2007) 83-97.

[10] M. Gu, L. Huang. Journal of Fluids and Structures, 24(2008): 200-211.

[11] Li Shou-ying, Gu Ming, Chen Zheng-qing. Engineering Mechanics, Vol. 24, No. 6(2007): 7-14.

[12] Li Shou-ying, Gu Ming. J. of Tongji University (Natural Science), Vol. 32 No. 10: 1334 – 1338 (In Chinese).

[13] D. Yeo, N.P. Jones. J. Wind Eng. Ind. Aerodyn., 96(2008): 1947–(1960).

[14] Zhang Cui-ying, et al. Science Technology and Engineering, Vol. 7 No. 20: 5331-05.

[15] Alam M. M., Sakamoto H., Moriya M. Journal of Fluids and Structures, 2003, 18(3-4): 347-366.

[16] LAM K., FANG X. Journal of Fluids and Structures, 1995, 9(2): 195-214.

[17] LAM K., LI J. Y. and SO R. M. C. Journal of Fluid and Structures , 2003, 18(3): 305-324.

[18] Lin ZOU, Yu-feng LIN, Kit LAM. Journal of Hydrodynamics, Ser. B, Volume 20, Issue 4, August 2008, Pages 403-413.

[19] Y.Q. Ni, X.Y. Wanga, Z.Q. Chen, J.M. Ko. J. Wind Eng. Ind. Aerodyn., 95(2007): 303–328.
