The Research on the Dynamic Response of Arched Corrugated Metal Roof Structure with Ring Hoops

Abstract:

The paper is based on the relatively large-span, thin thickness of the arched corrugated metal roof (ACMR) and the fact that the structure would suffer asymmetry swinging within the vertical plane and structure vibration under the effect of the wind and earthquake. A structure strengthening method called the arched corrugated metal roof with ring hoops (ACMRH) is adopted. With SAP2000, a finite element model is established, with type of w666-18m span, rise-span ratio 0.25, 1mm of thickness and condition of fixed support as its research object. The dynamic time history response is analyzed and compared with documents [1]. Result is shown as below. With the same earthquake wave on the structure added, the vertical and horizontal deflection displacement of the most unfavorable point of the arched corrugated metal roof with ring hoops is always less than that of the structure without ring hoops. The maximal decrement is about 28%. This result indicates the arched corrugated metal roof with ring hoops has a better effect on controlling the displacement deformation.

You might also be interested in these eBooks

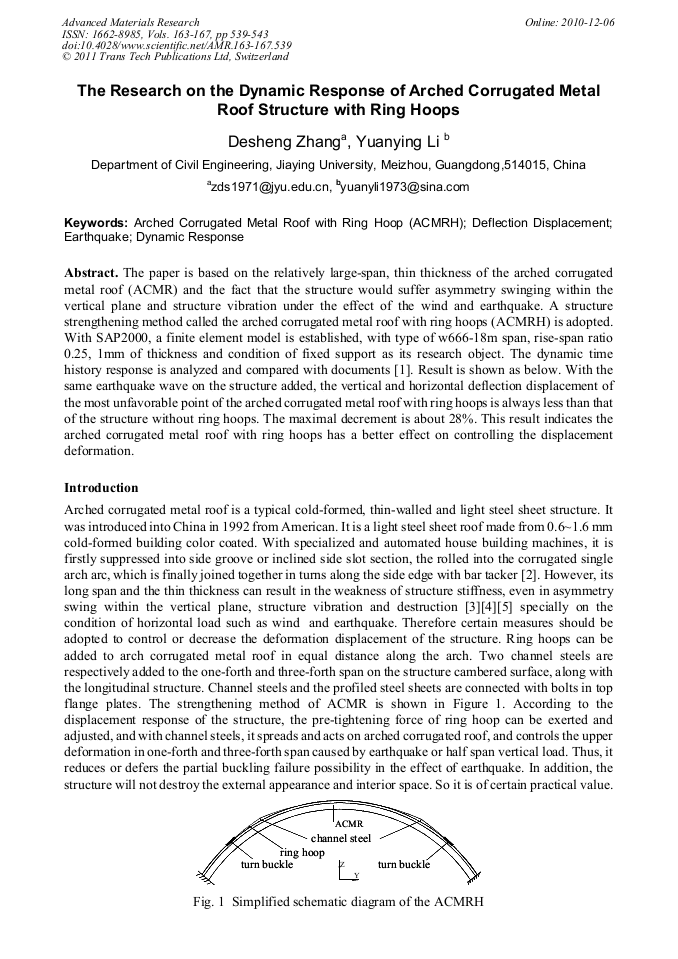

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 163-167)

Pages:

539-543

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.163-167.539

Citation:

Cite this paper

Online since:

December 2010

Authors:

De Sheng Zhang, Yuan Ying Li

Keywords:

Arched Corrugated Metal Roof with Ring Hoop (acmrh), Deflection Displacement, Dynamic Response, Earthquake

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Yuanying Li. The Research on Calculating Model and Dynamic Properties of Arched Corrugated Steel Roof[D]. Hubei: Wuhan. Wuhan University of Technology, 2001. In Chinese.

Google Scholar

[2] Xilang Liu. Beijing. Journal of Building Sturcture, 1996, 17(4), p.72-p.75. In Chinese.

Google Scholar

[3] Yuanqing Wang, Yong Zhang, Chengdong Tan. Beijing. Journal of Beijing Jiaotong University. 2006, 30(4), p.31-p.34. In Chinese.

Google Scholar

[4] Yuanqing Wang, Chengdong Tan, Yong Zhang. Beijing. Industrial Construction. 2006, 36(8), p.78-p.81. In Chinese.

Google Scholar

[5] Henhua Cheng, TiejunLiu. Henan: Zhengzhou. Grain Distribution Technology．2007（2）, p.11-p.13. In Chinese.

Google Scholar

[6] Xiaoping Wang. Experimental study and FEM analysis of large-span metal corrugated arch roof [D]. Hubei: Wuhan. Wuhan University of Technology, 1999. In Chinese.

Google Scholar
