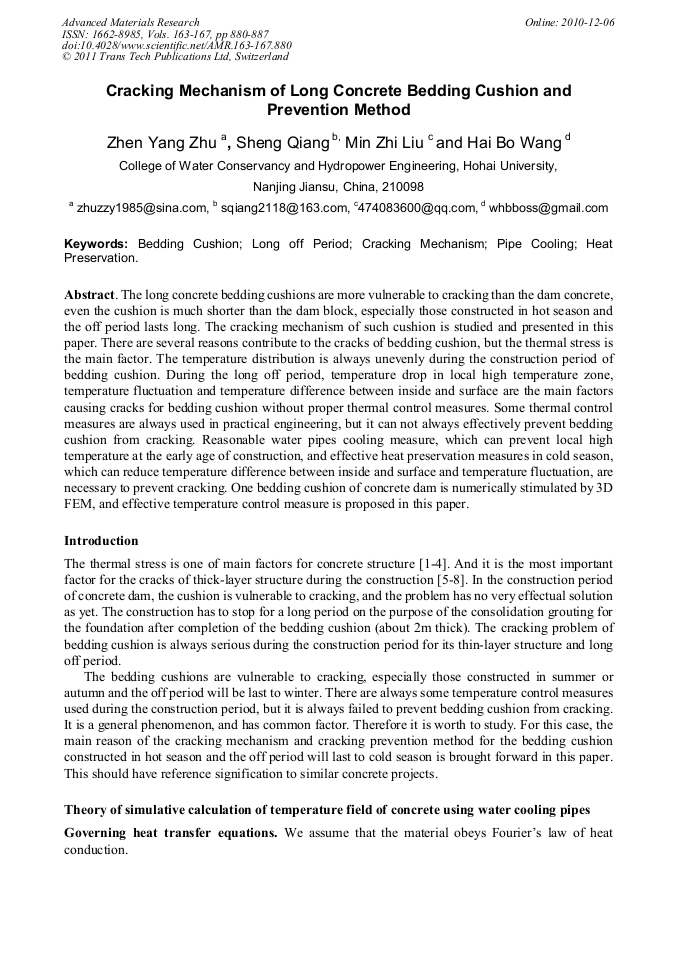

Cracking Mechanism of Long Concrete Bedding Cushion and Prevention Method

Abstract:

The long concrete bedding cushions are more vulnerable to cracking than the dam concrete, even the cushion is much shorter than the dam block, especially those constructed in hot season and the off period lasts long. The cracking mechanism of such cushion is studied and presented in this paper. There are several reasons contribute to the cracks of bedding cushion, but the thermal stress is the main factor. The temperature distribution is always unevenly during the construction period of bedding cushion. During the long off period, temperature drop in local high temperature zone, temperature fluctuation and temperature difference between inside and surface are the main factors causing cracks for bedding cushion without proper thermal control measures. Some thermal control measures are always used in practical engineering, but it can not always effectively prevent bedding cushion from cracking. Reasonable water pipes cooling measure, which can prevent local high temperature at the early age of construction, and effective heat preservation measures in cold season, which can reduce temperature difference between inside and surface and temperature fluctuation, are necessary to prevent cracking. One bedding cushion of concrete dam is numerically stimulated by 3D FEM, and effective temperature control measure is proposed in this paper.

• Periodical: Advanced Materials Research (Volumes 163-167)
• Pages: 880-887
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.163-167.880
• Online since: December 2010
• Authors: Zhen Yang Zhu, Sheng Qiang, Min Zhi Liu, Hai Bo Wang
• Keywords: Bedding Cushion, Cracking Mechanism, Heat Preservation, Long Off Period, Pipe Cooling

References

[1] G.D. Schutter: Computers and Structures. Vol. 80 (1992), p. (2035).

[2] B.Y. Wang, G. B, W and S.P. Huang: Water Resources and Hydropower Engineering. Vol. 4 (1994), p.12. (In Chinese).

[3] J.H. Hattel and J. Thorborg: Applied Mathematical Modeling. Vol. 27 (2003), p.1.

[4] H. Kawaraba, T. Kanokogi and T. Tanabe: Trans JCI. Vol. 8 (1986), p.125.

[5] Z.H. Wang, Y.M. Zhu and S.P. Yu: Journal of Tianjin University. Vol. 41 (2008), p.476 (In Chinese).

[6] P. Xu, Y.M. Zhu and B. Y Ding: Journal of Hydraulic Engineering. Vol. 40 (2009), p.969 (In Chinese).

[7] P. Xu and Y.M. Zhu: Advances in Science and Technology of Water Resource. Vol. 27 (2007), p.56 (In Chinese).

[8] Z.H. Wang, Y. M, Zhu and S. P Yu: Xian Univ. of Arch. And Tech. Vol. 39 (2007), p.773 (In Chinese).

[9] B.F. Zhu: Thermal stresses and Temperature Control of Mass Concrete (CEP Press, China 1998).

[10] Y.M. Zhu, Z.Q. Xu and J.R. He: Journal of Yangtze River Scientific Research Institute. Vol. 20 (2003), p.19 (In Chinese).
