Preparation and Structural Characterization of CMC/MMT Nanocomposite

Chuan Xin Zhai; Yan Li; Xiang Dong Ma; Shi Zhong Wei; Liu Jie Xu

doi:10.4028/www.scientific.net/AMR.177.606

Paper Titles

Temperature Prediction in the System K₂O-CaO-Al₂O₃-SiO₂-P₂O₅
p.590

A Method for the Determination of Ceramic Paste Plasticity
p.594

Improved Settling Height Method for Characterizing the Stability of Suspension
p.598

Investigation of Inorganic-Intercalated Vermiculite by X-Ray Diffraction
p.602

Preparation and Structural Characterization of CMC/MMT Nanocomposite
p.606

Identification of Natural Tourmaline and Similar Gems by Diffuse Reflection Fourier Transform Middle Infrared Spectrum
p.610

Nanoindentation Characterization of Calcium-Silicate-Hydrate with Different Curing Conditions
p.613

Thermal Decomposition of Dolomite
p.617

Contribution of Green Jadeite-Jade’s Chroma Difference Based on CIE 1976 L*a*b* Uniform Color Space
p.620

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 177Preparation and Structural Characterization of...

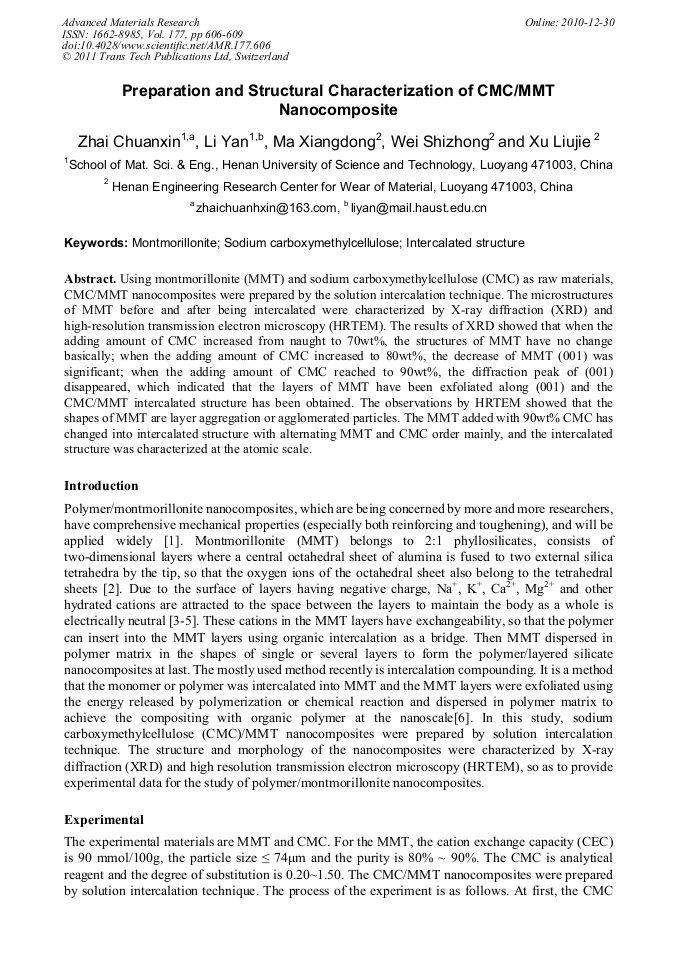

Preparation and Structural Characterization of CMC/MMT Nanocomposite

Abstract:

Using montmorillonite (MMT) and sodium carboxymethylcellulose (CMC) as raw materials, CMC/MMT nanocomposites were prepared by the solution intercalation technique. The microstructures of MMT before and after being intercalated were characterized by X-ray diffraction (XRD) and high-resolution transmission electron microscopy (HRTEM). The results of XRD showed that when the adding amount of CMC increased from naught to 70wt%, the structures of MMT have no change basically; when the adding amount of CMC increased to 80wt%, the decrease of MMT (001) was significant; when the adding amount of CMC reached to 90wt%, the diffraction peak of (001) disappeared, which indicated that the layers of MMT have been exfoliated along (001) and the CMC/MMT intercalated structure has been obtained. The observations by HRTEM showed that the shapes of MMT are layer aggregation or agglomerated particles. The MMT added with 90wt% CMC has changed into intercalated structure with alternating MMT and CMC order mainly, and the intercalated structure was characterized at the atomic scale.
