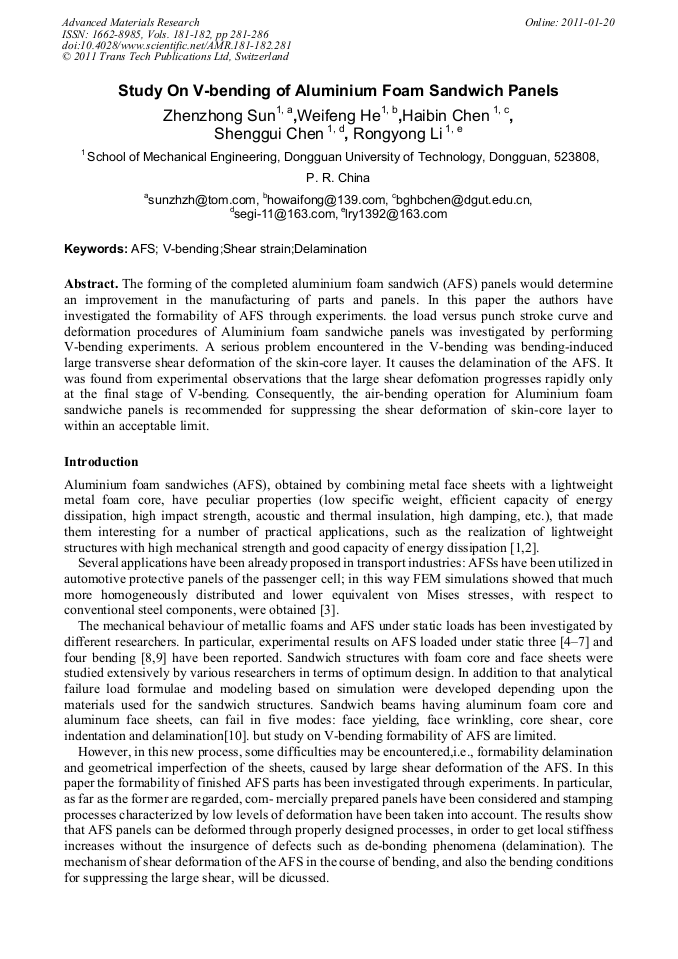

Study on V-Bending of Aluminium Foam Sandwich Panels

Abstract:

The forming of the completed aluminium foam sandwich (AFS) panels would determine an improvement in the manufacturing of parts and panels. In this paper the authors have investigated the formability of AFS through experiments. the load versus punch stroke curve and deformation procedures of Aluminium foam sandwiche panels was investigated by performing V-bending experiments. A serious problem encountered in the V-bending was bending-induced large transverse shear deformation of the skin-core layer. It causes the delamination of the AFS. It was found from experimental observations that the large shear defomation progresses rapidly only at the final stage of V-bending. Consequently, the air-bending operation for Aluminium foam sandwiche panels is recommended for suppressing the shear deformation of skin-core layer to within an acceptable limit.

• Periodical: Advanced Materials Research (Volumes 181-182)
• Pages: 281-286
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.181-182.281
• Online since: January 2011
• Authors: Zhen Zhong Sun, Wei Feng He, Hai Bin Chen, Sheng Gui Chen, Rong Yong Li
• Keywords: AFS, Delamination, Shear Strain, V-Bending

References

[1] Ashby MF, Evans A, Fleck NA, Gibson LJ, Hutchinson JW, Wadley HNG, editors. Metal foams: a design guide. London: Butterworth Heinmann; (2000).

DOI: 10.1016/b978-075067219-1/50001-5

[2] Gibson LJ, Ashby MF. Cellular solids, 2nd ed. Cambridge: Cambridge University Press; (1997).

[3] H.J. Emmelmann, W. Bunsmann, W. Seeliger, J. Baumeister, Complex shaped aluminium sandwich panel with aluminium foam inside, in: Proceedings of the International Conference on IBEC 97, (1997).

[4] Bart-Smith H, Hutchinson JW, Evans AG. Measurement and analysis of the structural performance of cellular metal sandwich construction. Int J Mech Sci 2001; 43: 1945–63.

DOI: 10.1016/s0020-7403(00)00070-9

[5] Kesler O, Gibson LJ. Size effects in metallic foam core sandwich beams. Mater Sci Eng 2002; A326: 228–34.

DOI: 10.1016/s0921-5093(01)01487-3

[6] McCormack TM, Miller R, Kesler O, Gibson LJ. Failure of sandwich beams with metallic foam cores. Int J Solid Struct 2001; 38: 4901–20.

DOI: 10.1016/s0020-7683(00)00327-9

[7] V. Crupi, R. Montanini. Aluminium foam sandwiches collapse modes under static and dynamic three-point bending. International Journal of Impact Engineering 34 (2007) 509–521.

DOI: 10.1016/j.ijimpeng.2005.10.001

[8] Bart-Smith H, Hutchinson JW, Fleck NA, Evans AG. Influence of imperfections on the performance of metal foam core sandwich panels. Int J Solid Struct 2002; 39: 4999–5012.

DOI: 10.1016/s0020-7683(02)00250-0

[9] Chen C, Harte A-M, Fleck NA. The plastic collapse of sandwich beams with a metallic foam core. Int J Mech Sci 2001; 43: 1483–506.

DOI: 10.1016/s0020-7403(00)00069-2

[10] Kapil Mohan, Yip Tick Hon, Sridhar Idapalapati, Hong Pheow Seow. Failure of sandwich beams consisting of alumina face sheet and aluminum foam core in bending. Materials Science and Engineering A 409 (2005) 292–301.

DOI: 10.1016/j.msea.2005.06.070
