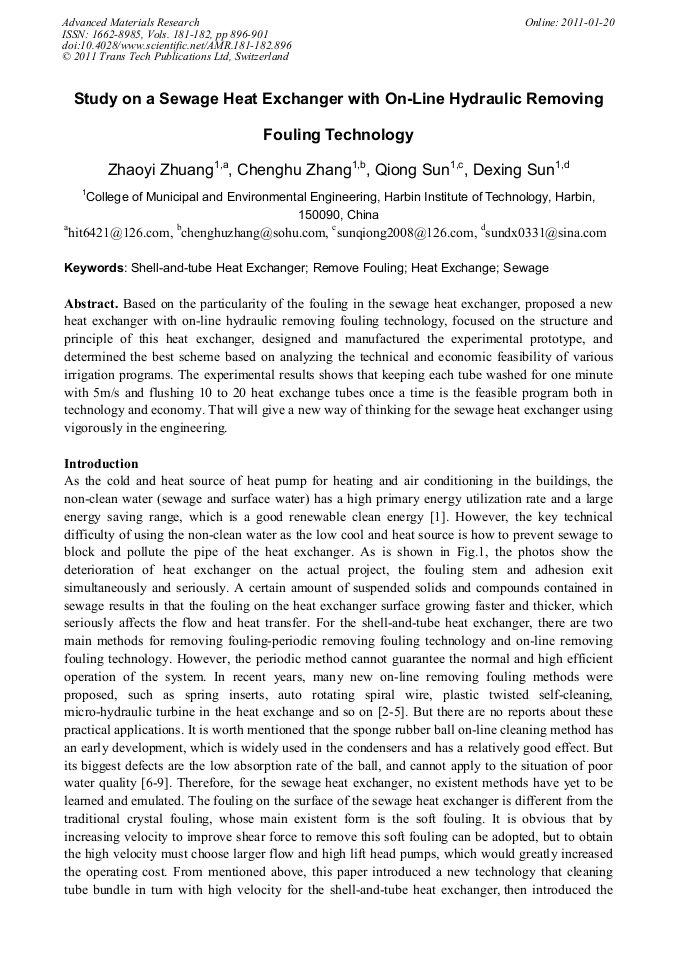

Study on a Sewage Heat Exchanger with On-Line Hydraulic Removing Fouling Technology

Abstract:

Based on the particularity of the fouling in the sewage heat exchanger, proposed a new heat exchanger with on-line hydraulic removing fouling technology, focused on the structure and principle of this heat exchanger, designed and manufactured the experimental prototype, and determined the best scheme based on analyzing the technical and economic feasibility of various irrigation programs. The experimental results shows that keeping each tube washed for one minute with 5m/s and flushing 10 to 20 heat exchange tubes once a time is the feasible program both in technology and economy. That will give a new way of thinking for the sewage heat exchanger using vigorously in the engineering.

• Periodical: Advanced Materials Research (Volumes 181-182)
• Pages: 896-901
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.181-182.896
• Online since: January 2011
• Authors: Zhao Yi Zhuang, Cheng Hu Zhang, Qiong Sun, De Xing Sun
• Keywords: Heat Exchange, Remove Fouling, Sewage, Shell Heat Exchanger, Tube Heat Exchanger

References

[1] R. Wu. Evaluation on energy-saving and environmental protection of urban sewage source heat pump system. China Water & Wastewater, 21, 12 (2005), p: 103-106.

[2] Q. Wang. On-line fouling cleaning with inserted spring element and technology of enhancing heat transfer. Petroleum Refinery Engineering, 24, 3(1994), p: 57-62.

[3] X. Yu. The experiment research on heat transfer technology of autorotation helix line. Chemical Equipment Technology. 18, 5 (1997), p: 4-8.

[4] X. Yu. The self-cleaning technique by using the self rotating plastic spiral in shell tube water coolers. Natural Science Journal of Xiangtan University, 20, 3 (1998), p: 3-4.

[5] R. Lin. Study on the miniature hydraulic turbine in the heat exchanger tube. Chinese Journal of Mechanical Engineering, 37, 7 (2001), p: 41-43.

DOI: 10.3901/jme.2001.07.041

[6] D. Liu. Research and industrial application of cooling exchanger rubber ball online cleaning technology. Petro-Chemical Equipment. 35, 1 (2006), p: 64-67.

[7] C. Yao. The existing problem and countermcasure of rubber ball cleaning device for power plant in Baotou. Inner Mongolia Petrochemical Industry. 4, (2006), pp: 62-63.

[8] Z. Yang. Discussions on technical improvement of rubber ball cleaning device of condenser for power plant. Turbine Technology. 48, 6 (2006), p: 453-455.

[9] L. Zhang. Debugging and perfection of rubber ball cleaning system. East China Electric Power. 33, 2 (2005), p: 60-62.
