Effects of TiO₂ on the Viscocity and Solidification Temperature of Mold Fluxes for the Stainless Steel

Abstract:

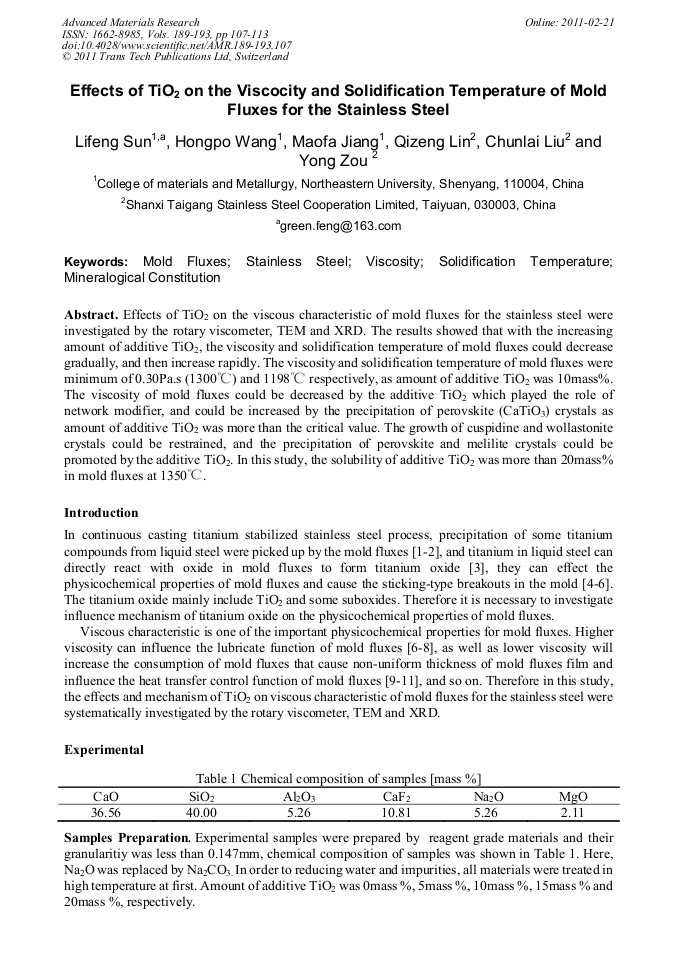

Effects of TiO₂ on the viscous characteristic of mold fluxes for the stainless steel were investigated by the rotary viscometer, TEM and XRD. The results showed that with the increasing amount of additive TiO₂, the viscosity and solidification temperature of mold fluxes could decrease gradually, and then increase rapidly. The viscosity and solidification temperature of mold fluxes were minimum of 0.30Pa.s (1300°С ) and 1198°С respectively, as amount of additive TiO₂ was 10mass%. The viscosity of mold fluxes could be decreased by the additive TiO₂ which played the role of network modifier, and could be increased by the precipitation of perovskite (CaTiO₃) crystals as amount of additive TiO₂ was more than the critical value. The growth of cuspidine and wollastonite crystals could be restrained, and the precipitation of perovskite and melilite crystals could be promoted by the additive TiO₂. In this study, the solubility of additive TiO₂ was more than 20mass% in mold fluxes at 1350°С .

• Periodical: Advanced Materials Research (Volumes 189-193)
• Pages: 107-113
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.189-193.107
• Online since: February 2011
• Authors: Li Feng Sun, Hong Po Wang, Mao Fa Jiang, Qi Zeng Lin, Chun Lai Liu, Yong Zou
• Keywords: Mineralogical Constitution, Mold Flux, Solidification Temperature, Stainless Steel (SS), Viscosity

References

[1] G. Okuyama, K. Yamaguchi and S. Takeuchi: ISIJ International, Vol. 2000(40), p.121.

[2] S. Wang, G. Li and T. Lou: ISIJ International, Vol. 39(1999), p.1116.

[3] S. McKay, N. S. Hunter and A. S. Normanton: ISIJ International, Vol. 29(2002), p.185.

[4] C. A. Pinheiro, I. V. Samarasekera and J. K. Brimacombe: Iron and Steel Maker, Vol. 22(1995), pp.45-47.

[5] J. Chi, Y. Gan: Mold Fluxes (NEU Press, Shenyang 1993).

[6] T. Mukongo, P. C. Pistorius and A. M. Garbers-Graig: ISIJ International, Vol. 31(2004), p.135.

[7] H. Zheng, W Chen and Hong Chen: Special Steel, Vol. 25(2004), p.50.

[8] D. L. Micheel and J. R. Casimir: Metallurgical Transactions, Vol. 12(1981), p.287.

[9] A. Wan, L. Zhu and S. Wang: Steelmaking, Vol. 16(2000), p.21.

[10] J. A. Kromhout, V. Ludlow, S. McKay: ISIJ International, Vol. 29(2002), p.191.

[11] C. Liu, Y. Zhu and M. Jiang: Reseach on Iron and Steel, Vol. 116(2000), p.13.

[12] D. Rao: Silicate Physical Chemistry (Metallurgical Industry Press, Beijing 1996).

[13] Northwest light industrial college: Glass Technology (Light Industrial Press, Beijing 1991).

[14] E. Martin, H. B. Bell: Trans Inst Min Met, Vol. 83(1974), p.193.

[15] H. A. Fine, S. Arac: Ironmaking and Steelmaking, Vol. 7(1980), p.160.

[16] I. D. Sommerville: Can Metall Quart, Vol. 21(1982), p.145.

[17] B. Xie: Study on Related Basic Theories of Contunuous Casting Mold Fluxes and Application in Industry [D]. Chongqing: Chongqing University, 2004: 47-48.

[18] VDEH: Slag Atlas (Germany, 1995).

[19] G. Shao: Silicate Petrography (Wuhan Industry University Press, Wuhan 2004).
