Study on Electron Beam Alloying Micro-Structure and Wear Performance of 3Cr2W8V

Yuan Fang Chen; Chao Han; Kang Chen; Hong Bin Xu; Chun Huan Wang

doi:10.4028/www.scientific.net/AMR.189-193.1316

Paper Titles

Design of Scanning Micro-Arc Oxidation Forming Ceramic Coatings on 2024 Aluminium Alloy
p.1296

Research on Surface Metallization of Carbon Fiber Based on Electroless Plating
p.1301

The Design of CNC System on the Electron Beam Welder
p.1307

Tribology of Plasma Sprayed Al₂O₃-13%TiO₂ on AZ91D Magnesium Alloy
p.1312

Study on Electron Beam Alloying Micro-Structure and Wear Performance of 3Cr2W8V
p.1316

Studies on Mechanical Properties of Thin-Walled MHS Structure
p.1321

Study on the Prediction of Surface Roughness of ZTA Ceramics under Ultrasonic Assisted Grinding
p.1325

Study on Milling Gray Cast Iron Using PCBN Indexable Face Milling Tools
p.1329

Experimental Research on the Sound Insulation Property of Lightweight Composite Paper Honeycomb Core Wallboard
p.1334

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 189-193Study on Electron Beam Alloying Micro-Structure...

Study on Electron Beam Alloying Micro-Structure and Wear Performance of 3Cr2W8V

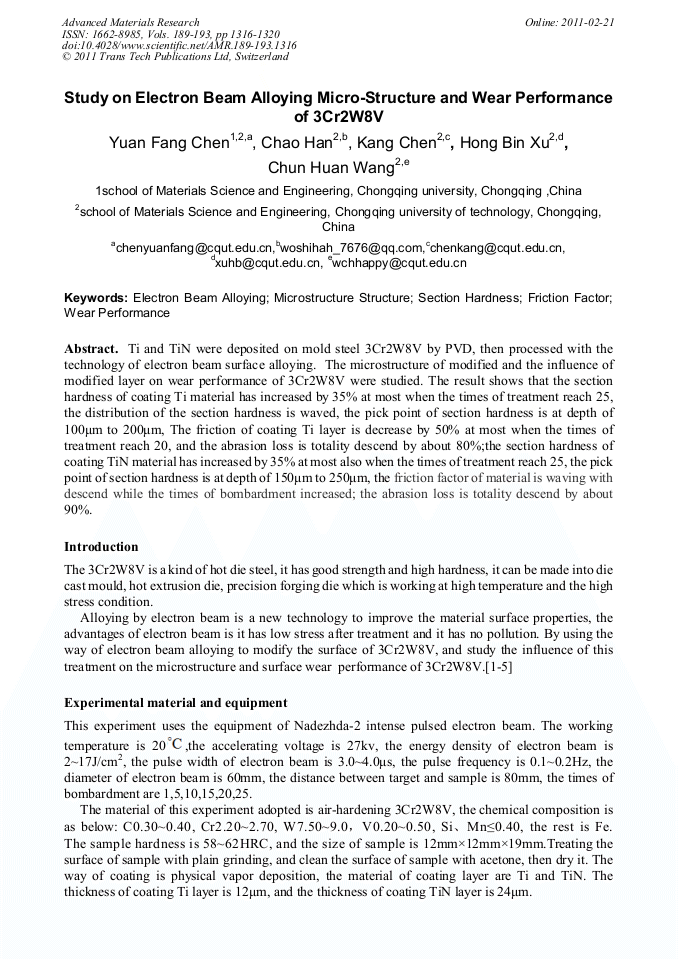

Abstract:

Ti and TiN were deposited on mold steel 3Cr2W8V by PVD, then processed with the technology of electron beam surface alloying. The microstructure of modified and the influence of modified layer on wear performance of 3Cr2W8V were studied. The result shows that the section hardness of coating Ti material has increased by 35% at most when the times of treatment reach 25, the distribution of the section hardness is waved, the pick point of section hardness is at depth of 100μm to 200μm, The friction of coating Ti layer is decrease by 50% at most when the times of treatment reach 20, and the abrasion loss is totality descend by about 80%;the section hardness of coating TiN material has increased by 35% at most also when the times of treatment reach 25, the pick point of section hardness is at depth of 150μm to 250μm, the friction factor of material is waving with descend while the times of bombardment increased; the abrasion loss is totality descend by about 90%.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 189-193)

Pages:

1316-1320

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.189-193.1316

Citation:

Cite this paper

Online since:

February 2011

Authors:

Yuan Fang Chen, Chao Han, Kang Chen, Hong Bin Xu, Chun Huan Wang

Keywords:

Electron Beam Alloying, Friction Factor, Microstructure Structure, Section Hardness, Wear Performance

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] A. Mitchell: Materials Science and Engineering A Vol. 263 (1999), p.217.

Google Scholar

[2] Shengzhi Hao, Pingsheng Wu and Xiangdong Zhang: Heat Treatment of Metals Vol. 33 (2008), p.77 (In Chinese).

Google Scholar

[3] Hui Zou, Qingfeng Guan and Qingyu Zhang: Journal of JiLin University (Engineering and Technology Edition) Vol. 34 (2004), p.127(In Chinese).

Google Scholar

[4] Chuanshun Hu and Xiaofeng Chen: Heat Treatment of Metals Vol. (3) (2000) p.11(In Chinese).

Google Scholar

[5] Binshi Xu and Shaohua Zhu: Surface Engineering of Material (Harbin Institute of Technology Press, Harbin 2005)(In Chinese).

Google Scholar

[6] Yang Xian: Research on high current pulsed electron beam modification of release property, master's dissertation of Chongqing university of technology. Chongqing, China. 2010. 6. (In Chinese).

Google Scholar

[7] V. Engelko and G. Mueller: Vacuum Vol. 62 (2001), p.97.

Google Scholar

[8] Jun He, Wei Chen and Bin Yu: Powder Metallurgy Industry Vol. 19 (2009), p.48(In Chinese).

Google Scholar

[9] J. Lee, K. Euh, J.C. Oh and S. Lee: Materials Science and Engineering A Vol. 323 (2002), p.251.

Google Scholar
