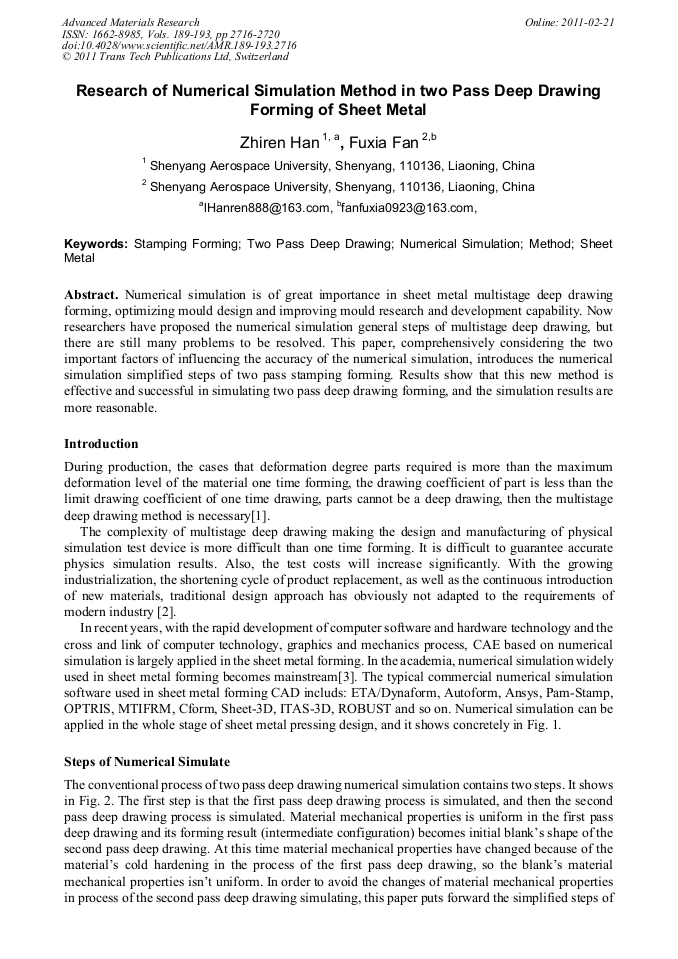

Research of Numerical Simulation Method in Two Pass Deep Drawing Forming of Sheet Metal

Abstract:

Numerical simulation is of great importance in sheet metal multistage deep drawing forming, optimizing mould design and improving mould research and development capability. Now researchers have proposed the numerical simulation general steps of multistage deep drawing, but there are still many problems to be resolved. This paper, comprehensively considering the two important factors of influencing the accuracy of the numerical simulation, introduces the numerical simulation simplified steps of two pass stamping forming. Results show that this new method is effective and successful in simulating two pass deep drawing forming, and the simulation results are more reasonable.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 189-193)

Pages:

2716-2720

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.189-193.2716

Citation:

Cite this paper

Online since:

February 2011

Authors:

Zhi Ren Han, Fu Xia Fan

Keywords:

Method, Numerical Simulation, Sheet Metal, Stamping Forming, Two Pass Deep Drawing
