Effect of Geometry Parameters on Cross-Sectional Distortion of Thin-Walled Rectangular Tube in Rotary-Draw Bending Process

Abstract:

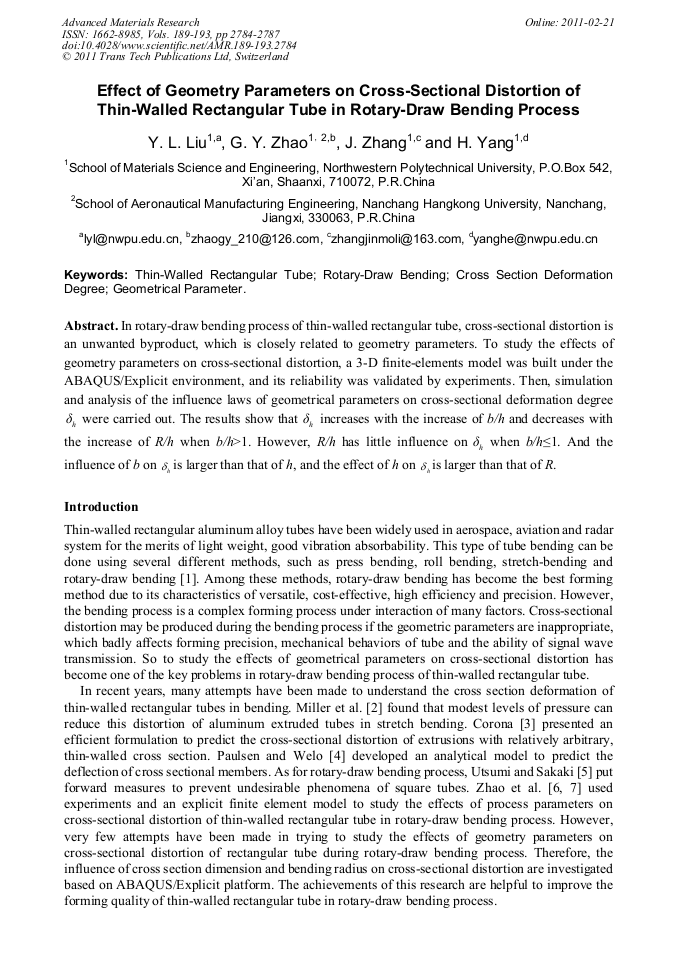

Article Preview

In rotary-draw bending process of thin-walled rectangular tube, cross-sectional distortion is an unwanted byproduct, which is closely related to geometry parameters. To study the effects of geometry parameters on cross-sectional distortion, a 3-D finite-elements model was built under the ABAQUS/Explicit environment, and its reliability was validated by experiments. Then, simulation and analysis of the influence laws of geometrical parameters on cross-sectional deformation degree were carried out. The results show that increases with the increase of b/h and decreases with the increase of R/h when b/h>1. However, R/h has little influence on δh when b/h≤1. And the influence of b on δh is larger than that of h, and the effect of h on δh is larger than that of R.

Info:

Periodical:

Advanced Materials Research (Volumes 189-193)

Edited by:

Zhengyi Jiang, Shanqing Li, Jianmin Zeng, Xiaoping Liao and Daoguo Yang

Pages:

2784-2787

DOI:

10.4028/www.scientific.net/AMR.189-193.2784

Citation:

Y. L. Liu et al., "Effect of Geometry Parameters on Cross-Sectional Distortion of Thin-Walled Rectangular Tube in Rotary-Draw Bending Process", Advanced Materials Research, Vols. 189-193, pp. 2784-2787, 2011

Online since:

February 2011

Export:

Price:

$35.00

[1] H. Lee, C. J. V. Tyne, D. Field: J. Mater. Process. Technol. Vol. 168(2005), p.327.

[2] J.E. Miller, S. Kyriakides: Int. J. Mech. Sci. Vol. 45(2003), p.115.

[3] E. Corona: Int. J. Mech. Sci. Vol. 46(2004), p.433.

[4] F. Paulsen, T. Welo: Int. J. Mech. Sci. Vol. 43(2001), p.131.

[5] N. Utsumi and S. Sakaki: J. Mater. Process. Technol. Vol. 123 (2002), p.264.

[6] G.Y. Zhao, Y.L. Liu, H. Yang: Trans. Nonferrous Met. Soc. China. Vol. 20(2010), p.484.

[7] G.Y. Zhao, Y.L. Liu, H. Yang: Mater. Sci. Eng. A Vol. 499(2009), p.257.

[8] H. Xu. Mechanical design handbook, first ed. (Mechanical Industry Press, Beijing 1991) (in chinese).
