A New Type Multi-Mode Linear Ultrasonic Motor

Abstract:

A prototype for multi-mode linear ultrasonic motor has been proposed and designed. It is designed using a combination of the first longitudinal and the first bending mode. The piezoelectric ceramics convert energy using the longitudinal d33 effect which allows an improved reliability, large vibration amplitudes and excellent piezoelectric coupling. The normal direction motion of the driving element is excited by the first longitudinal mode. The tangential direction motion of the driving element is excited by the first bending mode. The resulting displacement of the driving element is transmitted by the frictional force between the vibrator and the rail in a linear motion. The analysis on the modals of the composite vibrator by using the ANSYS finite element software has been presented in this paper. Finally, the vibrator structure of the motor and the motor's own structures are designed. The basic design is discussed and simulations are compared with the experimental results, the results show that the motor characteristics can be optimized for a particular task by choosing the appropriate operating parameters such as exciting voltage, exciting frequency and normal force.

You might also be interested in these eBooks

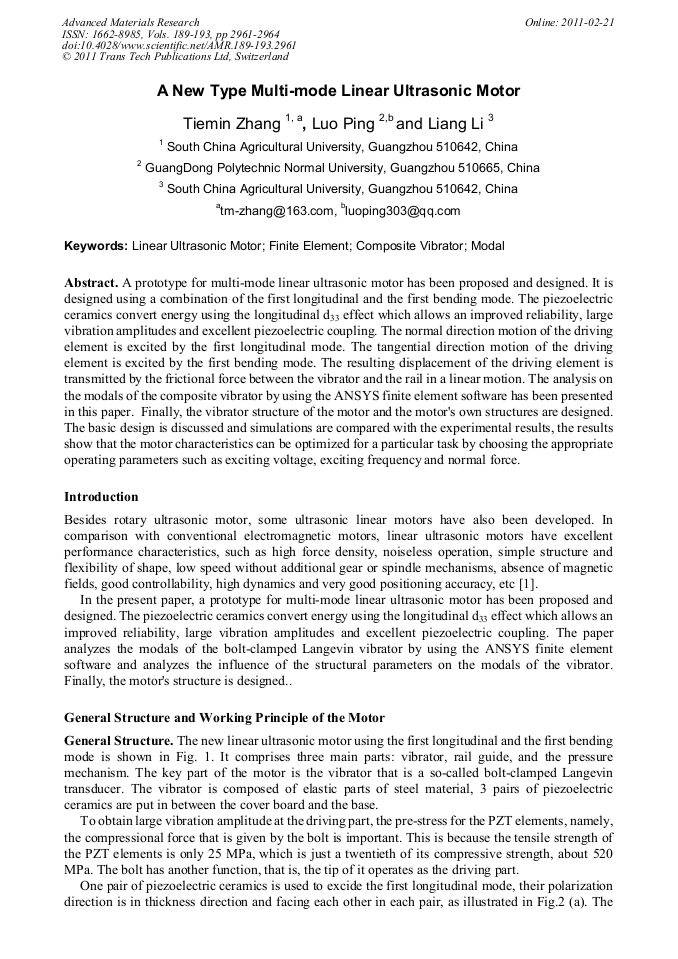

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 189-193)

Pages:

2961-2964

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.189-193.2961

Citation:

Cite this paper

Online since:

February 2011

Authors:

Tie Min Zhang, Luo Ping, Liang Li

Keywords:

Composite Vibrator, Finite Element, Linear Ultrasonic Motor, Modal

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Zhang Tiemin, Liu Luoshi, Liang Liying. Finite Element Analysis on Vibration Modes for a Linear Ultrasonic Motor Using the Compound Longitudinal and bending Vibration Modes. China Mechanical Engineering, 2006, 17(3): 251～254 (in Chinese).

Google Scholar

[2] Cheol-Ho YUN. A High Power Ultrasonic Linear Motor Using a Longitudinal and Bending Hybrid Bolt-Clamped Langevin Type Transducer. Jpn. J. Appl. Phys, 2001, 40：773～3776.

DOI: 10.1143/jjap.40.3773

Google Scholar

[3] T. Hemsel, M. Mracek, J. Twiefel, P. Vasiljev. Piezoelectric linear motor concepts based on coupling of longitudinal vibrations. Ultrasonics, 44(2006) , 591～596.

DOI: 10.1016/j.ultras.2006.05.056

Google Scholar
