Efficiency-Reinforcement Design of Hydraulic Reciprocating Sealing Driven by Ideal Solution

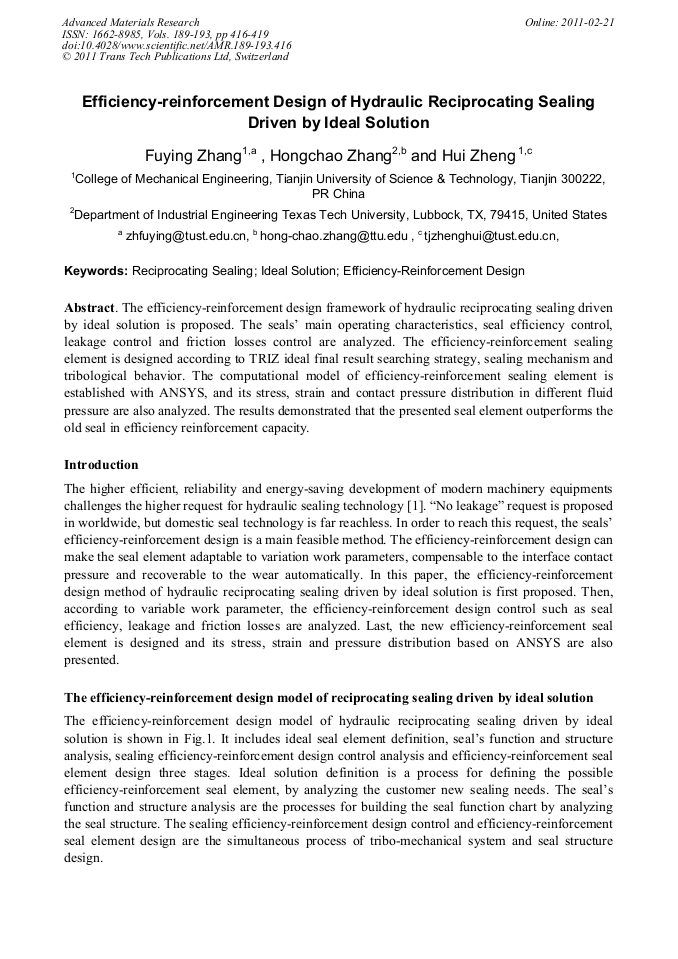

Article Preview

The efficiency-reinforcement design framework of hydraulic reciprocating sealing driven by ideal solution is proposed. The seals’ main operating characteristics, seal efficiency control, leakage control and friction losses control are analyzed. The efficiency-reinforcement sealing element is designed according to TRIZ ideal final result searching strategy, sealing mechanism and tribological behavior. The computational model of efficiency-reinforcement sealing element is established with ANSYS, and its stress, strain and contact pressure distribution in different fluid pressure are also analyzed. The results demonstrated that the presented seal element outperforms the old seal in efficiency reinforcement capacity.



Advanced Materials Research (Volumes 189-193)

Edited by:

Zhengyi Jiang, Shanqing Li, Jianmin Zeng, Xiaoping Liao and Daoguo Yang




F. Y. Zhang et al., "Efficiency-Reinforcement Design of Hydraulic Reciprocating Sealing Driven by Ideal Solution", Advanced Materials Research, Vols. 189-193, pp. 416-419, 2011

Online since:

February 2011




[1] Information on http: /cn. china. cn/article.

[2] Darrell Mann, Hands-on Systematic Innovation (CREAX Press, April 2002).

[3] Heinzk, Muller, Bernards. Nau, translated by Cheng Chuanqing: Fluid Sealing Technology-principle and applications (China Machine Press, Peking, 2002).

[4] SandorBisztray Balku : Periodica Polytechnica Ser. Mech. Eng. Vol. 43 (1999), No. 1, pp.63-80.

[5] Nikas, George K., Sayles, Richard S: Tribology International Vol. 39 (2006), pp.921-936.

[6] Liu Xijuan, Liu Chengzong and Lin Junyi: China Mechanical Engineering(Chinese)Vol. 12 (11)(2001), pp.1211-1213.
