Effects of Ultrasonic Deep Rolling on Fatigue Performance of Pre-Corroded 7A52 Aluminum Alloy

Xiong Lin Ye; You Li Zhu; Dong Hu Zhang

doi:10.4028/www.scientific.net/AMR.189-193.897

Paper Titles

Observation and Removal of Atmospheric Micro-Contaminants on SUS304 Steel
p.876

The Real-Time Monitoring Tool States Based on Wavelet Analysis
p.881

Study on the Acquisition Method of a Digital Model for Oral Cavity Teeth Based on Point Cloud
p.887

Growth Process and Corrosion Resistance of Ceramic Coatings of Micro-Arc Oxidation on Mg-Nd Magnesium Alloys
p.891

Effects of Ultrasonic Deep Rolling on Fatigue Performance of Pre-Corroded 7A52 Aluminum Alloy
p.897

CrN Films Deposited by Middle Frequency Magnetron Sputtering
p.901

Low Cost Vibrometer Utilizing Laser Diode Self-Mixing with Sound Card Controlled by LabVIEW
p.906

Effect of Saccharin Addition on the Electrodeposition of Nickel from a Watts-Type Electrolyte
p.911

The Micro-Mechanical Behavior of Inclusions under Tensile Load in X80 Pipeline Steel
p.915

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 189-193Effects of Ultrasonic Deep Rolling on Fatigue...

Effects of Ultrasonic Deep Rolling on Fatigue Performance of Pre-Corroded 7A52 Aluminum Alloy

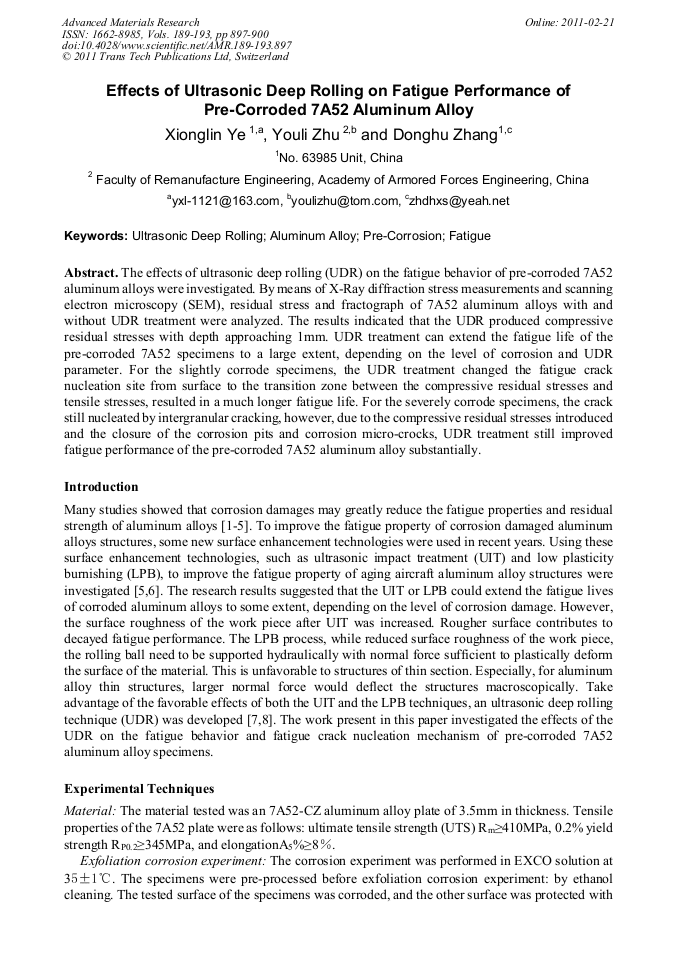

Abstract:

The effects of ultrasonic deep rolling (UDR) on the fatigue behavior of pre-corroded 7A52 aluminum alloys were investigated. By means of X-Ray diffraction stress measurements and scanning electron microscopy (SEM), residual stress and fractograph of 7A52 aluminum alloys with and without UDR treatment were analyzed. The results indicated that the UDR produced compressive residual stresses with depth approaching 1mm. UDR treatment can extend the fatigue life of the pre-corroded 7A52 specimens to a large extent, depending on the level of corrosion and UDR parameter. For the slightly corrode specimens, the UDR treatment changed the fatigue crack nucleation site from surface to the transition zone between the compressive residual stresses and tensile stresses, resulted in a much longer fatigue life. For the severely corrode specimens, the crack still nucleated by intergranular cracking, however, due to the compressive residual stresses introduced and the closure of the corrosion pits and corrosion micro-crocks, UDR treatment still improved fatigue performance of the pre-corroded 7A52 aluminum alloy substantially.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 189-193)

Pages:

897-900

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.189-193.897

Citation:

Cite this paper

Online since:

February 2011

Authors:

Xiong Lin Ye, You Li Zhu, Dong Hu Zhang

Keywords:

Aluminium Alloy, Fatigue, Pre-Corrosion, Ultrasonic Deep Rolling

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] M. Liao, G. Renaud, N.C. Bellinger: International Journal of Fatigue Vol. 29 (2007), p.677.

Google Scholar

[2] K.K. Sankaran, R. Perez, K.V. Jata: Materials Science and Engineering A297 (2001), p.223.

Google Scholar

[3] K M Gruenberg, B A Craig: International Journal of Fatigue Vol. 26(2004) , p.630.

Google Scholar

[4] E J Dolley, B Lee, R P Wei: Fatigue Frac Eng Mater Struct. Vol. 23(2000), p.555.

Google Scholar

[5] M. Liao, W.R. Chen, N.C. Bellinger: International Journal of Fatigue Vol. 30 (2008), pp.717-726.

Google Scholar

[6] Paul S. Prevéy, Low cost corrosion damage mitigation and improved fatigue performance of low plasticity burnished 7075-T6 [A]. 4th International Aircraft Corrosion Workshop［C］. New York: ASM International(2000), pp.22-25.

DOI: 10.1361/105994901770344692

Google Scholar

[7] Y.L. Zhu, K. Wang, L. Li,Y.L. Huang: J. Materials Engineering and Performance, Vol. 18(8), 2009. pp.1037-1040.

Google Scholar

[8] G.Y. Lv, Y.L. Zhu, L. Li, et al: China Surface Engineering, Vol. 20 (4), 2007, pp.38-41. (In Chinese).

Google Scholar
