The Influence of Thermomechanical Treatment on the Microstructure and Properties of a Wrought Al-Mg-Si Alloy

Article Preview

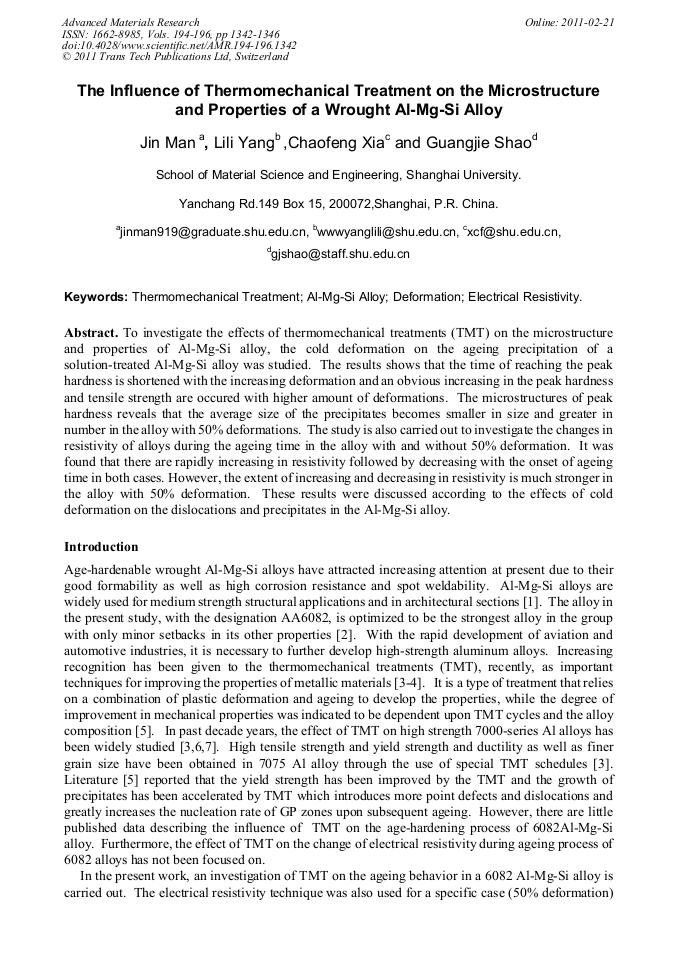

Abstract:

. To investigate the effects of thermomechanical treatments (TMT) on the microstructure and properties of Al-Mg-Si alloy, the cold deformation on the ageing precipitation of a solution-treated Al-Mg-Si alloy was studied. The results shows that the time of reaching the peak hardness is shortened with the increasing deformation and an obvious increasing in the peak hardness and tensile strength are occured with higher amount of deformations. The microstructures of peak hardness reveals that the average size of the precipitates becomes smaller in size and greater in number in the alloy with 50% deformations. The study is also carried out to investigate the changes in resistivity of alloys during the ageing time in the alloy with and without 50% deformation. It was found that there are rapidly increasing in resistivity followed by decreasing with the onset of ageing time in both cases. However, the extent of increasing and decreasing in resistivity is much stronger in the alloy with 50% deformation. These results were discussed according to the effects of cold deformation on the dislocations and precipitates in the Al-Mg-Si alloy.

You might also be interested in these eBooks

Info:

Periodical:

Advanced Materials Research (Volumes 194-196)

Pages:

1342-1346

Citation:

Online since:

February 2011

Export:

Price:

Permissions CCC:

Permissions PLS:

Сopyright:

© 2011 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

[1] Lars Lodgaard, Nils Ryum: Mater Sci Eng A, Vol. 283, ( 2000), p.144.

Google Scholar

[2] C D Marioara, S J Andersen., J. Jansen, et al: Acta Mater., Vol. 51, (2003), p.789.

Google Scholar

[3] Z.M. El-Baradie, M. El-Sayed: Journal of Materials Processing Technology, Vol. 62, (1996), p.76.

Google Scholar

[4] E. Di Russo, M. Conserva, F. Gatto, et al: Met. Trans., Vol. 4, (1973), p.1133.

Google Scholar

[5] Z.H. Ismail: Scripta Metallurgica et Materialia, Vol. 32, (1995), p.457.

Google Scholar

[6] E. Di Russo, M. Conserva and M. Buratti: Mater. Sci. Eng., Vol. 14, (1974), p.23.

Google Scholar

[7] A. Smolej,M. Gnamus,E. Slacek. Journal of Materials Processing Technology, Vol. 118, (2001), p.397.

Google Scholar

[8] A. A. Al-Aql: Mater and Design, Vol, 24, (2003), p.547.

Google Scholar

[9] S. Malinov, P. Markovsky, W Sha, et al: Journal of Alloys and Compounds, Vol. 314, (2001), p.181.

Google Scholar

[10] R. Ferragut, A. Somoza and I. Torriani: Mater Sci Eng A, Vol. 334, (2002), p.1.

Google Scholar

[11] Reza S. Yassar, David P. Field, Hasso Weil, et al: Scripta Materialia, Vol. 53, (2005), p.299.

Google Scholar

[12] Ardell AJ: Acta Metall., Vol. 20, (1972), p.601.

Google Scholar

[13] S. Nagarjuna, K. Balasubramanian, D.S. Sarma, Materials Science and Engineering A, Vol. 225, (1997), p.118.

Google Scholar

[14] Zhen L, Fei WK, Kang SB, et al: J Maer Sci., Vol. 32, (1997), p.1895.

Google Scholar

[15] Murayama M, Hono K, Saga M, et al: Mater Sci Eng A, Vol. 250, (1998), p.127.

Google Scholar

[16] Glaesser U. H and Loeffler H: Phys. stat. Sol. (b), Vol. 126. (1984), p.741.

Google Scholar
