The Effects of Particle Size-Matching Filling of Spherical Silica on the Flowability of Epoxy Molding Compounds for Large-Scale Integrated Circuits Packaging

Abstract:

By means of matching filling of five kinds of spherical silica with the particle size of 2μm, 3μm, 5μm, 10μm, 20μm respectively, the epoxy molding compounds(EMC) for integrated circuits(IC) were manufactured. Using classical particle accumulation theory, the particle distribution according with Dinger-Funk-Alfred equation was calculated by Matlab simulation software, and then the optimal particle size formulations were obtained. Adding the mixed silica according to the above optimal formulations into epoxy resin, the EMCs were manufactured by twin-roll compounding at 95~105°С . The melt viscosities of varied EMCs were measured by Rotating Rheometer. The results showed that the matching filling of different silica with different particle size can improve the flowability of EMC greatly.

You might also be interested in these eBooks

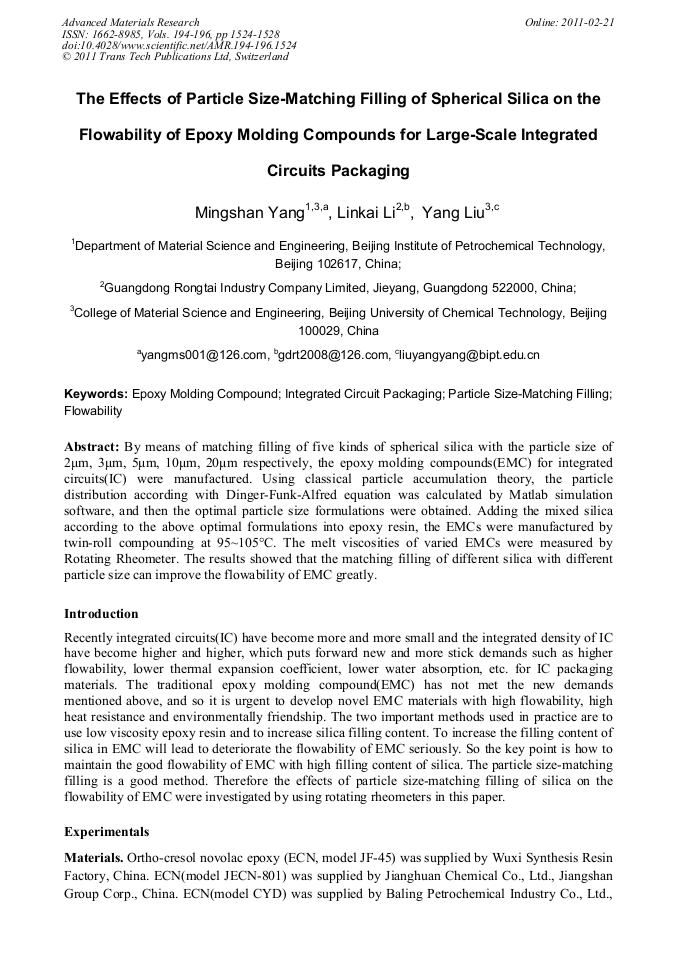

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 194-196)

Pages:

1524-1528

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.194-196.1524

Citation:

Cite this paper

Online since:

February 2011

Authors:

Ming Shan Yang, Lin Kai Li, Yang Liu

Keywords:

Epoxy Molding Compound, Flowability, Integrated Circuit Packaging, Particle Size-Matching Filling

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Y. R. Liu, M. X. Cao, C. L. Liao. The application study of accumulative theory[J]. Shanxi Construction(in Chinese), Vol. 33(2007), pp.165-166.

Google Scholar

[2] Y. Liu, J. Deng, M. J. Tang, et al. The development of particle size matching technology in polymer conductive composite[J]. New Chemical Materials(in Chinese), Vol. 36(2008), pp.37-39.

Google Scholar

[3] Z. E. Hou, K. C. Zhang. Optimization of grain composition in the system of packing particle[J]. Applied Mathematics A J. of Chinese Universities(in Chinese), Vol. 20(2005), pp.409-416.

Google Scholar

[4] M. S. Yang, Y. Liu, L. K. Li. Relationship of particle content and size of spherical silica with the flowability of epoxy molding compounds for large-scale integrated circuits packaging. Advanced Materials Research, Vol. 92(2010), pp.201-205.

DOI: 10.4028/www.scientific.net/amr.92.201

Google Scholar
