Fracture Analysis for Pitman Shaft of Automotive Steering Gear

Ze Jie Zhou; Xiao Ming Wang

doi:10.4028/www.scientific.net/AMR.197-198.1604

Paper Titles

Preparation and Characterization of MCM-22 Zeolite by Varying-Temperature Hydrothermal Synthesis
p.1587

The Effect of Poisson’s Ratio on the Contact Traction Distribution of a Functionally Graded Coating
p.1591

Effects of Temperature and Crack Tip Constraint on Cleavage Fracture Toughness in the Weld Thermal Simulated X80 Pipeline Steels
p.1595

Calculation Error Analysis on the Strain Fatigue Life Predication Formula of Manson-Coffinn and Damage Stain Model
p.1599

Fracture Analysis for Pitman Shaft of Automotive Steering Gear
p.1604

Interlaminar Shear Property of Z-Pins Reinforced Woven Ceramic Matrix Composites
p.1608

Finite Element Analysis of Crack Propagation and Casing Failure Process under Thermal Mechanical Coupling
p.1613

Effect of Sulphite Sediment on Hydrogen Embrittlement Susceptivity of Hot-Dip Galvanized Steel Exposed to Simulated Marine Atmosphere
p.1617

Experimental Analysis of an Instrumented Charpy Impact Using Signal Processing Approach
p.1621

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 197-198Fracture Analysis for Pitman Shaft of Automotive...

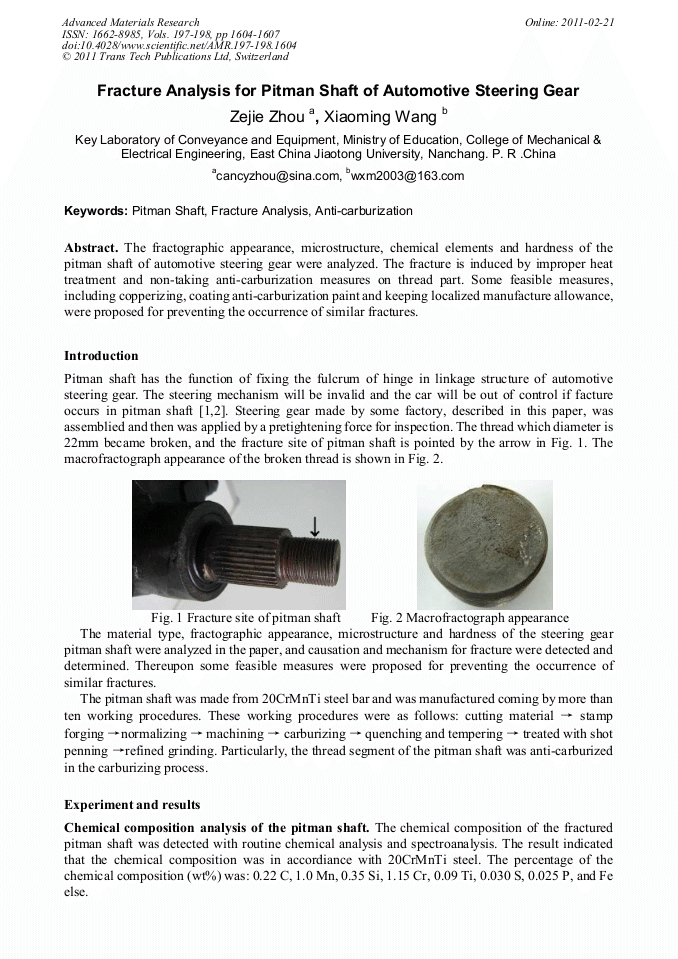

Fracture Analysis for Pitman Shaft of Automotive Steering Gear

Abstract:

The fractographic appearance, microstructure, chemical elements and hardness of the pitman shaft of automotive steering gear were analyzed. The fracture is induced by improper heat treatment and non-taking anti-carburization measures on thread part. Some feasible measures, including copperizing, coating anti-carburization paint and keeping localized manufacture allowance, were proposed for preventing the occurrence of similar fractures.
