High Temperature Deformation Mechanical Model and Processing Map of Ti-6Al-2Zr-1Mo-1V Alloy

Yao Ning Wang; Xi Cheng Zhao; Hong Zhou Ma

doi:10.4028/www.scientific.net/AMR.199-200.1988

Paper Titles

In-Process Monitoring and Prediction of Surface Roughness in CNC Turning Process
p.1958

Effect of Surface Free Energy and Electrochemical Polarization on Attachment of Sulfate Reducing Bacteria
p.1967

Light-Colored and Organosoluble Fluorinated Polyimide Derived from 1,2,3,4-Cyclobutanetrtracarboxylic Dianhydride
p.1973

Effects of Rare Earth on Electrochemical Corrosion Behavior of Graphite-Like Carbon Coatings
p.1978

Curved Layer Fused Deposition Modeling in Conductive Polymer Additive Manufacturing
p.1984

High Temperature Deformation Mechanical Model and Processing Map of Ti-6Al-2Zr-1Mo-1V Alloy
p.1988

Research on Milling Stability Using CNC Small Size Tool
p.1993

The Preparation and Application of Chitosan Derivatives for Ni Coating on ABS
p.1999

Development and Validation of Mathematical Model for Gas Transmission through Thin Film
p.2005

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 199-200High Temperature Deformation Mechanical Model and...

High Temperature Deformation Mechanical Model and Processing Map of Ti-6Al-2Zr-1Mo-1V Alloy

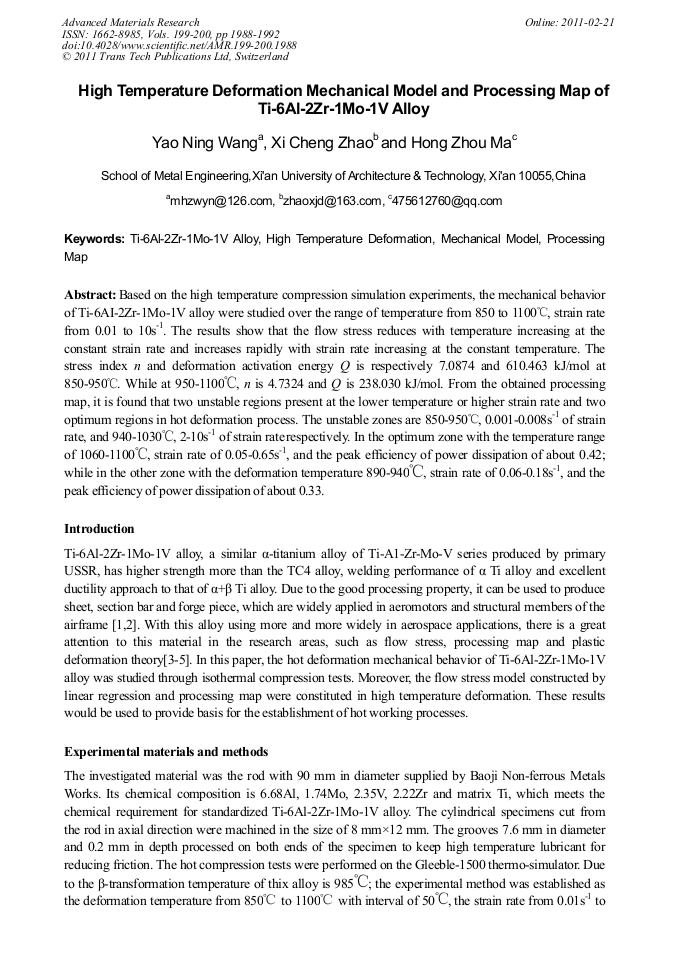

Abstract:

Based on the high temperature compression simulation experiments, the mechanical behavior of Ti-6AI-2Zr-1Mo-1V alloy were studied over the range of temperature from 850°C to 1100°C , strain rate from 0.01 to 10s^-1. The results show that the flow stress reduces with temperature increasing at the constant strain rate and increases rapidly with strain rate increasing at the constant temperature. The stress index n and deformation activation energy Q is respectively 7.0874 and 610.463 kJ/mol at 850-950°C . While at 950-1100°C , n is 4.7324 and Q is 238.030 kJ/mol. From the obtained processing map, it is found that two unstable regions present at the lower temperature or higher strain rate and two optimum regions in hot deformation process. The unstable zones are 850-950°C , 0.001-0.008s^-1 of strain rate, and 940-1030°C , 2-10s^-1 of strain rate respectively. In the optimum zone with the temperature range of 1060-1100°C , strain rate of 0.05-0.65s^-1, and the peak efficiency of power dissipation of about 0.42; while in the other zone with the deformation temperature 890-940°C , strain rate of 0.06-0.18s^-1, and the peak efficiency of power dissipation of about 0.33.
