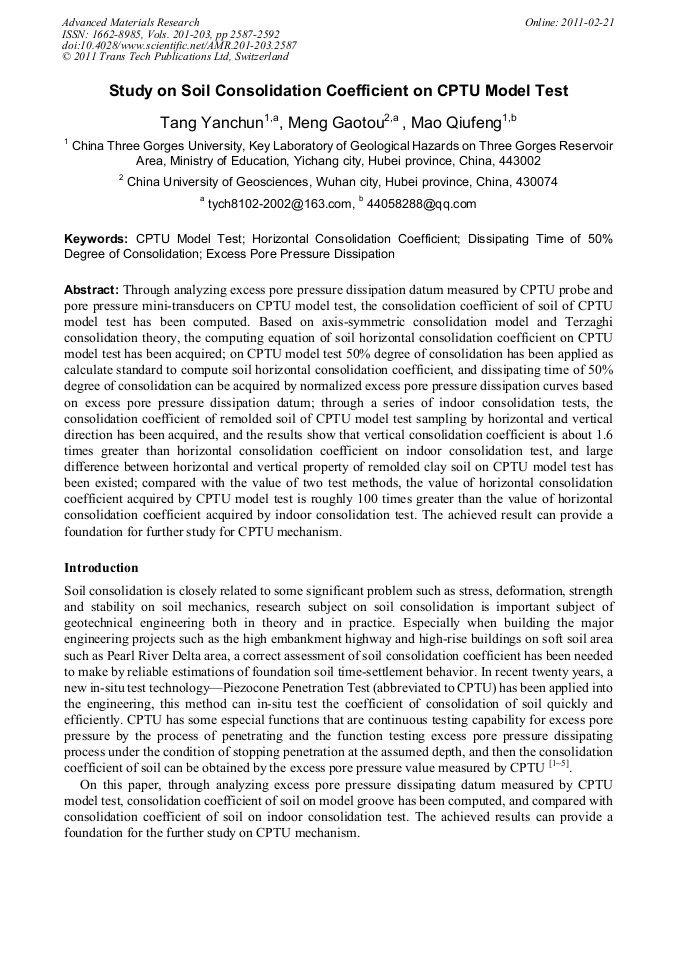

Study on Soil Consolidation Coefficient on CPTU Model Test

Abstract:

Through analyzing excess pore pressure dissipation datum measured by CPTU probe and pore pressure mini-transducers on CPTU model test, the consolidation coefficient of soil of CPTU model test has been computed. Based on axis-symmetric consolidation model and Terzaghi consolidation theory, the computing equation of soil horizontal consolidation coefficient on CPTU model test has been acquired; on CPTU model test 50% degree of consolidation has been applied as calculate standard to compute soil horizontal consolidation coefficient, and dissipating time of 50% degree of consolidation can be acquired by normalized excess pore pressure dissipation curves based on excess pore pressure dissipation datum; through a series of indoor consolidation tests, the consolidation coefficient of remolded soil of CPTU model test sampling by horizontal and vertical direction has been acquired, and the results show that vertical consolidation coefficient is about 1.6 times greater than horizontal consolidation coefficient on indoor consolidation test, and large difference between horizontal and vertical property of remolded clay soil on CPTU model test has been existed; compared with the value of two test methods, the value of horizontal consolidation coefficient acquired by CPTU model test is roughly 100 times greater than the value of horizontal consolidation coefficient acquired by indoor consolidation test. The achieved result can provide a foundation for further study for CPTU mechanism.

• Periodical: Advanced Materials Research (Volumes 201-203)
• Pages: 2587-2592
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.201-203.2587
• Online since: February 2011
• Authors: Yan Chun Tang, Gao Tou Meng, Qiu Feng Mao
• Keywords: CPTU Model Test, Dissipating Time of 50% Degree of Consolidation, Excess Pore Pressure Dissipation, Horizontal Consolidation Coefficient

References

[1] Meng Gaotou. Soil in-situ Test Mechanism, Methods and its Engineering Application[M]. Geology Press, 1997 (in Chinese).

[2] Chen Liang. Study on testing Coefficient of Consolidation Mechanism by CPTU [R]. China University of Geosciences, 2003 (in Chinese).

[3] Zhu Xiaolin, Tang Shidong. Pore-Pressure-CPT Probe's Development and its In-situ Test[J]. Engineering Investigation, 1986. 03 (in Chinese).

[4] Tang Yanchun. The Mechanism Study to Determine the Coefficient of Consolidation and Permeability of Soils by CPTU[R]. China University of Geosciences, 2004 (in Chinese).

[5] Ma Shuzhi, Tang Yanchun, Meng Gaotou et al. Piezocone Penetration Test Mechanism, Methods and its Engineering Application[M], China University of Geosciences Press, 2007 (in Chinese).
