Flow Stress Constitutive Equation of Age Hardening Cu-1.1Cr Alloy during Hot Compression Deformation

Li Zhang; Ke Xing Song; Yan Min Zhang; Qing Wang; Wei Feng Liu

doi:10.4028/www.scientific.net/AMR.213.623

Paper Titles

A New Method for BOM Modeling
p.604

Experimental Research on the Normal Absorption Coefficient of the Multilayer Material
p.608

The Optimized Design for Groove Parameters Based on Cement Pavement Materials Performance
p.613

Industrial Diversification and Regional Development Stability: Theoretical Discussion
p.618

Flow Stress Constitutive Equation of Age Hardening Cu-1.1Cr Alloy during Hot Compression Deformation
p.623

Computer-Aided Design and Fabrication of Bio-Mimetic Materials and Scaffold Micro-Structures
p.628

Study on Bonding Performance of Interlayer Materials between Old Cement Slab and Asphalt Overlay
p.633

A Multi-Dimension Configuration Method of Modular Machine Tools Based on Customer Requirements-Driven
p.638

A Method of Obtaining Gray Balance Data Based on Polynomial Regression
p.643

HomeAdvanced Materials ResearchAdvanced Materials Research Vol. 213Flow Stress Constitutive Equation of Age Hardening...

Flow Stress Constitutive Equation of Age Hardening Cu-1.1Cr Alloy during Hot Compression Deformation

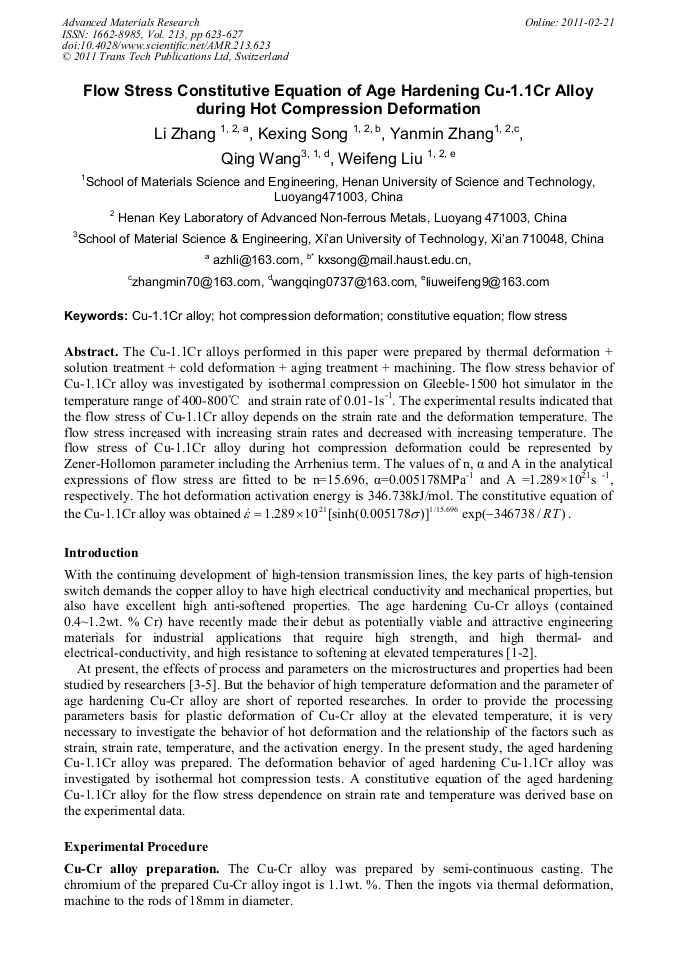

Abstract:

The Cu-1.1Cr alloys performed in this paper were prepared by thermal deformation + solution treatment + cold deformation + aging treatment + machining. The flow stress behavior of Cu-1.1Cr alloy was investigated by isothermal compression on Gleeble-1500 hot simulator in the temperature range of 400-800°C and strain rate of 0.01-1s-1. The experimental results indicated that the flow stress of Cu-1.1Cr alloy depends on the strain rate and the deformation temperature. The flow stress increased with increasing strain rates and decreased with increasing temperature. The flow stress of Cu-1.1Cr alloy during hot compression deformation could be represented by Zener-Hollomon parameter including the Arrhenius term. The values of n, α and A in the analytical expressions of flow stress are fitted to be n=15.696, α=0.005178MPa-1 and A =1.289×1021s -1, respectively. The hot deformation activation energy is 346.738kJ/mol. The constitutive equation of the Cu-1.1Cr alloy was obtained .
