Residual Life Assessment for Ferromagnetic Components Based on Metal Magnetic Memory Technology

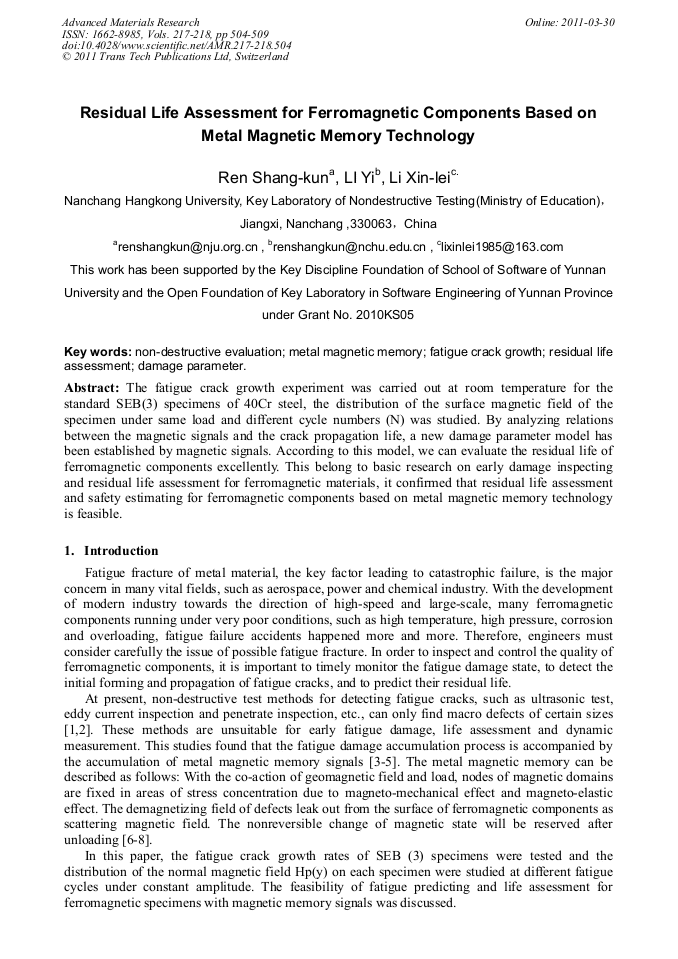

Article Preview

Abstract:

The fatigue crack growth experiment was carried out at room temperature for the standard SEB(3) specimens of 40Cr steel, the distribution of the surface magnetic field of the specimen under same load and different cycle numbers (N) was studied. By analyzing relations between the magnetic signals and the crack propagation life, a new damage parameter model has been established by magnetic signals. According to this model, we can evaluate the residual life of ferromagnetic components excellently. This belong to basic research on early damage inspecting and residual life assessment for ferromagnetic materials, it confirmed that residual life assessment and safety estimating for ferromagnetic components based on metal magnetic memory technology is feasible.

You might also be interested in these eBooks
High Performance Structures and Materials Engineering View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 217-218)

Pages:

504-509

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.217-218.504

Citation:

Cite this paper

Online since:

March 2011

Authors:

Shang Kun Ren, Yi Li, Xin Lei Li

Keywords:

Damage Parameter, Fatigue Crack Growth (FCG), Metal Magnetic Memory (MMM), Non-Destructive Evaluation (NDE), Residual Life Assessment

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2011 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] D. C. Jiles：NDT & E Int, Vol. 23(1990), p.83.

Google Scholar

[2] A. Dubov: 17th World Conference on Nondestructive Testing, 2008, Shanghai, China.

Google Scholar

[3] F. D. Backer, V. Schoss, G. Maussner: Nuclear Engineering and Design, Vol. 206(2001), p.201.

Google Scholar

[4] P. Gawroñski, A. Zhukov, J.M. Blanco: J. of Mag. and Mag. Mater., Vol. 290(2005), p.595.

Google Scholar

[5] A. Sipeky, A. Ivanyi: Physica B, Vol. 372(2006), p.177.

Google Scholar

[6] O. Stupakov: Journal of Magnetism and Magnetic Materials, Vol. 310(2007), p.57.

Google Scholar

[7] M. Roskosz, P. Gawrilenko: NDT&E International, Vol. 41(2008), 41, p.570.

Google Scholar

[8] E. Yang, L. M. Li: Journal of Magnetism and Magnetic Materials, Vol. 312(2007), p.72.

Google Scholar

[9] L. H. Dong, B. S. Xu, S. Y. Dong: International Journal of Fatigue, Vol. 30 (2008), p.599.

Google Scholar

[10] X. Chen, L. M. Li, B. Hu: Insight Vol. 48(2006), p.342.

Google Scholar

[11] J. H. Leng, M. Q. Xu, M. X. Xu: NDT & E International, Vol. 42(2009), p.410.

Google Scholar

[12] H.Y. Xing，M. Q. Xu，R. X. Wang: Key Engineering Materials, Vol. 324(2006), p.619.

Google Scholar
