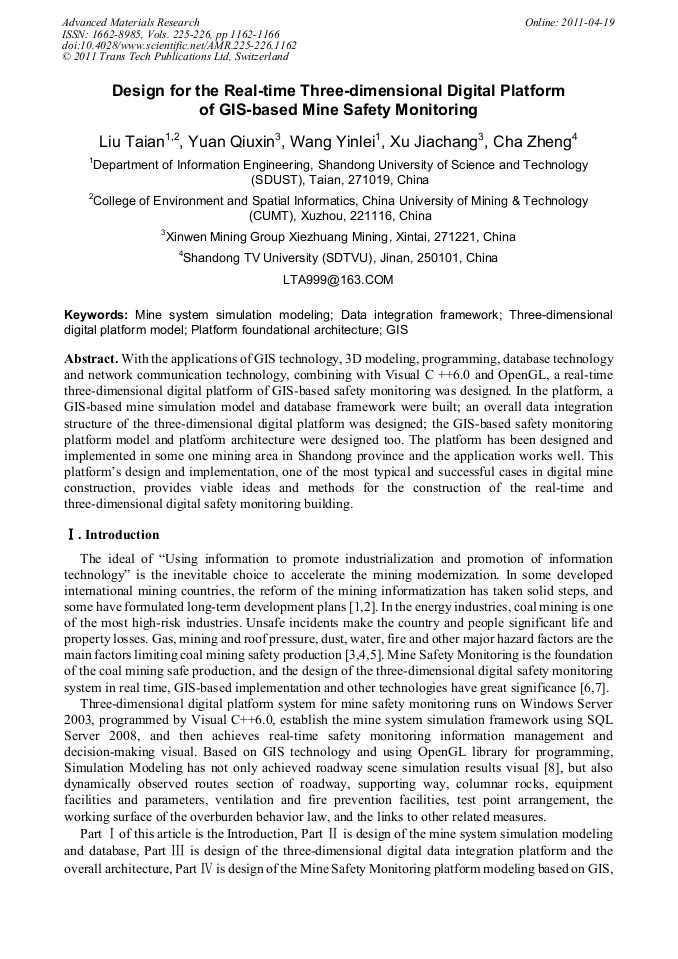

Design for the Real-Time Three-Dimensional Digital Platform of GIS-Based Mine Safety Monitoring

Abstract:

With the applications of GIS technology, 3D modeling, programming, database technology and network communication technology, combining with Visual C ++6.0 and OpenGL, a real-time three-dimensional digital platform of GIS-based safety monitoring was designed. In the platform, a GIS-based mine simulation model and database framework were built; an overall data integration structure of the three-dimensional digital platform was designed; the GIS-based safety monitoring platform model and platform architecture were designed too. The platform has been designed and implemented in some one mining area in Shandong province and the application works well. This platform’s design and implementation, one of the most typical and successful cases in digital mine construction, provides viable ideas and methods for the construction of the real-time and three-dimensional digital safety monitoring building.

• Periodical: Advanced Materials Research (Volumes 225-226)
• Pages: 1162-1166
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.225-226.1162
• Online since: April 2011
• Authors: Tai An Liu, Qiu Xin Yuan, Yin Lei Wang, Jia Chang Xu, Zheng Cha
• Keywords: Data Integration Framework, Gas Insulation Switchgear (GIS), Mine System Simulation Modeling, Platform Foundational Architecture, Three-Dimensional Digital Platform Model

References

[1] M. Kelly: Developing coal mining technology for the 21st century, Proc. Mining Sic. & Tech. Netherlands: Balkema, (1999).

[2] B. Denby, D. Schofield: Advanced computer techniques: Development for the minerals industry towards the new millennium, Proc. Mining Sic. & Tech. Netherlands: Balkema, (1999).

[3] M. G. Chen, L. Liu: Analysis on main factors effecting safety production in china's coal industry, Journal of Safety Science and Technology, 2008, (03), pp.84-87.

[4] T. A. Liu: Application research of support vector regression in coal mine ground-water-level forecasting, 2009 International Forum on Information Technology and Applications, IFITA 2009, v 2, pp.507-509.

DOI: 10.1109/ifita.2009.61

[5] G. S. Ma: Implementation of Gas Monitoring System Based on Multi-sensor Fusion Technology, Wuhan University of Technology, Wuhan City, (2010).

[6] L. X. Wu, Z. R. Yin, Y. P. Thong: Restudy on digital mine: characteristics, framework and key technologies, Journal of China Coal Society, 2003, 28(1), pp.1-7.

[7] J. M. Wu, Y. G. Wu, J. F. Wang: Study on the visualization and information processing for the coal mine safety monitoring system, Journal of China Coal Society, 2005, (01), pp.71-74.

[8] L. Zhuang: The Research and Implemention of Visualization of Digital Mine, Shandong University of Science and Technology, Taian City, (2003).

[9] W. Wu: Research in Three-Dimensional Spatial Data Model and It's applying in Digital Mine, Institute of Remote Sensing Applications Chinese Academy Of Sciences, Beijing City, (2006).

[10] S. B. Wang: Coal mine safety monitoring system integration applications, Safety in Coal Mines, 2009, (04), pp.43-46.

[11] M Li, S. J. Mao: Research on key technologies of 3D GIS for digital mine, Coal Science and Technology, 2004, (8).

[12] L. X. Wu, D. F. Chen: Developments of spatial information-based Digital Mine in China, Journal of Coal Science & Engineering, 2008, (3).
