Synthesis and Structural Morphology of Ordered Nanoporous Carbon via SBA-15 Hard Template

Bing Zhang; Zhi Xue Yu; Yong Hong Wu; Fan Yan Meng

doi:10.4028/www.scientific.net/AMR.233-235.2239

Paper Titles

Experimental and Theoretical Study on Transition Metal Ion Doped TiO₂
p.2219

Optimal Design of Mechanism Dimension for Tracked Vehicle's Tension Adjustor According to Virtual Prototype Technology
p.2223

TMF of Directionally Solidified and Single Crystal Superalloy
p.2227

Elastic and Electronic Properties of Mg₂Ca and Mg₂Y Phases
p.2231

Synthesis and Structural Morphology of Ordered Nanoporous Carbon via SBA-15 Hard Template
p.2239

Research on Reaction Mechanism of Si₃N₄ and AlF₃ in CO Atmosphere
p.2243

Fabrication of Mn₂O₃ Nanorods and their Different Paramagnetic Properties
p.2252

Research on Characterization and Chemical Composition of Baoluo Kaolin in Hainan Province
p.2258

Sonochemical Preparation of Ternary Europium Complexes Eu(DBM)₃•phen
p.2263

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 233-235Synthesis and Structural Morphology of Ordered...

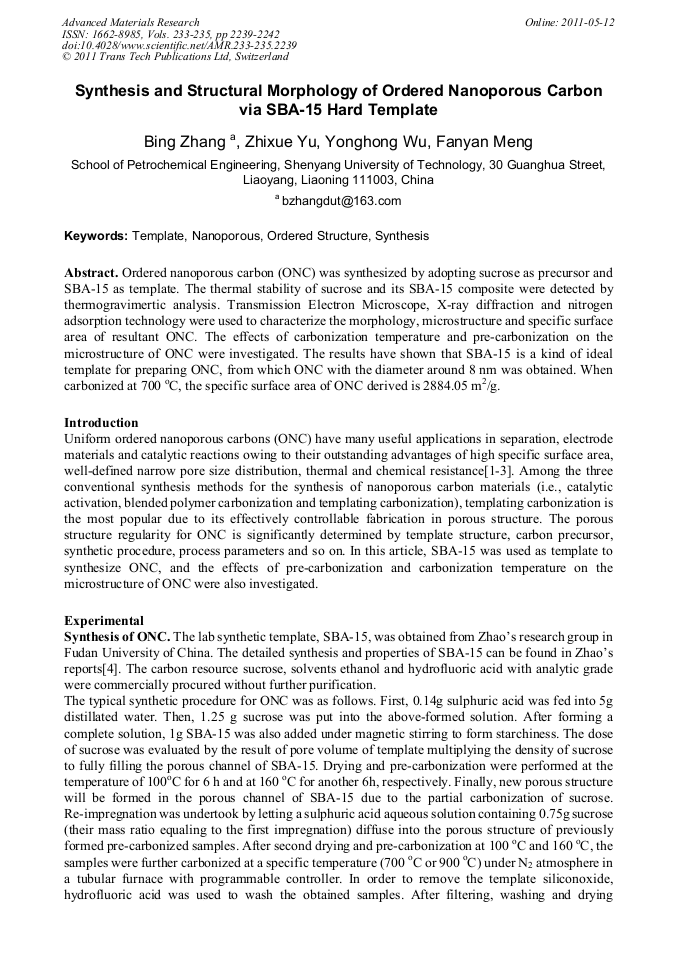

Synthesis and Structural Morphology of Ordered Nanoporous Carbon via SBA-15 Hard Template

Abstract:

Ordered nanoporous carbon (ONC) was synthesized by adopting sucrose as precursor and SBA-15 as template. The thermal stability of sucrose and its SBA-15 composite were detected by thermogravimertic analysis. Transmission Electron Microscope, X-ray diffraction and nitrogen adsorption technology were used to characterize the morphology, microstructure and specific surface area of resultant ONC. The effects of carbonization temperature and pre-carbonization on the microstructure of ONC were investigated. The results have shown that SBA-15 is a kind of ideal template for preparing ONC, from which ONC with the diameter around 8 nm was obtained. When carbonized at 700 °C, the specific surface area of ONC derived is 2884.05 m²/g.
