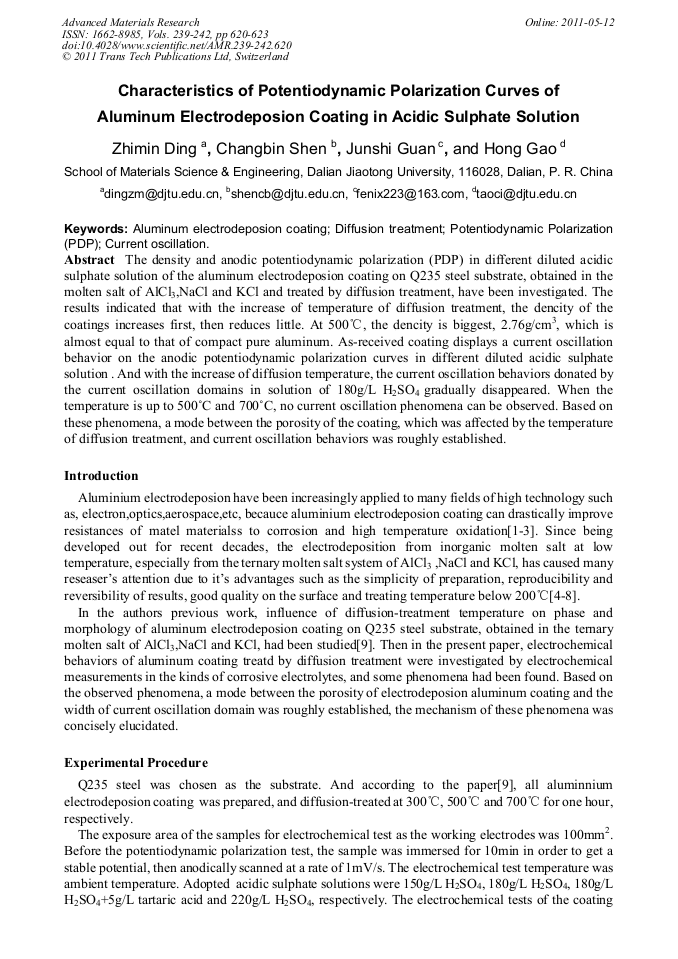

Characteristics of Potentiodynamic Polarization Curves of Aluminum Electrodeposion Coating in Acidic Sulphate Solution

Abstract:

The density and anodic potentiodynamic polarization (PDP) in different diluted acidic sulphate solution of the aluminum electrodeposion coating on Q235 steel substrate, obtained in the molten salt of AlCl₃,NaCl and KCl and treated by diffusion treatment, have been investigated. The results indicated that with the increase of temperature of diffusion treatment, the dencity of the coatings increases first, then reduces little. At 500°C, the dencity is biggest, 2.76g/cm³, which is almost equal to that of compact pure aluminum. As-received coating displays a current oscillation behavior on the anodic potentiodynamic polarization curves in different diluted acidic sulphate solution . And with the increase of diffusion temperature, the current oscillation behaviors donated by the current oscillation domains in solution of 180g/L H₂SO₄ gradually disappeared. When the temperature is up to 500°C and 700°C, no current oscillation phenomena can be observed. Based on these phenomena, a mode between the porosity of the coating, which was affected by the temperature of diffusion treatment, and current oscillation behaviors was roughly established.

• Periodical: Advanced Materials Research (Volumes 239-242)
• Pages: 620-623
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.239-242.620
• Online since: May 2011
• Authors: Zhi Min Ding, Chang Bin Shen, Jun Shi Guan, Hong Gao
• Keywords: Aluminum Electrodeposion Coating, Current Oscillation, Diffusion Treatment, Potentiodynamic Polarization (pdp)

References

[1] WU Chunsu: Materials protection Vol.23(1～2)(1990),p.58

[2] DING Zhimin,FENG Qiuyuan,SHI Ziyuan,et al: Heat treatment of matals Vol.29(7)(2004):,p.41

[3] DING Zhimin,FENG Qiuyuan,SHI Ziyuan,et al: Hot working technology (7)(2004),p.27

[4] Jafarian M., Mahjani M. G., Gobal F., et al: J Appl Electrochem Vol.36(10)(2006),p.1169

[5] FENG Qiuyuan,DING Zhimin,JIA Lishan,et al: Materials protection Vol.37(4)(2004),p.1

[6] Wang Yujiang, Ma Xinxin, Guo Guangwei: Key Engineering materials Vol.373-374(2008),p.273

[7] Jafarian M., Mahjani M. G., Gobal F., et al: J Electroanal Chem Vol.588(2)(2006):,p.190

[8] Kai Grjotheim，Kamil Matiašovský: Acta Chemica Scandinavica A Vol.34(9)(1980),p.666

[9] DING Zhimin, SONG Jianmin, GUAN Junshi, etal: J Functional materials Vol.37(4)(2004), p.1321

[10] Hladky K. and Dawson J. L.: Corrosion Science Vol.22(3)(1982),p.231

[11] Hladky K. and Dawson J. L.: Corrosion Science  Vol.21(4)(1981),p.317
