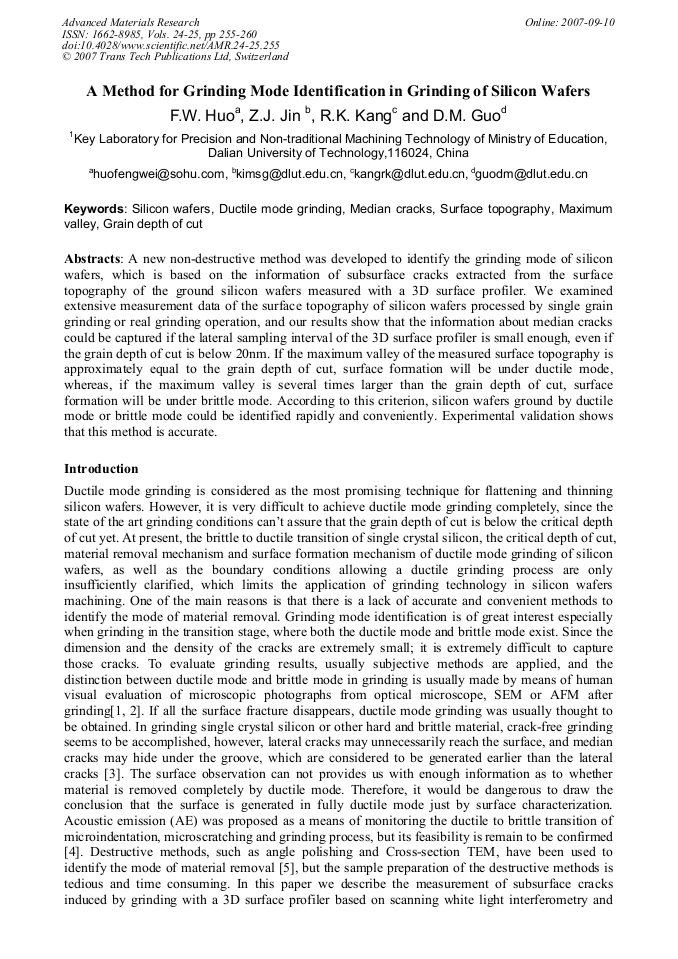

A Method for Grinding Mode Identification in Grinding of Silicon Wafers

Abstract:

A new non-destructive method was developed to identify the grinding mode of silicon wafers, which is based on the information of subsurface cracks extracted from the surface topography of the ground silicon wafers measured with a 3D surface profiler. We examined extensive measurement data of the surface topography of silicon wafers processed by single grain grinding or real grinding operation, and our results show that the information about median cracks could be captured if the lateral sampling interval of the 3D surface profiler is small enough, even if the grain depth of cut is below 20nm. If the maximum valley of the measured surface topography is approximately equal to the grain depth of cut, surface formation will be under ductile mode, whereas, if the maximum valley is several times larger than the grain depth of cut, surface formation will be under brittle mode. According to this criterion, silicon wafers ground by ductile mode or brittle mode could be identified rapidly and conveniently. Experimental validation shows that this method is accurate.

• Periodical: Advanced Materials Research (Volumes 24-25)
• Pages: 255-260
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.24-25.255
• Online since: September 2007
• Authors: Feng Wei Huo, Zhu Ji Jin, Ren Ke Kang, Dong Ming Guo
• Keywords: Ductile Mode Grinding, Grain Depth of Cut, Maximum Valley, Median crack, Silicon Wafer, Surface Topography

References

[1] H. Trumpold, M. Hattori, C. Tsutsumi. Annals of the CIRP, Vol. 43(1994) No. 1 p.479.

[2] Z.W. Zhong. Int J Adv Manuf Technol. Vol. 21 (2003) No. 8, p.579.

[3] B.R. Lawn and M.V. Swain: Journal of Material Science. Vol. 10 (1975), p.113.

[4] S. Koshimizu, J. Otsuka. Machining Science and Technology, Vol. 5 (2001) No. 1, p.101.

[5] F.W. Huo, R.K. Kang, D.M. Guo et al. Journal of Chinese Semiconductor, Vol. 27(2006) No. 3, p.506.

[6] M.V. Swain. Proc. R. Lond. A366, Vol. 366, pp.579-597.

[7] F.W. Huo, Z.J. Jin, F.L. Zhao et al. Key Engineering Materials, Vol. 329(2007), p.433.

[8] NewView 5000 System Manual OMP-0471E. http: /www. zygo. com. Median cracks.
