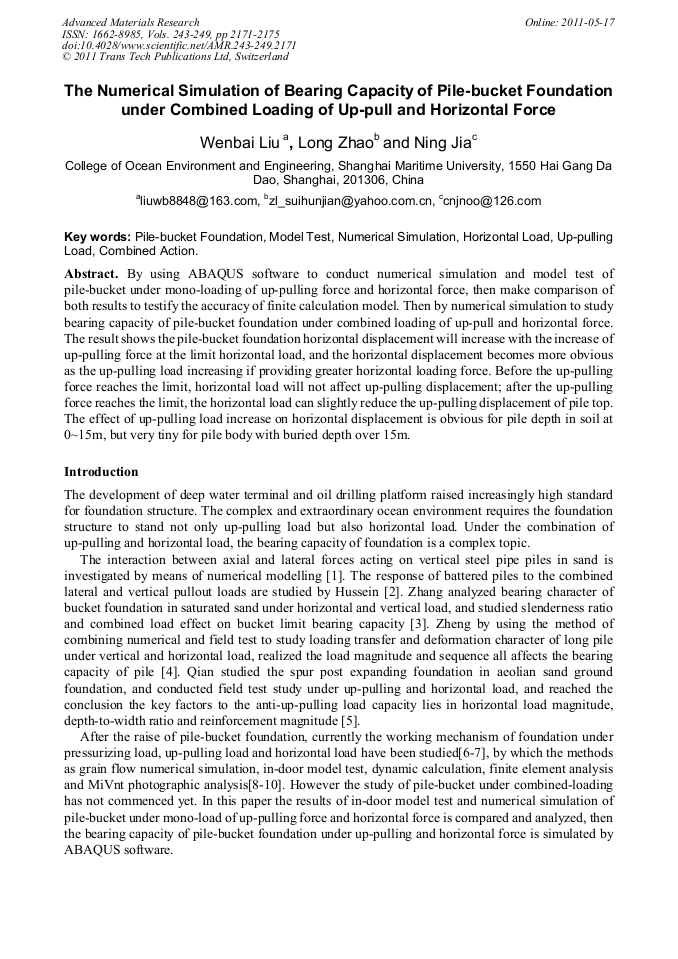

The Numerical Simulation of Bearing Capacity of Pile-Bucket Foundation under Combined Loading of Up-Pull and Horizontal Force

Abstract:

By using ABAQUS software to conduct numerical simulation and model test of pile-bucket under mono-loading of up-pulling force and horizontal force, then make comparison of both results to testify the accuracy of finite calculation model. Then by numerical simulation to study bearing capacity of pile-bucket foundation under combined loading of up-pull and horizontal force. The result shows the pile-bucket foundation horizontal displacement will increase with the increase of up-pulling force at the limit horizontal load, and the horizontal displacement becomes more obvious as the up-pulling load increasing if providing greater horizontal loading force. Before the up-pulling force reaches the limit, horizontal load will not affect up-pulling displacement; after the up-pulling force reaches the limit, the horizontal load can slightly reduce the up-pulling displacement of pile top. The effect of up-pulling load increase on horizontal displacement is obvious for pile depth in soil at 0~15m, but very tiny for pile body with buried depth over 15m.

• Periodical: Advanced Materials Research (Volumes 243-249)
• Pages: 2171-2175
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.243-249.2171
• Online since: May 2011
• Authors: Wen Bai Liu, Long Zhao, Ning Jia
• Keywords: Combined Action, Horizontal Load, Model Test, Numerical Simulation, Pile-Bucket Foundation, Up-Pulling Load

References

[1] Abdel-Rahman K., Achmus M. Numerical Methods in Geotechnical Engineering (2006), p.575

[2] Mroueh Hussein, Shahrour Isam. International Journal for Numerical and Analytical Methods in Geomechanics, Vol. 33(2009), p.1277

[3] Jinlai Zhang, Xiaobing Lu. Chinese Journal of Rock Mechanics and Engineering, Vol. 24 (2005), p.1169 (In Chinese).

[4] Gang Zheng, Li Wang. Chinese Journal of Geotechnical Engineering, Vol. 30(2008), p.1796 (In Chinese).

[5] Zengzhen Qian, Xianlong Lu, Shijun Ding. Rock and Soil Mechanics, Vol. 30 (2009), p.257 (In Chinese).

[6] Mengyu Wang. Study on the tests for ultimate uplift loading of the bucket-pile foundations [M.S. Thesis] [D].Shanghai Maritime University, 2006. (In Chinese)

[7] Chenxia Zhu. Test and numerical simulation of pile-bucket foundation under horizontal loading [M.S. Thesis] [D].Shanghai Maritime University, 2006. (In Chinese)

[8] Wenbai Liu. Journal of Waterway and Harbor, Vol. 25(2004), p.69 (In Chinese)

[9] Minghua Zhao, Yisun Wang. Soil mechanics and foundation engineering [M]. Hubei Wuhan University Press, 2000. (In Chinese)

[10] Wu Zhang. Building Science, Vol. 24(2008), p.75 (In Chinese).
