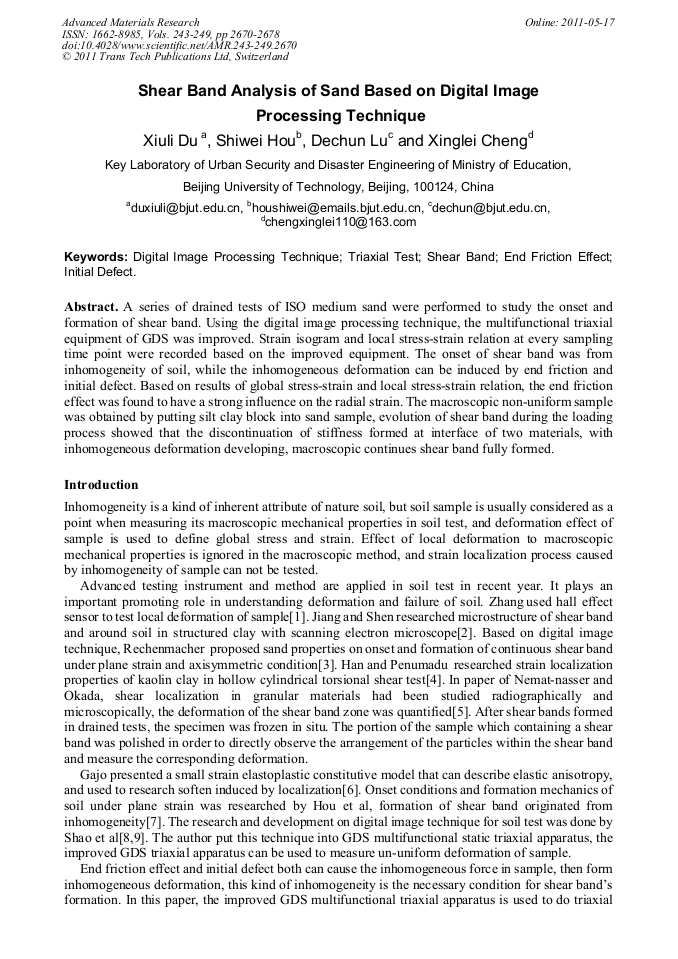

Shear Band Analysis of Sand Based on Digital Image Processing Technique

Abstract:

A series of drained tests of ISO medium sand were performed to study the onset and formation of shear band. Using the digital image processing technique, the multifunctional triaxial equipment of GDS was improved. Strain isogram and local stress-strain relation at every sampling time point were recorded based on the improved equipment. The onset of shear band was from inhomogeneity of soil, while the inhomogeneous deformation can be induced by end friction and initial defect. Based on results of global stress-strain and local stress-strain relation, the end friction effect was found to have a strong influence on the radial strain. The macroscopic non-uniform sample was obtained by putting silt clay block into sand sample, evolution of shear band during the loading process showed that the discontinuation of stiffness formed at interface of two materials, with inhomogeneous deformation developing, macroscopic continues shear band fully formed.

• Periodical: Advanced Materials Research (Volumes 243-249)
• Pages: 2670-2678
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.243-249.2670
• Online since: May 2011
• Authors: Xiu Li Du, Shi Wei Hou, De Chun Lu, Xing Lei Cheng
• Keywords: Digital Image Processing (DIP) Technique, End Friction Effect, Initial Defect, Shear Band, Triaxial Test

References

[1] Luyu Zhang, Shuguo Sun, Yingren Zheng: Chinese Journal of Geotechnical Engineering. vol. 26(2004), p.706(in Chinese)

[2] Mingjing Jiang, Zhujiang Shen: Chinese Journal of Geotechnical Engineering, vol. 20(1998), p.102 (in Chinese)

[3] A. L. Rechenmacher: Journal of the Mechanics and Physics of Solids, vol. 54(2006), p.22

[4] Han Lin, Dayakar Penumadu: Journal of Engineering Mechanics, vol. 132(2006), p.555

[5] S. Nemat-nasser, N. Okada:Geotechnique, vol.51(2001), p.753

[6] A. Gajo, D. Bigoni, D. M. Wood: Journal of the Mechanics and Physics of Solids, vol.52(2004), p.2683

[7] Shiwei Hou, Dechun Lu, Xiuli Du: Journal of Beijing University of Technology, (2011),(in Chinese)

[8] Longtan Shao, Zhupin Wang, Guocheng Han, et al: Chinese Journal of Geotechnical Engineering, vol.23(2001), p.337 (in Chinese)

[9] Longtan Shao, Yizhen Sun, Zhupin Wang, et al: Rock and Soil Mechanics, vol.27(2006), p.29 (in Chinese)

[10] Longtan Shao, Jianjun Dong, Yonglu Liu, et al: Rock and Soil Mechanics.vol.29(2008), p.1329 (in Chinese)

[11] Li Cheng. Preliminary application study on strain field measurement of triaxial specimen.Dalian University of Technology,2008 (in Chinese)
