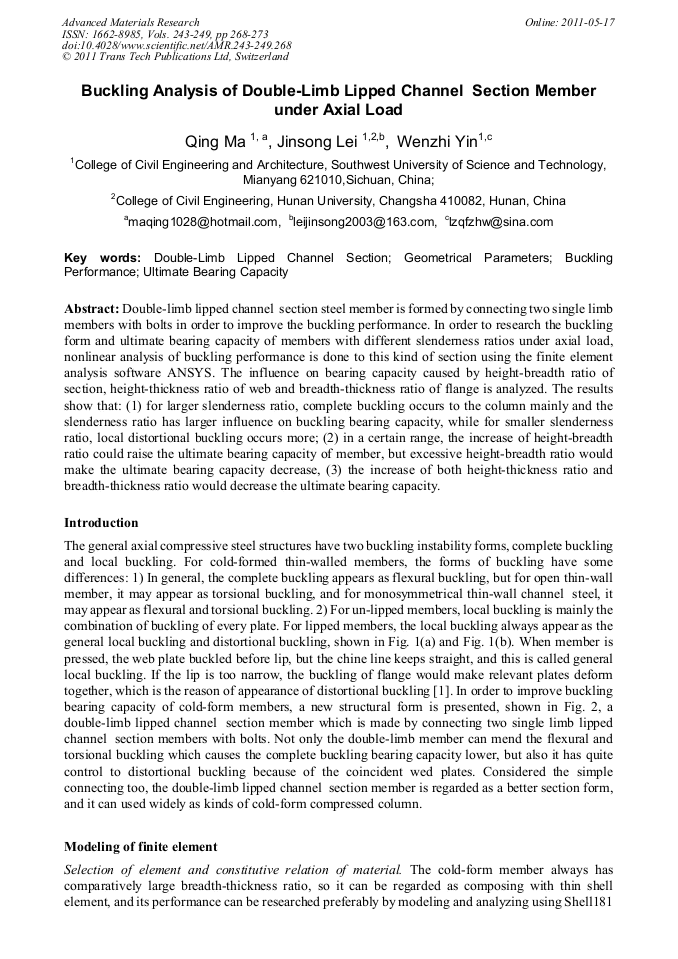

Buckling Analysis of Double-Limb Lipped Channel Section Member under Axial Load

Abstract:

Double-limb lipped channel section steel member is formed by connecting two single limb members with bolts in order to improve the buckling performance. In order to research the buckling form and ultimate bearing capacity of members with different slenderness ratios under axial load, nonlinear analysis of buckling performance is done to this kind of section using the finite element analysis software ANSYS. The influence on bearing capacity caused by height-breadth ratio of section, height-thickness ratio of web and breadth-thickness ratio of flange is analyzed. The results show that: (1) for larger slenderness ratio, complete buckling occurs to the column mainly and the slenderness ratio has larger influence on buckling bearing capacity, while for smaller slenderness ratio, local distortional buckling occurs more; (2) in a certain range, the increase of height-breadth ratio could raise the ultimate bearing capacity of member, but excessive height-breadth ratio would make the ultimate bearing capacity decrease, (3) the increase of both height-thickness ratio and breadth-thickness ratio would decrease the ultimate bearing capacity.

• Periodical: Advanced Materials Research (Volumes 243-249)
• Pages: 268-273
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.243-249.268
• Online since: May 2011
• Authors: Qing Ma, Jin Song Lei, Wen Zhi Yin
• Keywords: Buckling Performance, Double-Limb Lipped Channel Section, Geometrical Parameters, Ultimate Bearing Capacity

References

[1] Shaofan Chen, Journal of Building Structures, 2002, 23(1) (in Chinese).

[2] Xinmin Wang, ANSYS Numerical Analysis of Engineering Structure, Peking: Renmin Communication Press, 2007(in Chinese).

[3] Ji Chen, Stability Theory and Design of Steel Structure, Peking: Science Press, 2008(in Chinese).

[4] Zhenyu Zhang, The Research on the Compression Stability Performance of Cold-formed Thin-wall Lipped Channel Column with Stiffer Plates, Xi'an: Chang'an University, 2008(in Chinese).

[5] Zhao yu Zhang, Experimental Study on Distortional Buckling of Cold-formed C-type Channel Section, [D]. Zhejiang: Zhejiang University, 2005(in Chinese).

[6] GB50018-2002 Technical code for design of cold-formed thin -wall steel structures, Peking: China's Planning Press, 2002.

[7] GB50017-2003 Code for design of steel structures, Peking: China's Planning Press, 2003.

[8] Young B, Rasmussen K J R. Tests of fixed-ended plain channel columns[J].Journal of Structural Enginering. ASCE, 1998,124(2):pp.131-139.

DOI: 10.1061/(asce)0733-9445(1998)124:2(131)

[9] Yanlin Guo, E'nuo Zhang, Industrial Architecture Press, 2009,39(9) (in Chinese).
