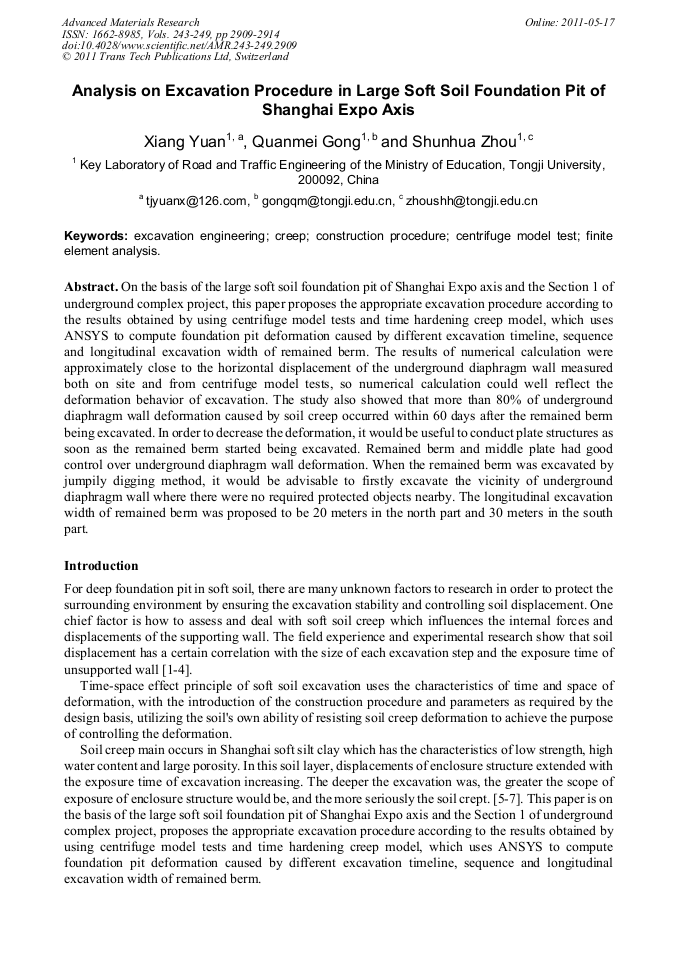

Analysis on Excavation Procedure in Large Soft Soil Foundation Pit of Shanghai Expo Axis

Abstract:

On the basis of the large soft soil foundation pit of Shanghai Expo axis and the Section 1 of underground complex project, this paper proposes the appropriate excavation procedure according to the results obtained by using centrifuge model tests and time hardening creep model, which uses ANSYS to compute foundation pit deformation caused by different excavation timeline, sequence and longitudinal excavation width of remained berm. The results of numerical calculation were approximately close to the horizontal displacement of the underground diaphragm wall measured both on site and from centrifuge model tests, so numerical calculation could well reflect the deformation behavior of excavation. The study also showed that more than 80% of underground diaphragm wall deformation caused by soil creep occurred within 60 days after the remained berm being excavated. In order to decrease the deformation, it would be useful to conduct plate structures as soon as the remained berm started being excavated. Remained berm and middle plate had good control over underground diaphragm wall deformation. When the remained berm was excavated by jumpily digging method, it would be advisable to firstly excavate the vicinity of underground diaphragm wall where there were no required protected objects nearby. The longitudinal excavation width of remained berm was proposed to be 20 meters in the north part and 30 meters in the south part.

• Periodical: Advanced Materials Research (Volumes 243-249)
• Pages: 2909-2914
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.243-249.2909
• Online since: May 2011
• Authors: Xiang Yuan, Quan Mei Gong, Shun Hua Zhou
• Keywords: Centrifuge Model Test, Construction Procedure, Creep, Excavation Engineering, Finite Element Analysis (FEA)

References

[1] Guiping Wang. China Civil Engineering Journal Vol. 42 (2009), pp.114-118 (In Chinese)

[2] Yan Liu. Journal of Geotechnical Engineering Vol. 28 (2006), pp.1433-1436 (In Chinese)

[3] Wenhua Gao. China Civil Engineering Journal Vol. 34 (2001), pp.90-96 (In Chinese)

[4] Wenhua Gao, Linde Yang. Journal of Hunan University Vol. 27 (2000), pp.86-91 (In Chinese)

[5] Lin Kang. Anhui Architecture, Vol. 3 (2006), pp.93-95 (In Chinese)

[6] Wen Wang. Journal of Shanxi University of Technology Vol. 25 (2009), pp.62-65 (In Chinese)

[7] Juncai Li, Zhouyuan Zhang. Rock and Soil Mechanics Vol. 24 (2003), pp.812-816 (In Chinese)

[8] Xufan Bao. Journal of Geotechnical Engineering Vol. 28 (2006), pp.1208-1212 (In Chinese)

[9] Longcai Yang. Journal of Shanghai Tiedao University Vol. 21 (2000), pp.100-105 (In Chinese)

[10] Li Zhuang. Chinese Journal of Rock Mechanics and Engineering Vol. 25 (2006), pp.4209-4214 (In Chinese)
