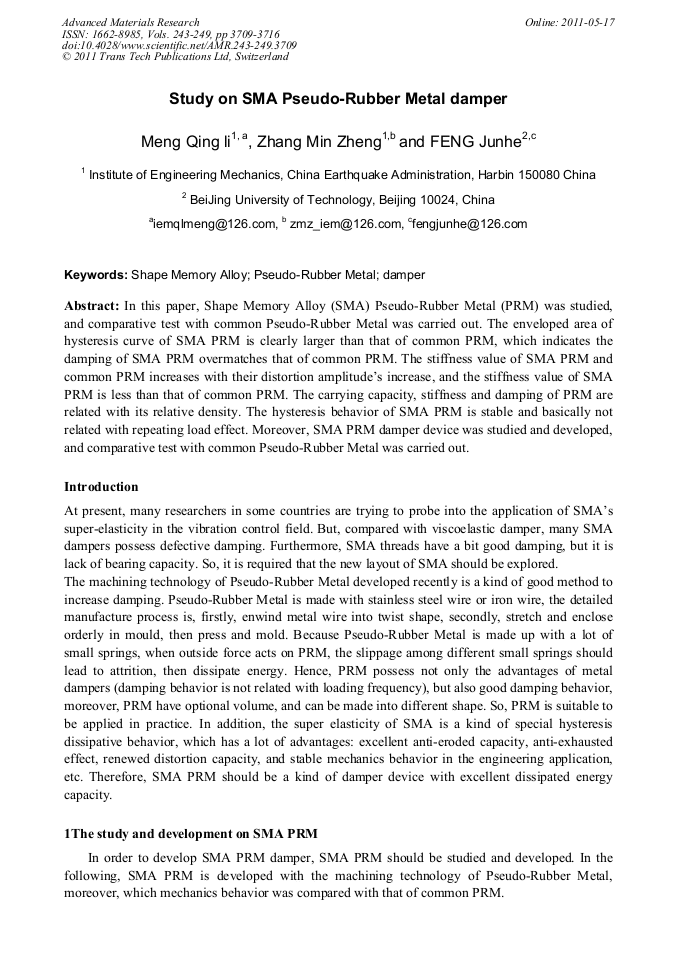

Study on SMA Pseudo-Rubber Metal Damper

Abstract:

In this paper, Shape Memory Alloy (SMA) Pseudo-Rubber Metal (PRM) was studied, and comparative test with common Pseudo-Rubber Metal was carried out. The enveloped area of hysteresis curve of SMA PRM is clearly larger than that of common PRM, which indicates the damping of SMA PRM overmatches that of common PRM. The stiffness value of SMA PRM and common PRM increases with their distortion amplitude’s increase, and the stiffness value of SMA PRM is less than that of common PRM. The carrying capacity, stiffness and damping of PRM are related with its relative density. The hysteresis behavior of SMA PRM is stable and basically not related with repeating load effect. Moreover, SMA PRM damper device was studied and developed, and comparative test with common Pseudo-Rubber Metal was carried out.

• Periodical: Advanced Materials Research (Volumes 243-249)
• Pages: 3709-3716
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.243-249.3709
• Online since: May 2011
• Authors: Qing Li Meng, Min Zheng Zhang, Jun He Feng
• Keywords: Damper, Pseudo-Rubber Metal, Shape Memory Alloy Actuator

References

[1] G. W. Housner et al, Structural Control: Past, Present, and Future, Journal of Engineering Mechanics, Vol.123, No.11, (1997)

[2] Robert C K, Jack H, Steve S. Structural damping with shape-memory alloys:one class of devices[R]. SPIE 2445, 1995:225-240.

[3] Adachi Y, Unjoh S. Experimental study on seismic response control of bridge by damper devices using shape memory alloys[C]. Proc of the 2nd World Conf on Structural Control, Kyoto, Japan, 1998. 235-242.

[4] Witting P R, Cozzarelli F A. Shape memory structural dampers:material properties.design and seismic testing. Report No, NCEER-920013, National Center for Earthquake Eng Res.1992.

[5] Grasser E J , Cozzarelli F A. Shape memory alloys as new materials for aseismic isolation[J ] . Journal of EngineeringMechanics , ASCE ,1991 ,117 (11) :2590～2608

DOI: 10.1061/(asce)0733-9399(1991)117:11(2590)

[6] Whittaker A S ,Krumme R , Sweeney S C , et al . Structural control of buildings response using shape memory alloys [ R ] . USACERL

[7] Technical Report ,(1995)

[8] Witting P R , Cozzarelli F A. Shape memory structural dampers : Material properties , design and seismic testing[R] . National Center for

[9] Earthquake Engineering Research , (1993)

[10] Deng Jianbo. Theoretical and experimental investigation on characteristics of a new structural damping material metal rubber [ D ] .

[11] Dept . of Propulsion , Beijing University of Aeronautics and Astronautics ,1997 (in Chinese)

[12] Piedboeuf M C , Gauvin R. Damping behavior of shape memory alloys : strain amplitude , frequency and temperature effects. J of Sound and Vibration , 1998 , 214(5) : 885～901

DOI: 10.1006/jsvi.1998.1578

[13] Han Yulin, Li Aiqun, Lin Pinghua, Zhang Zhiqiang, Research and Prospect of Civil Structure Vibration Control by Shape Memory Alloy, JOURNAL OF SOUTHEAST UNIVERSITY (Natural Science Edition), 2000, 30(1):146-154

[14] Jiang Hongyuan, xia yuhong, Ao Hongrui. Experimental Research on Characteristics of Metal Rubber Element. China Mechanical Engineering, 2001, 12(11): 1294-1297.

[15] Zhao Hongtie, Xu Zhaodong, Zhang xinghu. Study, application and development of energy dissipation and damping control. [J] Xi'an Univ of Arch, & Tech, 2001, 33(1):1-6.

[16] Xia yuhong, Jiang Hongyuan, etc. Effect of original size of MR elements on its inner micro-structural characteristics, Journal of harbin institute of technology, 2006, 38(9): 1461-1464
