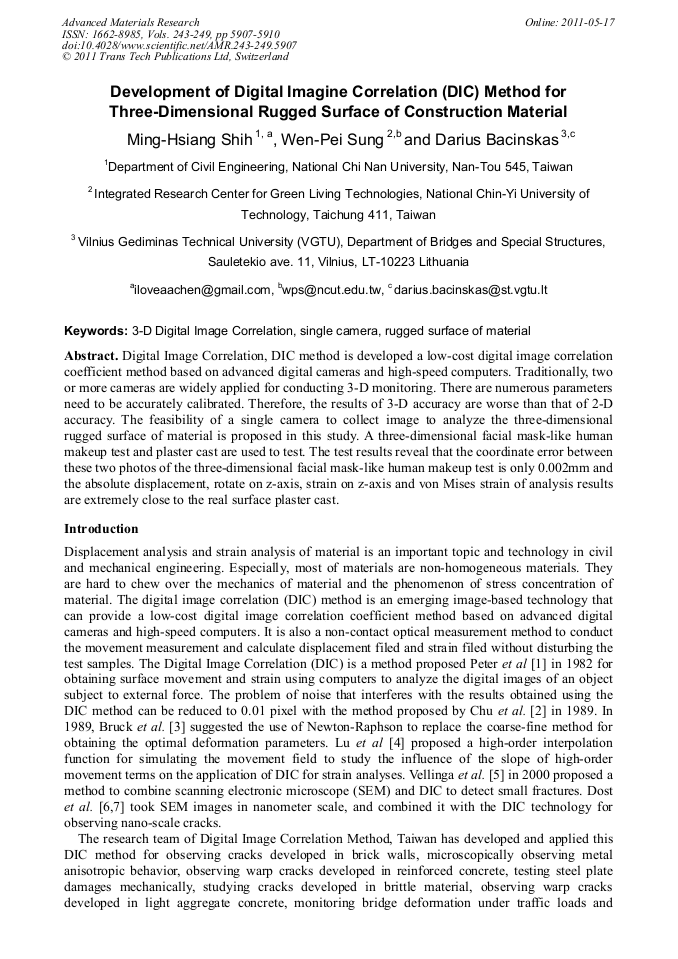

Development of Digital Imagine Correlation (DIC) Method for Three-Dimensional Rugged Surface of Construction Material

Abstract:

Digital Image Correlation, DIC method is developed a low-cost digital image correlation coefficient method based on advanced digital cameras and high-speed computers. Traditionally, two or more cameras are widely applied for conducting 3-D monitoring. There are numerous parameters need to be accurately calibrated. Therefore, the results of 3-D accuracy are worse than that of 2-D accuracy. The feasibility of a single camera to collect image to analyze the three-dimensional rugged surface of material is proposed in this study. A three-dimensional facial mask-like human makeup test and plaster cast are used to test. The test results reveal that the coordinate error between these two photos of the three-dimensional facial mask-like human makeup test is only 0.002mm and the absolute displacement, rotate on z-axis, strain on z-axis and von Mises strain of analysis results are extremely close to the real surface plaster cast.

• Periodical: Advanced Materials Research (Volumes 243-249)
• Pages: 5907-5910
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.243-249.5907
• Online since: May 2011
• Authors: Ming Hsiang Shih, Wen Pei Sung, Darius Bacinskas
• Keywords: 3D Digital Image Correlation, Rugged Surface of Material, Single Camera

References

[1] W.H. Peters and W.F. Ranson, Optical Engineering, 21 (3), 427-432 (1982).

[2] T.C. Chu, W.F. Ranson, M.A. Sutton and W.H. Peters, Exp. Mech. 25(3), 232-244(1985).

[3] H.A. Bruck, S.R. McNeil, M.A. Sutton and W.H. Peters, Experimental Mechanics, 29, 261-267 (1989).

[4] H. Lu and P.D. Cary, Experimental Mechanics, 40 (4), 393-400 (2000).

[5] W. P. Vellinga, and S. Onraet, Proceedings of the joint Meeting of the BVM and the NVvM 2000 in Papendal, Arnhem, 110-111(2000).

[6] M. Dost, D.Vogel, T. Winkler, J. Vogel, R. Erb, E. Kieselstein, Nondestructive Detection and Measurement for Homeland Security, Proceedings of SPIE. 5048(2003).

DOI: 10.1117/12.484373

[7] M. Dost, N. Rümmler, E. Kieselstein,, Erb, E., V. Hillmann, V. Großer,. Materials Mechanics – Fracture Mechanics – Micromechanics, Eds. T. Winkler, A. Schubert, 259-266(1999).

[8] M. H. Shih, S. H. Tung and W. P. Sung, Sadhana Academy Proceedings in Engineering Sciences, 33 (6), 767-779 (2008).

[9] W. P. Sung, M. H. Shih, and C. H. Sui, 2009 Sixth International Conference on Fuzzy Systems and Knowledge Discovery, IEEE Computer Society, DOI 10.1109/FSKD.2009.419 (2009).

[10] W. P. Sung, M. H. Shih, H. Huang, F. J. Tsai, the 5th World Conference on Structural Control and Monitoring, Paper No. 10003 (2010)
