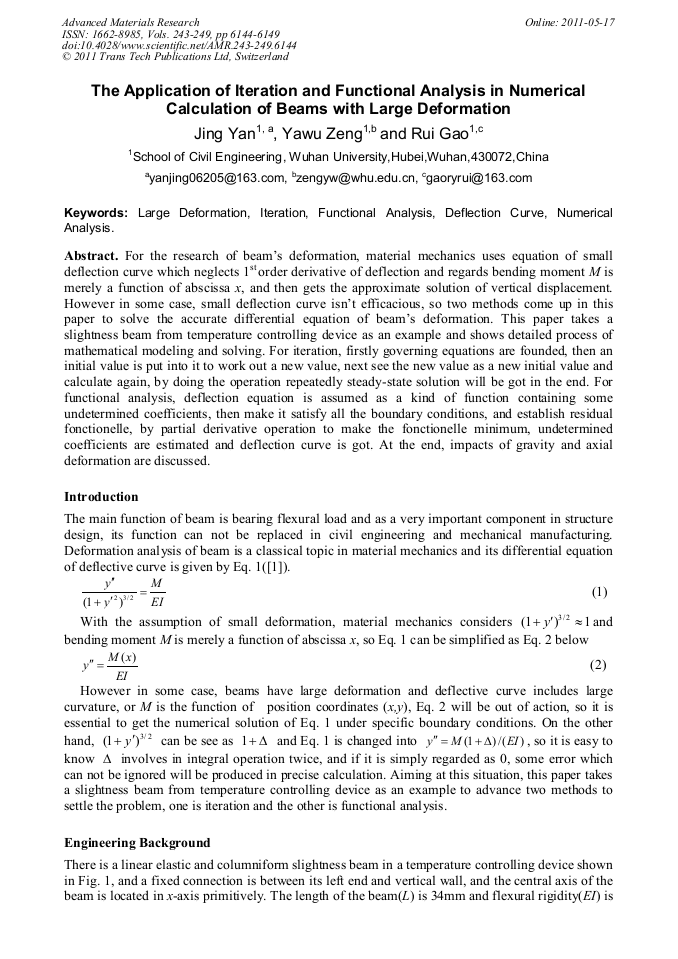

The Application of Iteration and Functional Analysis in Numerical Calculation of Beams with Large Deformation

Abstract:

For the research of beam’s deformation, material mechanics uses equation of small deflection curve which neglects 1^st order derivative of deflection and regards bending moment M is merely a function of abscissa x, and then gets the approximate solution of vertical displacement. However in some case, small deflection curve isn’t efficacious, so two methods come up in this paper to solve the accurate differential equation of beam’s deformation. This paper takes a slightness beam from temperature controlling device as an example and shows detailed process of mathematical modeling and solving. For iteration, firstly governing equations are founded, then an initial value is put into it to work out a new value, next see the new value as a new initial value and calculate again, by doing the operation repeatedly steady-state solution will be got in the end. For functional analysis, deflection equation is assumed as a kind of function containing some undetermined coefficients, then make it satisfy all the boundary conditions, and establish residual fonctionelle, by partial derivative operation to make the fonctionelle minimum, undetermined coefficients are estimated and deflection curve is got. At the end, impacts of gravity and axial deformation are discussed.

• Periodical: Advanced Materials Research (Volumes 243-249)
• Pages: 6144-6149
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.243-249.6144
• Online since: May 2011
• Authors: Jing Yan, Ya Wu Zeng, Rui Gao
• Keywords: Deflection Curve, Functional Analysis, Iteration, Large Deformation, Numerical Analysis

References

[1] XunFang Sun, Xiaoshu Fang, Laitai Guang. Material Mechanics[M]. Beijing: Higher Education Press, 2001.(in chinese)

[2] Shaoguang Xu, Zhuguang Ou.Theoretical Mechanics[M]. Wuhan: Wuhan University Press, 2001. (in chinese)

[3] Zhenyi Jing, Zebing Zhang, Lin Dong. Manual of matlab7.0[M]. Beijing: China Railway Publishing House, 2009. (in chinese)

[4] Qinjin Yan. Numerical analysis[M]. Beijing: Beijing University of Aeronautics And Astro-nautics Press, 1999. (in chinese)
