Calculation of any Element with Tapered Beam Member Based on the Method of Equivalent Moment of Inertia

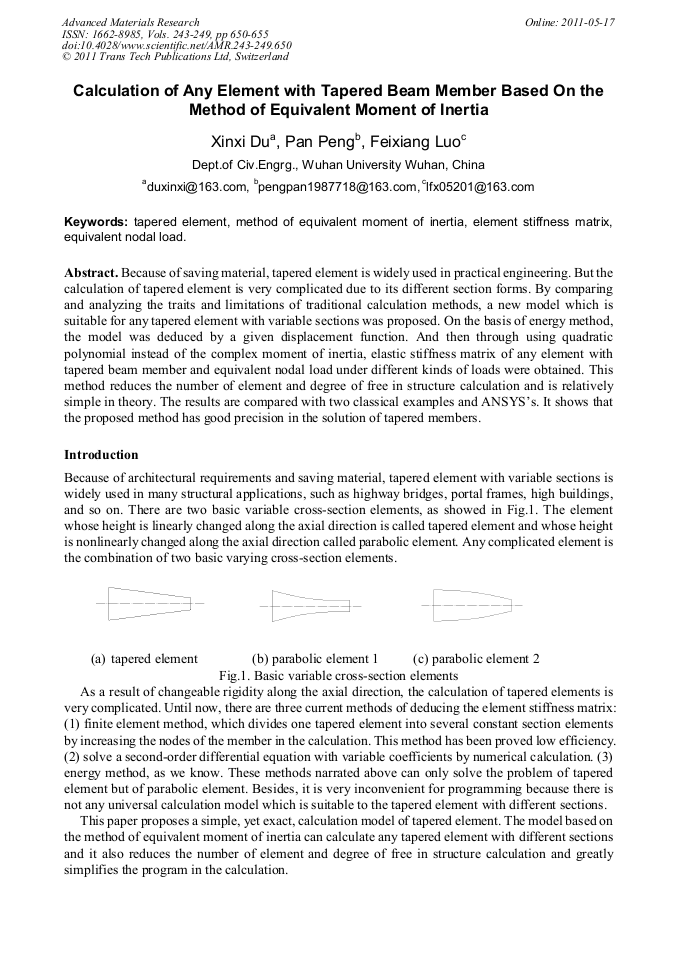

Article Preview

Abstract:

Because of saving material, tapered element is widely used in practical engineering. But the calculation of tapered element is very complicated due to its different section forms. By comparing and analyzing the traits and limitations of traditional calculation methods, a new model which is suitable for any tapered element with variable sections was proposed. On the basis of energy method, the model was deduced by a given displacement function. And then through using quadratic polynomial instead of the complex moment of inertia, elastic stiffness matrix of any element with tapered beam member and equivalent nodal load under different kinds of loads were obtained. This method reduces the number of element and degree of free in structure calculation and is relatively simple in theory. The results are compared with two classical examples and ANSYS’s. It shows that the proposed method has good precision in the solution of tapered members.

You might also be interested in these eBooks
Advances in Civil Engineering and Architecture View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 243-249)

Pages:

650-655

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.243-249.650

Citation:

Cite this paper

Online since:

May 2011

Authors:

Xin Xi Du, Pan Peng, Fei Xiang Luo

Keywords:

Element Stiffness Matrix, Equivalent Nodal Load, Method of Equivalent Moment of Inertia, Tapered Element

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2011 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] Zhang Qilin, Luo Xiaoqun. Gong Ming, Mechanical modal of wedge-shaped element in the portal frame. Journal Of Tongji University, Vol 29, (2001), pp.134-139(In Chinese).

Google Scholar

[2] Wan Jinguo, Du Xinxi, Tan Meichao. Method of equivalent moment of inertia analyzing tapered member. Journal of HUST, Vol 25, (2008), pp.35-37(In Chinese).

Google Scholar

[3] Al-Gahtani H J. Exact Stiffnesses for Tapered Members. Journal of Structural Engineering. Vol 122, (1996),pp.1234-1239.

DOI: 10.1061/(asce)0733-9445(1996)122:10(1234)

Google Scholar

[4] Wang Xiaochen, Pu Junping. The finite element analysis of non-uniform beams. Journal of Zhejiang Uninersity of Technology. Vol 36, (2008),pp.311-315 (In Chinese).

Google Scholar

[5] Li Guoqiang, Li Jinjun. Tapered Timoshenko-Euler beam element. Chinese quarterly of mechanics. Vol 23, (2002,)pp.64-69 (In Chinese).

Google Scholar

[6] Zhao Bin, Wang Zhengzhong. Exact elemental stiffness matrix of a tapered beam considering second-order effects. Engineering Mechanics, Vol 25, (2008),pp.60-64 (In Chinese).

Google Scholar
