The Study of the Railway Tunnel on the Area of Wall Rock Pre-Injection

Abstract:

During the tunnel’s construction, pre-inject to form loop in wall rock of the fault fracture and karst-developed area where there is abundant water. To reduce the quantity of seepage for lining, simultaneity, set up drainage system to drain the rest of water to achieve its purpose that reduce the press of external water and control drainage with effort. According to the principle of elastic-plastic, the paper analyses and designs the thickness optimization based on the status change of plastic zone during excavating tunnel. The result indicates that the pre-injection loop of the single electrified railway tunnel with standard V level is ranging between 4m and 8m when leave out of consideration of external water load. Otherwise the thickness optimization is around 6m for the deep-buried 200m tunnel.

You might also be interested in these eBooks

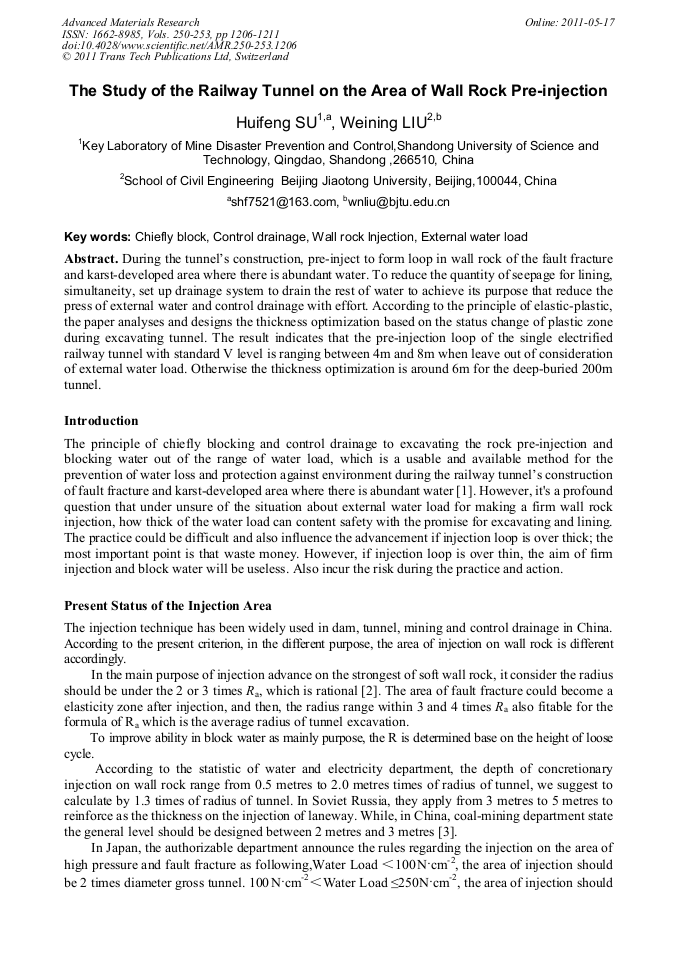

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 250-253)

Pages:

1206-1211

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.250-253.1206

Citation:

Cite this paper

Online since:

May 2011

Authors:

Hui Feng Su, Wei Ning Liu

Keywords:

Chiefly Block, Control Drainage, External Water Load, Wall Rock Injection

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] 1st Institute of Railway Survey and Design, Southwest Jiaotong University, Construction Techniques Department of the No.18 Engineering Bureau, Study on the forecast and prediction for karst water and water gush of tunnel terrene [R]. Lanzhou: Technology of Qinling Extra—Long Tunnel, 1998. 1-34 (In Chinese)

Google Scholar

[2] The Second Railways Survey & Design Institute, A learning Guide to Technology and Design on Railway. Tunnel (Revision) [M]. China Railway Publishing House, 1995, 1-300 (In Chinese)

Google Scholar

[3] Feng Weixing. The Railway Tunnel Design [M]. Chengdu: Southwest Jiaotong University Press, 1998,170-187 (In Chinese)

Google Scholar

[4] Dong Guoxian. Underwater Traffic Tunnel [M]. Beijing: China Communications Press, 1984. 101-136, 243-254, 360-431 (In Chinese)

Google Scholar

[5] Wang Haibin, Regulation and Prevention and Cure Methods to Groundwater in Mountain Tunnel [D]. Chengdu: Southwest Jiaotong University Engineering, 2002. 49-68 (In Chinese)

Google Scholar
