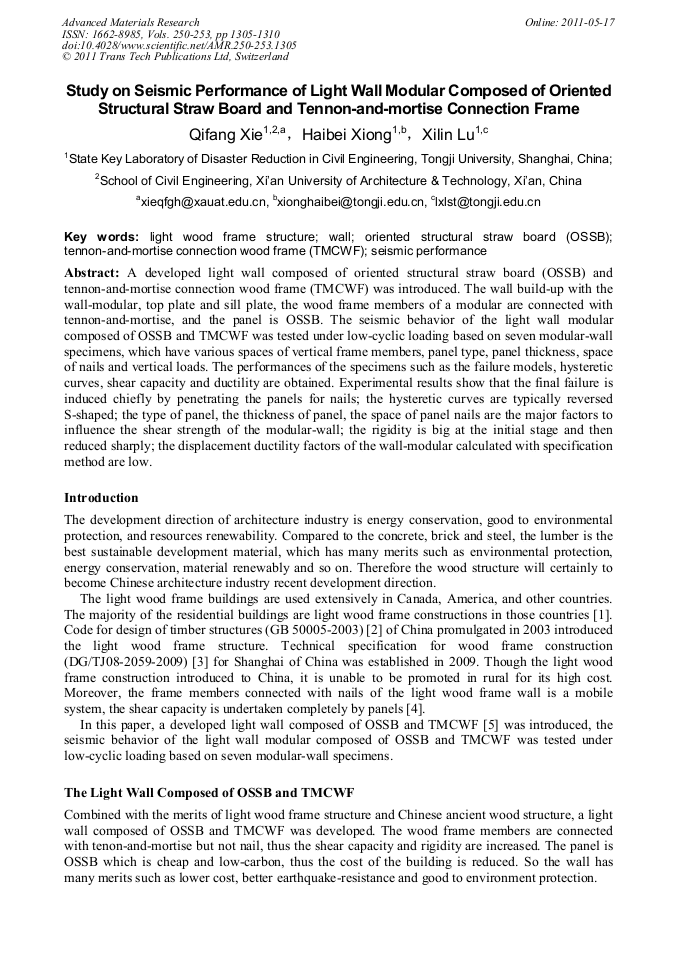

Study on Seismic Performance of Light Wall Modular Composed of Oriented Structural Straw Board and Tennon-and-Mortise Connection Frame

Abstract:

A developed light wall composed of oriented structural straw board (OSSB) and tennon-and-mortise connection wood frame (TMCWF) was introduced. The wall build-up with the wall-modular, top plate and sill plate, the wood frame members of a modular are connected with tennon-and-mortise, and the panel is OSSB. The seismic behavior of the light wall modular composed of OSSB and TMCWF was tested under low-cyclic loading based on seven modular-wall specimens, which have various spaces of vertical frame members, panel type, panel thickness, space of nails and vertical loads. The performances of the specimens such as the failure models, hysteretic curves, shear capacity and ductility are obtained. Experimental results show that the final failure is induced chiefly by penetrating the panels for nails; the hysteretic curves are typically reversed S-shaped; the type of panel, the thickness of panel, the space of panel nails are the major factors to influence the shear strength of the modular-wall; the rigidity is big at the initial stage and then reduced sharply; the displacement ductility factors of the wall-modular calculated with specification method are low.

• Periodical: Advanced Materials Research (Volumes 250-253)
• Pages: 1305-1310
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.250-253.1305
• Online since: May 2011
• Authors: Qi Fang Xie, Hai Bei Xiong, Xi Lin Lu
• Keywords: Light Wood Frame Structure, Oriented Structural Straw Board (OSSB), Seismic Performance, Tennon-and-Mortise Connection Wood Frame (TMCWF), Wall

References

[1] Ellingwood B. R., Rosowsky D. V., Pang W.. Journal of Structural Engineering, 2008, 134(8):1353-1363.

[2] GB 50005-2003 Code for design of timber structures[S]. Beijing: China Architecture & Building Press, 2003. ( in Chinese)

[3] DG/TJ08-2059-2009 Technical specification for wood frame construction[S]. Shanghai: Market manage central station of Shanghai building materials industry, 2009. ( in Chinese)

[4] Qifang Xie, Xilin Lu, Haibei Xiong. Journal of Building Structures, 2010, 31(SUPPL.2): 350-354. ( in Chinese)

[5] Qifang Xie, Haibei Xiong, Xilin Lu. Advanced Material Research, 2011(163-167):2234-2239

[6] American Society for Testing and Materials. E564-00: Standard Practice for Static Load Test for Shear Resistance of Framed Walls for Buildings, 2001.

[7] JGJ 101-96 Specification of testing methods for earthquake resistant building [S]. Beijing: China Architecture & Building Press, 1997. ( in Chinese)
