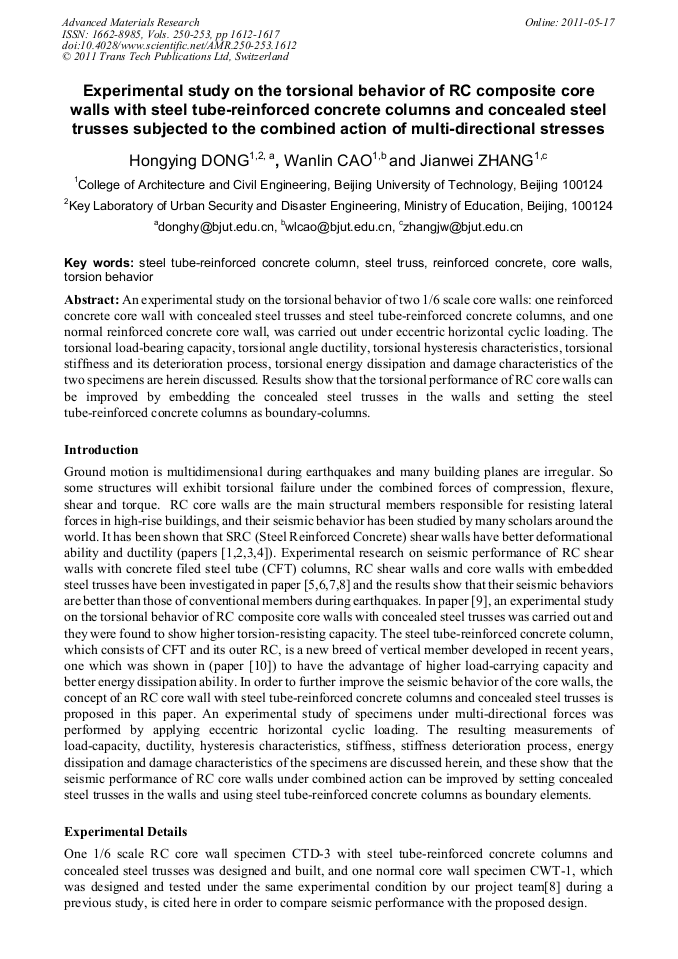

Experimental Study on the Torsional Behavior of RC Composite Core Walls with Steel Tube-Reinforced Concrete Columns and Concealed Steel Trusses Subjected to the Combined Action of Multi-Directional Stresses

Abstract:

An experimental study on the torsional behavior of two 1/6 scale core walls: one reinforced concrete core wall with concealed steel trusses and steel tube-reinforced concrete columns, and one normal reinforced concrete core wall, was carried out under eccentric horizontal cyclic loading. The torsional load-bearing capacity, torsional angle ductility, torsional hysteresis characteristics, torsional stiffness and its deterioration process, torsional energy dissipation and damage characteristics of the two specimens are herein discussed. Results show that the torsional performance of RC core walls can be improved by embedding the concealed steel trusses in the walls and setting the steel tube-reinforced concrete columns as boundary-columns.

• Periodical: Advanced Materials Research (Volumes 250-253)
• Pages: 1612-1617
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.250-253.1612
• Online since: May 2011
• Authors: Hong Ying Dong, Wan Lin Cao, Jian Wei Zhang
• Keywords: Core Walls, Reinforced Concrete (RC), Steel Truss, Steel Tube-Reinforced Concrete Column, Torsion Behaviour

References

[1] Hossain, Khandaker M. Anwar: ACI Structural Journal, 2004, V101, n1, 94-102

[2] Matsumoto, Toshio: Structural performance of SRC multi-story shear walls with infilled precast concrete panels. Transactions of the Japan Concrete Institute, 1998, 20: 187-194

[3] Wang Shuguang, Lan Zongjian: Journal of Building Structure. 2005, 26(1): 85-90,124. ( in Chinese )

[4] Li Yisong, Li Guoqiang, Cui Daguang: Journal of Earthquake Engineering and Engineering Vibration. 2009, 29(4): 92-102. ( in Chinese )

[5] Cao Wanlin, Wang Ming, Wang Shaohe, et al: Engineering Mechanics. 2008, 25(1): 58-70. ( in Chinese )

[6] Cao Wanlin, Zhang Jianwei, Zhang Jingna, et al: Journal of Beijing University of Technology. 2008, 34(6): 572-579. ( in Chinese )

[7] Wang Ming, Cao Wanlin, Zhang Jianwei, et al: Journal of Earthquake Engineering and Engineering Vibration. 2008, 28(2): 90-95. ( in Chinese )

[8] Chang Weihua, Cao Wanlin, Zhao Changjun, et al: Journal of Beijing University of Technology. 2008, 34(4): 379-386. ( in Chinese )

[9] Chang Weihua, Cao Wanlin, Zhang Jianwei, et al: Journal of Beijing University of Technology. 2008, 34(7): 720-725. ( in Chinese )

[10] Wang Qingxiang, Zhao Dazhou, Guan Ping: Engineering Mechanics. 2003, 20 (6) : 195-201. ( in Chinese )

[11] JGJ 3-2002 Technical specification for concrete structures of tall building[S]. China Architecture Industry Press, 2001 (in Chinese)

[12] JGJ138-2001, Technical specification for steel reinforced concrete composite structures[S]. Beijing: China Architecture Industry Press, 2001 (in Chinese)
