Shrinkage and Creep Analysis of a Continuous Rigid-Frame Bridge with Density Gradient Concrete

Abstract:

In consideration of the excessive mid-span deflection and box girder cracks of continuous rigid-frame bridges, this paper analyzes the maximum first principal stress and mid-span deflection increment of a continuous rigid-frame bridge with density gradient concrete under shrinkage and creep effect. The maximum first principal stress increment at main span is 0.084MPa and mid-span deflection increment is 73mm after 10 years for continuous rigid-frame bridge with density gradient concrete, which are smaller than a continuous rigid-frame bridge with normal concrete. All of that show that continuous rigid-frame bridge with density gradient concrete reduces effect of shrinkage and creep. The research provides a theoretical basis for the successful application of continuous rigid-frame bridge with density gradient concrete.

You might also be interested in these eBooks

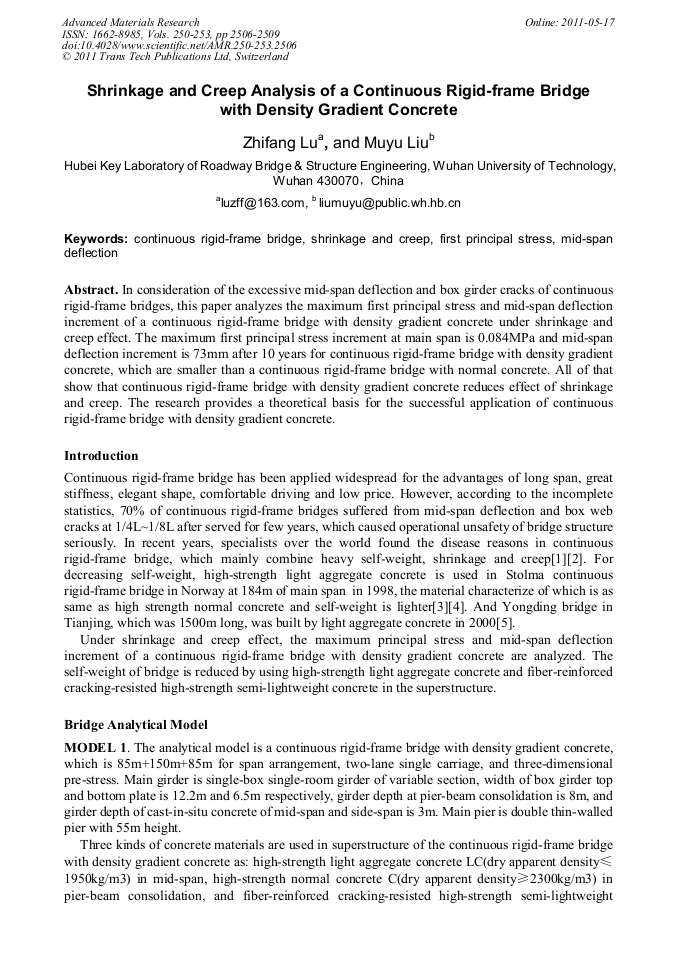

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 250-253)

Pages:

2506-2509

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.250-253.2506

Citation:

Cite this paper

Online since:

May 2011

Authors:

Zhi Fang Lu, Mu Yu Liu

Keywords:

Continuous Rigid Frame Bridge, First Principal Stress, Mid-Span Deflection, Shrinkage and Creep

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Hanhua Zhu, Mengchong Chen and Yingjie Yuan: Cracks analysis and prevention of the prestressed concrete continuous box-girder bridge (2006) (In Chinese)

Google Scholar

[2] Runping Ma, Jun Wei and Zongyu Gao: Journal of Railway Engineering Society. Vol. 104(2007), p.51(In Chinese)

Google Scholar

[3] Lou Zhuangming: Journal of Foreign Highway, Vol. 20(2000), p.29

Google Scholar

[4] Karl Melby: Proceedings 2nd international symposium on Structural lightweight aggregate concrete. Kristiand, Norway, (2000), p.47

Google Scholar

[5] Muyu Liu, Huali Zhang: Journal of Wuhan University of Technology(Transportation Science & Engineering). Vol. 33(2009), p.944(In Chinese)

Google Scholar

[6] Jian Wang, Zhi Fang: China Civil Engineering Journal. Vol. 41(2008), p.70(In Chinese)

Google Scholar

[7] JTG D62-2004, Code for design of highway reinforce concrete and prestressed concrete bridge and culverts (2004) (In Chinese)

Google Scholar
