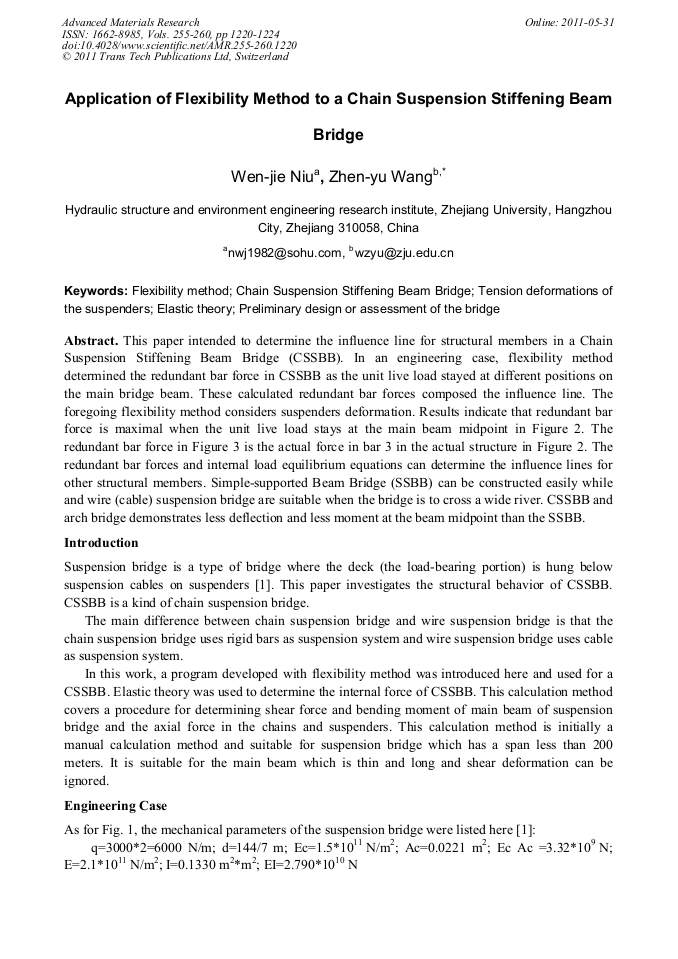

Application of Flexibility Method to a Chain Suspension Stiffening Beam Bridge

Abstract:

This paper intended to determine the influence line for structural members in a Chain Suspension Stiffening Beam Bridge (CSSBB). In an engineering case, flexibility method determined the redundant bar force in CSSBB as the unit live load stayed at different positions on the main bridge beam. These calculated redundant bar forces composed the influence line. The foregoing flexibility method considers suspenders deformation. Results indicate that redundant bar force is maximal when the unit live load stays at the main beam midpoint in Figure 2. The redundant bar force in Figure 3 is the actual force in bar 3 in the actual structure in Figure 2. The redundant bar forces and internal load equilibrium equations can determine the influence lines for other structural members. Simple-supported Beam Bridge (SSBB) can be constructed easily while and wire (cable) suspension bridge are suitable when the bridge is to cross a wide river. CSSBB and arch bridge demonstrates less deflection and less moment at the beam midpoint than the SSBB.

• Periodical: Advanced Materials Research (Volumes 255-260)
• Pages: 1220-1224
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.255-260.1220
• Online since: May 2011
• Authors: Wen Jie Niu, Zhen Yu Wang
• Keywords: Chain Suspension Stiffening Beam Bridge, Elastic Theory, Flexibility Method, Preliminary Design or Assessment of the Bridge, Tension Deformations of the Suspenders

References

[1] Bridge Science Research Institute, Major Bridge Engineering Bureau, the Ministry of Railways: Suspension Bridge (Science and Technology Document Press, Beijing 1996)

[2] Bo-qin Zhu, Jing-ou Zhou, and Zhe-ming Xu: Structure mechanics (Tongji Univ. Press, Shanghai 2002)

[3] Kenneth M.Leet, Chia-Ming Uang, and Anne Gilbert: Fundamentals of Structural Analysis. 3rd ed. (McGraw-Hill Higher Education, Boston 2008)
