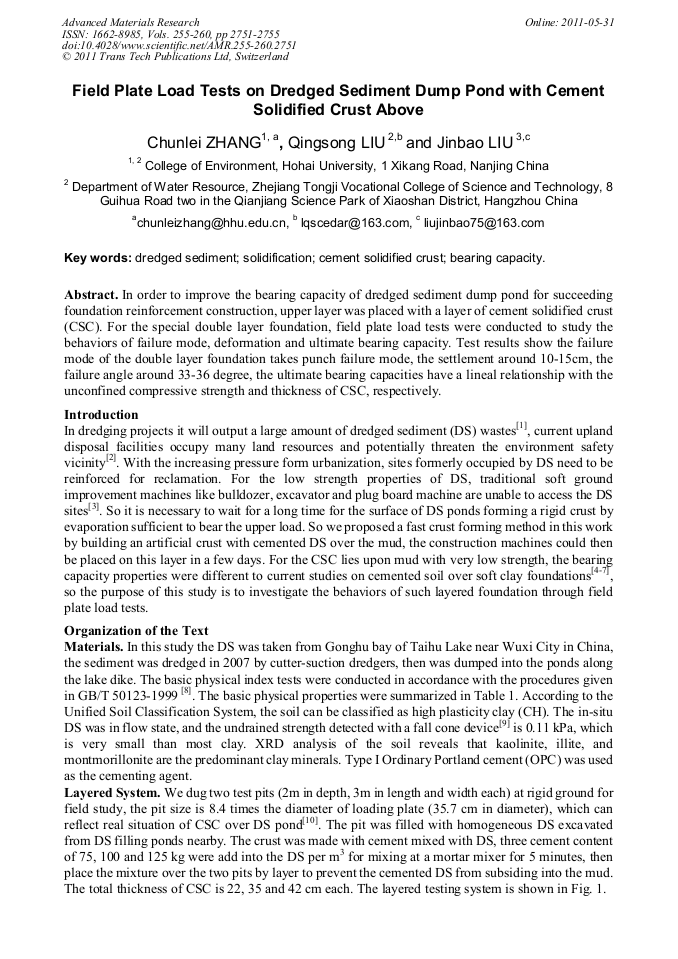

Field Plate Load Tests on Dredged Sediment Dump Pond with Cement Solidified Crust Above

Abstract:

In order to improve the bearing capacity of dredged sediment dump pond for succeeding foundation reinforcement construction, upper layer was placed with a layer of cement solidified crust (CSC). For the special double layer foundation, field plate load tests were conducted to study the behaviors of failure mode, deformation and ultimate bearing capacity. Test results show the failure mode of the double layer foundation takes punch failure mode, the settlement around 10-15cm, the failure angle around 33-36 degree, the ultimate bearing capacities have a lineal relationship with the unconfined compressive strength and thickness of CSC, respectively.

• Periodical: Advanced Materials Research (Volumes 255-260)
• Pages: 2751-2755
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.255-260.2751
• Online since: May 2011
• Authors: Chun Lei Zhang, Qing Song Liu, Jin Bao Liu
• Keywords: Bearing Capacity, Cement Solidified Crust, Dredged Sediment, Solidification

References

[1] W. Zhu, C.L. Zhang, H.L. Liu, et.al. The status of dredged spoils utilization. Environmental Science and Technology, Vol.25, No.4 (2002), pp.39-42 (In Chinese).

[2] W. Zhu, C.L. Zhang and C. F. Chiu Abraham. Soil–water transfer mechanism for solidified dredged materials. Journal of Geotechnical and Geoenvironmental Engineering, ASCE. Vol.133,No.5 (2007), pp.588-598.

DOI: 10.1061/(asce)1090-0241(2007)133:5(588)

[3] B.R. Ye. Technical issues must be considered in land reclamation by hydraulic filling method. Technology and Management of Port Engineering. No.2 (1994), pp.19-22.

[4] G.L. Yang. Study of ultimate bearing capacity of a soft soil foundation with a hard clay shell. J. Xiangtan Min. Inst. Vol.10, No.2 (1995), pp.51-56.

[5] C.Y. Hao and G.J. Chen. Engineering features of soft subgrade with relatively hard clay shell. China journal of highway and transfport, Vol.6, No.2 (1993), pp.68-74.

[6] N.C. Consoli, D. R. Francisco, and F. Anderson, Plate load tests on cemented soil layers overlaying weaker soil, Journal of Geotechnical and Geoenvironmental Engineering, ASCE. Vol.135, No.12 (2009), pp.1846-1856.

DOI: 10.1061/(asce)gt.1943-5606.0000158

[7] A. Thomé, M. Donato, N.C. Consoli, et al. Circular footings on a cemented layer above weak foundation soil. Canadian Geotechnical Journal, Vol.42, No.6 (2005), pp.1569-1584

DOI: 10.1139/t05-069

[8] Ministry of Construction P. R. China.. "Standard for soil test method." GB/T 50123-1999, Beijing, (1999). (in Chinese)

[9] ISO/TS 17892-6.Geotechnical investigation and testing - Laboratory testing of soil - Part 6: Fall cone test, (2004).

[10] Ministry of Construction P. R. China.. "Code for design of building foundation".GB 50007-2002, Beijing, (2002). (in Chinese)
