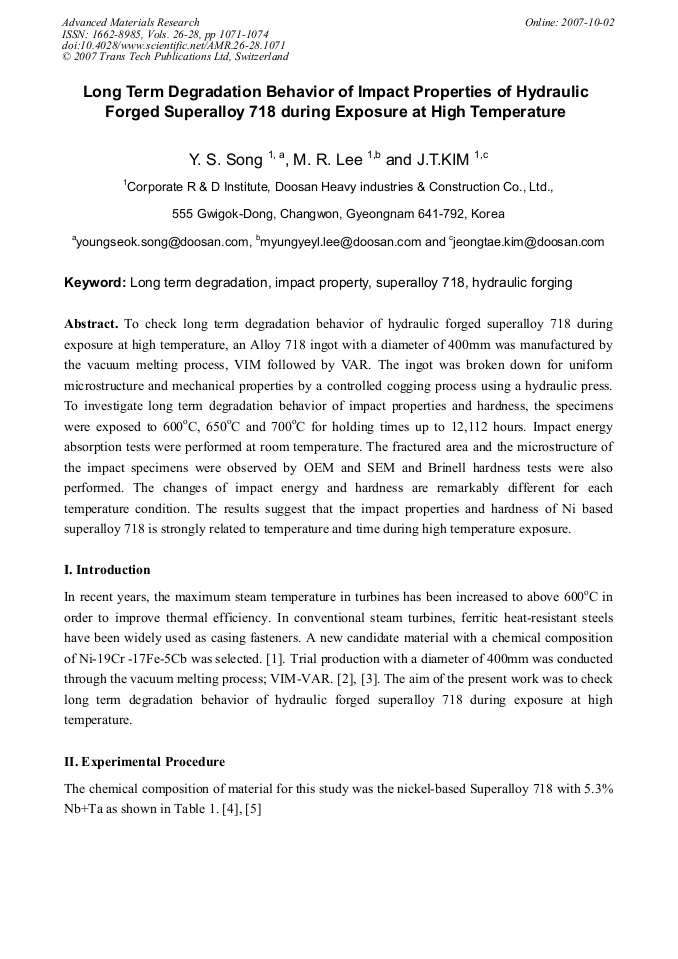

Long Term Degradation Behavior of Impact Properties of Hydraulic Forged Superalloy 718 during Exposure at High Temperature

Abstract:

To check long term degradation behavior of hydraulic forged superalloy 718 during exposure at high temperature, an Alloy 718 ingot with a diameter of 400mm was manufactured by the vacuum melting process, VIM followed by VAR. The ingot was broken down for uniform microstructure and mechanical properties by a controlled cogging process using a hydraulic press. To investigate long term degradation behavior of impact properties and hardness, the specimens were exposed to 600oC, 650oC and 700oC for holding times up to 12,112 hours. Impact energy absorption tests were performed at room temperature. The fractured area and the microstructure of the impact specimens were observed by OEM and SEM and Brinell hardness tests were also performed. The changes of impact energy and hardness are remarkably different for each temperature condition. The results suggest that the impact properties and hardness of Ni based superalloy 718 is strongly related to temperature and time during high temperature exposure.

You might also be interested in these eBooks

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 26-28)

Pages:

1071-1074

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.26-28.1071

Citation:

Cite this paper

Online since:

October 2007

Authors:

Young Seok Song, M.R. Lee, Jeong Tae Kim

Keywords:

Hydraulic Forging, Impact Property, Long Term Degradation, Superalloy 718

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Matthew J. Donachie ed.: Superalloys: A Technical Guide (ASM, 2002), pp.58-66.

Google Scholar

[2] Y. S. Song, M. R. Lee and J. T. Kim: The manufacturing process and mechanical properties of wrought Ni-base superalloy 718 for Power Plant's Stud Bolt, Korean Institute of Metallurgy and Materials spring meeting (2004), p.3.

Google Scholar

[3] Y. S. Song, M. R. Lee and J. T. Kim: Effect of grain size on the tensile strength and the low cycle fatigue at elevated temperature of alloy 718 cogged by open die forging press, Proceedings of Superalloy 718, 625, 706 (2005), p.539~548.

DOI: 10.7449/2005/superalloys_2005_539_549

Google Scholar

[4] Y. S. Song, M. R. Lee and J. T. Kim: Evaluation of Optimum Process Parameters of Superalloy 718 in Hydraulic Forging, Proceedings of THERMEC 2006, p.430.

Google Scholar

[5] Y. S. Song, M. R. Lee and J. T. Kim: Manufacturing and Analysis of Mechanical Properties of Superalloy 718 in Hydraulic Forging, Materials science forum Vol. 539-543(2007), p.3124~3129.

DOI: 10.4028/www.scientific.net/msf.539-543.3124

Google Scholar
