Surface Roughness of Cu-Be Alloy (C17200) Rod Alloy Produced by Horizontal Type Continuous Casting Process

Sang Kil Lee; H.S. Lee; Sung Chul Lim; T.K. Jung; K.H. Kim; Hyouk Chon Kwon; W.M. Jung

doi:10.4028/www.scientific.net/AMR.26-28.551

Paper Titles

Effect of Additive Powder on Microstructural Evolution in the Wide-Gap Brazed Region by In Situ High Temperature ESEM
p.535

A Study on the Welding Characteristics of Dissimilar Metal Using a High Power CW Nd:YAG Laser
p.539

Rheocast of Al-Si-Mg Alloy Containing 1Mass% Iron
p.543

Improvement of the Accuracy of High Temperature Slab Weight in Continuous Casting
p.547

Surface Roughness of Cu-Be Alloy (C17200) Rod Alloy Produced by Horizontal Type Continuous Casting Process
p.551

Effects of Electric Pulse on Solidification Structure of KS282 Alloy
p.555

Fatigue Crack Characteristics of Friction Stir Welded Aluminum Alloy Joints
p.559

Alignment of Primary Phase of a Binary Alloy during Solidification
p.563

Microstructure and Properties of Cu-3.2Ni-0.75Si-0.3Zn Alloy for Lead Frame
p.569

HomeAdvanced Materials ResearchAdvanced Materials Research Vols. 26-28Surface Roughness of Cu-Be Alloy (C17200) Rod...

Surface Roughness of Cu-Be Alloy (C17200) Rod Alloy Produced by Horizontal Type Continuous Casting Process

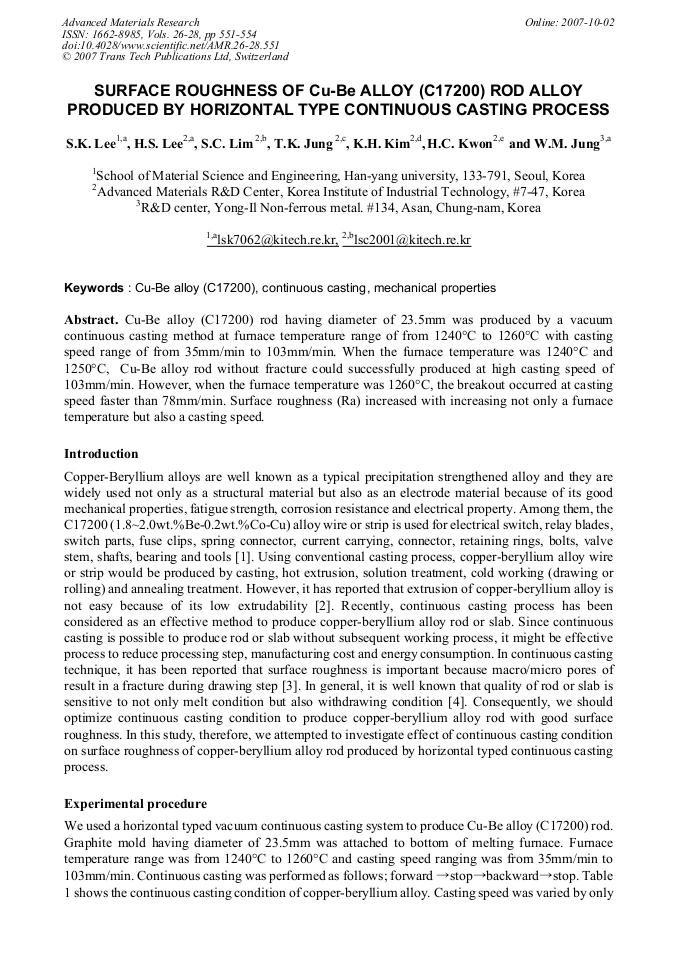

Abstract:

Cu-Be alloy (C17200) rod having diameter of 23.5mm was produced by a vacuum continuous casting method at furnace temperature range of from 1240°C to 1260°C with casting speed range of from 35mm/min to 103mm/min. When the furnace temperature was 1240°C and 1250°C, Cu-Be alloy rod without fracture could successfully produced at high casting speed of 103mm/min. However, when the furnace temperature was 1260°C, the breakout occurred at casting speed faster than 78mm/min. Surface roughness (Ra) increased with increasing not only a furnace temperature but also a casting speed.
