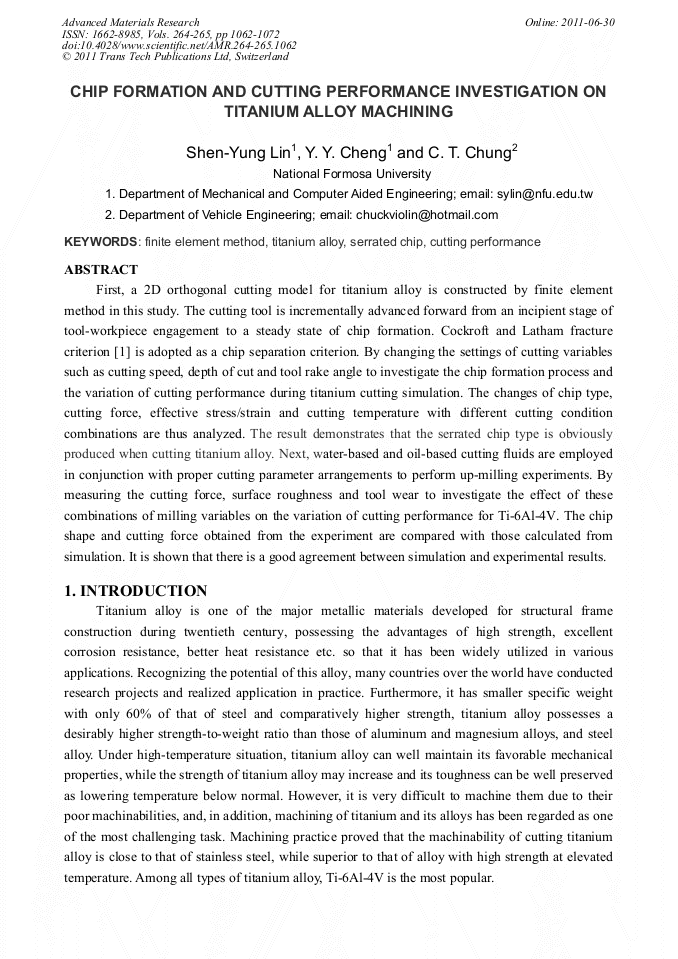

Chip Formation and Cutting Performance Investigation on Titanium Alloy Machining

Abstract:

First, a 2D orthogonal cutting model for titanium alloy is constructed by finite element method in this study. The cutting tool is incrementally advanced forward from an incipient stage of tool-workpiece engagement to a steady state of chip formation. Cockroft and Latham fracture criterion [1] is adopted as a chip separation criterion. By changing the settings of cutting variables such as cutting speed, depth of cut and tool rake angle to investigate the chip formation process and the variation of cutting performance during titanium cutting simulation. The changes of chip type, cutting force, effective stress/strain and cutting temperature with different cutting condition combinations are thus analyzed. The result demonstrates that the serrated chip type is obviously produced when cutting titanium alloy. Next, water-based and oil-based cutting fluids are employed in conjunction with proper cutting parameter arrangements to perform up-milling experiments. By measuring the cutting force, surface roughness and tool wear to investigate the effect of these combinations of milling variables on the variation of cutting performance for Ti-6Al-4V. The chip shape and cutting force obtained from the experiment are compared with those calculated from simulation. It is shown that there is a good agreement between simulation and experimental results.

• Periodical: Advanced Materials Research (Volumes 264-265)
• Pages: 1062-1072
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.264-265.1062
• Online since: June 2011
• Authors: Shen Yung Lin, Y.Y. Cheng, C.T. Chung
• Keywords: Cutting Performance, Finite Element Model (FEM), Serrated Chip, Titanium Alloy

References

[1] S.E. Clift, P. Hartley, C.E.N. Sturgess an G.W. Rowe, Fracture initiation in plane strain forging, Proc. 25th Int. Conf., Birmingham, (1985), 413-419.

DOI: 10.1007/978-1-349-07529-4_48

[2] M. Rahman, Z.G. Wang, and Y.S. Wong, A review on high-speed machining of titanium alloys, JSME Int. J. Series C, Vol. 49 (2006), 11-20.

[3] F. Nabhani, Machining of aerospace titanium alloys, Robot. Comput. Integr. Manuf., Vol. 17 (2001), 99-106.

[4] A. Jawaid, S. Sharif and S. Koksal, Evaluation of wear mechanisms of coated carbide tools when face milling titanium alloy, J. Mater. Process. Technol., Vol. 99 (2000), 266-274.

DOI: 10.1016/s0924-0136(99)00438-0

[5] J. Hua and R. Shivpuri, Prediction of chip morphology and segmentation during the machining of titanium alloys, J. Mater. Process. Technol., Vol. 150 (2004), 124-133.

DOI: 10.1016/j.jmatprotec.2004.01.028

[6] S.Y. Hong, I. Markus and W.C. Jeong, New cooling approach and tool life improvement in cryogenic machining of titanium alloy Ti-6Al-4V, Int. J. Mach. Tools Manuf., Vol. 41 (2001), 2245-2260.

DOI: 10.1016/s0890-6955(01)00041-4

[7] Z.A. Zoya and R. Krishnamurthy, The performance of CBN tools in the machining of titanium alloys, J. Mater. Process. Technol., Vol. 100 (2000), 80-86.

DOI: 10.1016/s0924-0136(99)00464-1

[8] T. Kitagawa, A. Kubo and K. Maekawa, Temperature and wear of cutting tools in high-speed machining of Inconel 718 and Ti-6Al-6V-2Sn, Wear, Vol. 202 (1997), 142-148.

DOI: 10.1016/s0043-1648(96)07255-9

[9] R.R. Boyer, An overview on the use of titanium in the aerospace industry, Mater. Sci. Eng. A, Vol. 213 (1996), 103-114.

[10] Y. Su, N. He, L. Li and X.L. Li, An experimental investigation of effects of cooling/lubrication conditions on tool wear in high-speed end milling of Ti-6Al-4V, Wear, Vol. 261 (2006), 760-766.

DOI: 10.1016/j.wear.2006.01.013

[11] E.O. Ezugwu, R.B. Da Silva, J. Bonney, A.R. Machado, Evaluation of the performance of CBN tools when turning Ti-6Al-4V alloy with high pressure coolant supplies, Int. J. Mach. Tools Manuf., Vol. 45 (2005), 1009-1014.

DOI: 10.1016/j.ijmachtools.2004.11.027

[12] Z.G. Wang, Y.S. Wong and M. Rahman, High-speed milling of titanium alloys using binderless CBN tools, Int. J. Mach. Tools Manuf., Vol. 45 (2005), 105-114.

DOI: 10.1016/j.ijmachtools.2004.06.021
