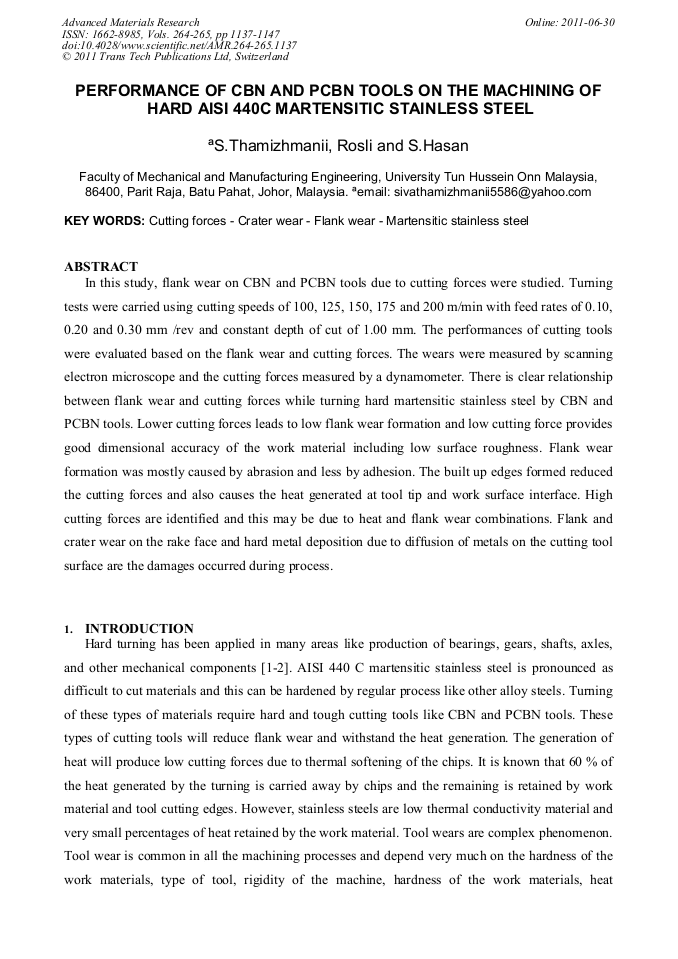

Performance of CBN and PCBN Tools on the Machining of Hard AISI 440C Martensitic Stainless Steel

Abstract:

In this study, flank wear on CBN and PCBN tools due to cutting forces were studied. Turning tests were carried using cutting speeds of 100, 125, 150, 175 and 200 m/min with feed rates of 0.10, 0.20 and 0.30 mm/rev and constant depth of cut. The performances of tools were evaluated based on the flank wear and cutting forces. There is clear relationship between flank wear and cutting forces while turning hard martensitic stainless steel by CBN and PCBN tools. Low cutting forces leads to low flank wear formation and low cutting forces provided good dimensional accuracy of the work material including low surface roughness. Flank wear formation was mostly caused by abrasion and adhesion. The built up edges formed reduced the cutting forces and also causes the heat generated at tool tip and work interface. High cutting forces are identified and this may be due to heat and flank wear combinations. Flank and crater wear on the rake face and hard metal deposition due to diffusion of metals on the cutting tool surface are the damages occurred during process.

• Periodical: Advanced Materials Research (Volumes 264-265)
• Pages: 1137-1147
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.264-265.1137
• Online since: June 2011
• Authors: S. Thamizhmanii, Rosli Ahmad, S. Hasan
• Keywords: Crater Wear, Cutting Force, Flank Wear, Martensitic Stainless Steel

References

[1] W. Grzesik, Influence of tool wear om surface roughness in hard turning using different shaped ceramic tools, Wear, (2007), doi: 10. 116/j. wear. 11. 001.

DOI: 10.1016/j.wear.2007.11.001

[2] S. Thamizhmanii and SHasan, Measurement of surface roughness and flank wear on hard martensitic stainless steel by CBN and PCBN cutting tools, Journal of Achievements in Materials and Manufacturing Engineering, Volume 31, (2008), Issue 2.

DOI: 10.4028/www.scientific.net/amr.264-265.1137

[3] G. Poulachon, B.P. Bandyopadhyay, I.S. Jawahir, S. Pheulpin and E. Seguin, The influence of the micro-structure of hardened tool steel work piece on the wear of PCBN cutting tools, International Journal of Machines Tools and Manufacture 43, (2003).

DOI: 10.1016/s0890-6955(02)00170-0

[4] A. More, Wenping Jiang, W.D. Brown, and Ajay P. Malshe, Tool wear and machining performance of CBN-TiN coated carbide inserts and PCBN compact inserts in turning AISI 4340 hardened steel, International Journal of Materials Processing Technology volume 180, (2006).

DOI: 10.1016/j.jmatprotec.2006.06.013

[5] N.A. Abukhshim, P.T. Matinvenga, and M.A. Sheikh, (2005). Investigation of heat partition in high speed turning of high strength alloy steel. International Journal of Machine Tools and Manufacture, 45, (2005), 1687-1695.

DOI: 10.1016/j.ijmachtools.2005.03.008

[6] G. Chryssolouris, Turning of hardened steels using CBN tools. Journal of Metal Working Volume 2, (1982), pp.100-106.

DOI: 10.1007/bf02834207

[7] E.O. Ezugwu, and K.A. Olajire, Evaluation of machining performance of martensitic stainless steel. Tribology Letters, Volume 12, (2002), No. 4.

[8] W.Y.H. Liew, B.K. A Ngoi, and Y.G. Lu, Wear characteristics of PCBN tools in the ultra – precision machining of stainless steel at low speeds. Wear, (2003), 254, 265-277.

DOI: 10.1016/s0043-1648(03)00002-4

[9] W.Y.H. Liew, S. Yuan, and B.K. A Ngoi, Evaluation of machining performance of STAVAX with PCBN tools. International Journal Advanced Manufacturing Technology, 23, 11-29, (2004), doi: 10. 1007/s 00170-1520-y.

DOI: 10.1007/s00170-002-1520-y

[10] J. Barry, and G. Byrne, Cutting tool wear in the machining of hardened steels, Part I, Cubic boron nitride cutting tool. Wear, (2001), 247, 139-151.

DOI: 10.1016/s0043-1648(00)00531-7

[11] I. Korkut, and M.A. Donertas, The influence of feed rate and cutting speed on the cutting forces, surface roughness and tool – chip contact length during face milling. Materials and Design 28, (2007), 308-312.

DOI: 10.1016/j.matdes.2005.06.002

[12] S.E. Oraby, and D.R. Hayburst, Tool life determination based on the measurement of wear and tool force ratio variation. International Journal of Machine Tools and Manufacture, 44, (2004), 1261- 1269.

DOI: 10.1016/j.ijmachtools.2004.04.018

[13] S. Agrawal, A.K. Chakrabarti, and Chattopadhyay, A study of the machining of ast austenitic stainless steels with carbide tools. Journal of Materials Processing Technology 52, (1995), pp.610-620.

DOI: 10.1016/0924-0136(94)01616-9

[14] P.S. Pawade, S. Suhas , Joshi. P.K. Brahmankar, and M. Rahman,. An investigation of cutting forces and surface damage in high speed turning of Inconel 718. Journal of Materials Processing Technology, (2007).

DOI: 10.1016/j.jmatprotec.2007.04.049

[15] Li Qian and Mohammad Hossan, Effect of cutting force in turning hardened tool steels with CBN inserts. Journal of MaterialsProcessing Technology, 191, (2007), 274-278.

DOI: 10.1016/j.jmatprotec.2007.03.022

[16] M. Calamaz, D. Coupard, and Franck Girot, A new model for 2D numerical simulation of serrated chip formation when machining titanium alloy Ti-6Al-4V. International Journal of Machine Tools and Manufacture, 48, (2008), 275-288.

DOI: 10.1016/j.ijmachtools.2007.10.014

[17] C.T. Kwok, K.H. Lo, F.T. Cheng and H.C. Man, Effects of processing condition on the corrosion performance of Laser surface melted AISI 440 C martensitic stainless steel, Surface and Coatings Technology, 166, pp.84-90, (2003).

DOI: 10.1016/s0257-8972(02)00782-x

[18] K.H. Lo, F.T. Cheng, C.T. Kowk and H.C. Man, Effects of laser treatments on cavitations erosion and corrosion of AISI 440 C martensitic stainless steel, Materials Letters 58, pp -88-93, (2003).

DOI: 10.1016/s0167-577x(03)00421-x
