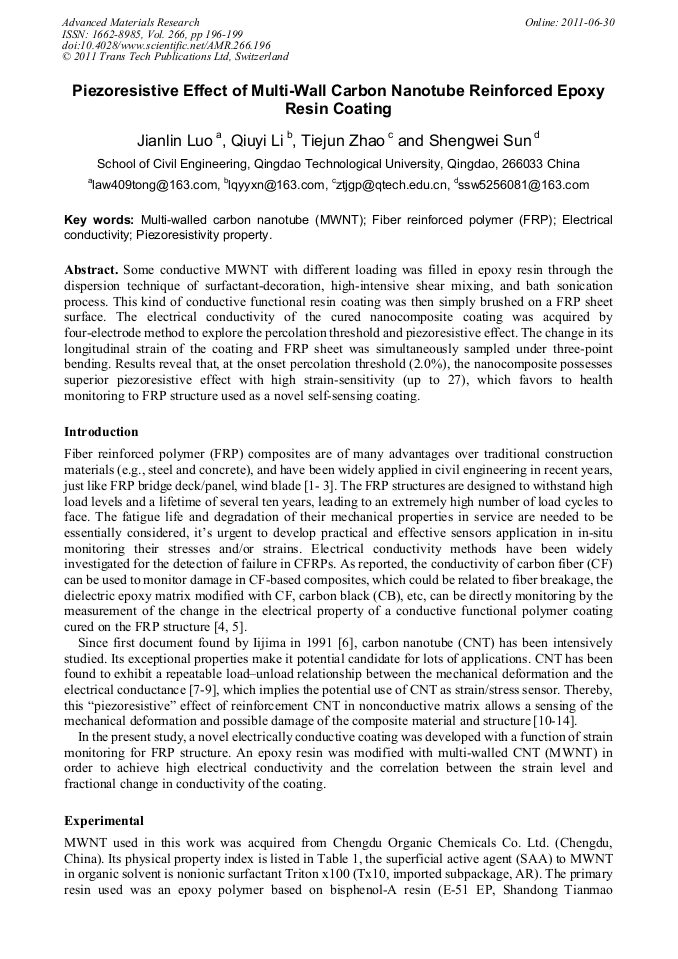

Piezoresistive Effect of Multi-Wall Carbon Nanotube Reinforced Epoxy Resin Coating

Abstract:

Some conductive MWNT with different loading was filled in epoxy resin through the dispersion technique of surfactant-decoration, high-intensive shear mixing, and bath sonication process. This kind of conductive functional resin coating was then simply brushed on a FRP sheet surface. The electrical conductivity of the cured nanocomposite coating was acquired by four-electrode method to explore the percolation threshold and piezoresistive effect. The change in its longitudinal strain of the coating and FRP sheet was simultaneously sampled under three-point bending. Results reveal that, at the onset percolation threshold (2.0%), the nanocomposite possesses superior piezoresistive effect with high strain-sensitivity (up to 27), which favors to health monitoring to FRP structure used as a novel self-sensing coating.

You might also be interested in these eBooks

China Postdoctoral Forum on Materials Science and Engineering

View Preview

Info:

Periodical:

Advanced Materials Research (Volume 266)

Pages:

196-199

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.266.196

Citation:

Cite this paper

Online since:

June 2011

Authors:

Jian Lin Luo, Qiu Yi Li, Tie Jun Zhao, Sheng Wei Sun

Keywords:

Electrical Conductivity, Fiber Reinforced Polymer (FRP), Multi-Walled Carbon Nanotube (MWCNT), Piezoresistivity Property

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] P. Kumar and K. Chandrashekhara: Constr. Build. Mater. Vol. 18 (2004), p.35.

Google Scholar

[2] B. L. Wang, S.H. Li, and Y. W. Chen: Enging. Plastic. Appl. Vol. 4 (2008), p.265.

Google Scholar

[3] B.G. Han and J.P. Ou: Sens. Actuators A Vol. 138 (2007), p.294.

Google Scholar

[4] J.W. Lu, W.L. Wang, K.J. Liao and B.Y. Wan: Int. J. Modern Phys. B Vol. 19 (2005), p.627.

Google Scholar

[5] W. Zhang, J. Suhr, and N. Koratkar: Smart Mater. Sturct. Vol. 18 (2009), p.551.

Google Scholar

[6] I. Iijima: Nature Vol. 354 (1991), p.56.

Google Scholar

[7] E. Thostenson, Z. Ren and T.W. Chou: Compos. Sci. Technol. Vol. 61 (2001), p.1899.

Google Scholar

[8] J. Sandler, M.S. P Shaffer, T. Prasse, W. Bauhofer, K. Schulte and A.H. Windle: Polymer Vol. 40 (1999), p.5967.

DOI: 10.1016/s0032-3861(99)00166-4

Google Scholar

[9] X. Li, C. Levy, and L. Elaadil: Nanotechnology Vol. 19 (2008), p.455.

Google Scholar

[10] J.L. Luo and Z. D. Duan, in: 1st International Conference of the Chinese Society of Micro/Nano Technology, TTP publisher, Switzerland, Adv. Mater. Res. Vols. 60-61 (2009), p.475.

Google Scholar

[11] B.G. Han, X. Yu, and E. Kwon: Nanotechnology Vol. 20 (2009), p.445501.

Google Scholar

[12] G.Y. Li, P. M. Wang, and X.H. Zhao: Carbon Vol. 48 (2005), p.1239.

Google Scholar

[13] G.Y. Li, P. M. Wang, and X.H. Zhao: Cem. Concr. Compos. Vol. 29 (2007), p.377.

Google Scholar

[14] J.L. Luo, Z. D. Duan, and H. Li: Phys. Stat. Sol. A Vol. 206 (2009), p.2738.

Google Scholar
