Mechanical Properties of Powder Injection Molded Ni-Based Superalloys

Abstract:

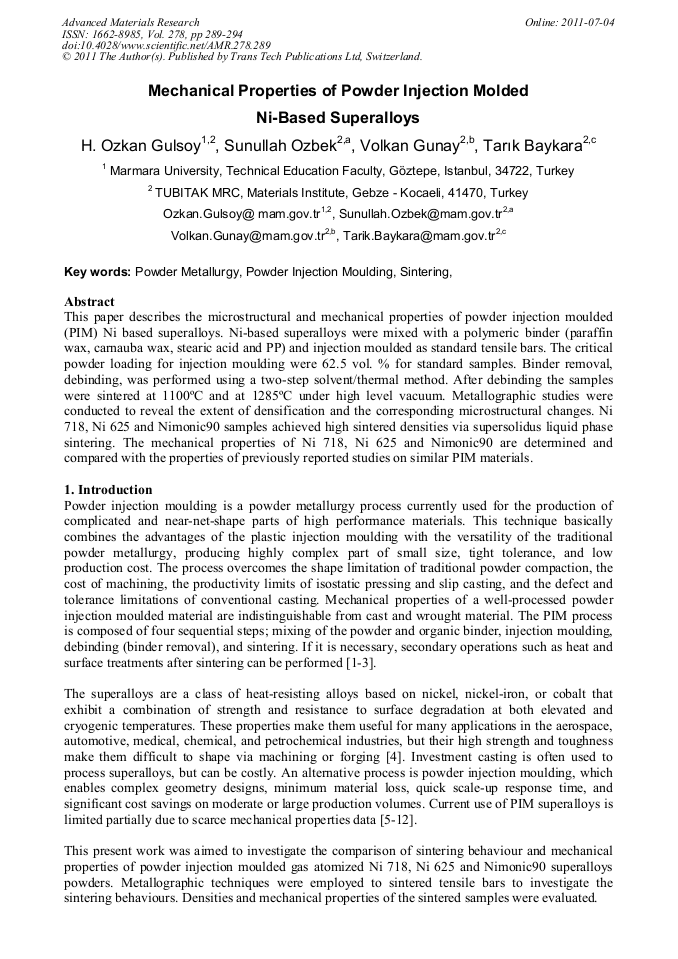

This paper describes the microstructural and mechanical properties of powder injection moulded (PIM) Ni based superalloys. Ni-based superalloys were mixed with a polymeric binder (paraffin wax, carnauba wax, stearic acid and PP) and injection moulded as standard tensile bars. The critical powder loading for injection moulding were 62.5 vol. % for standard samples. Binder removal, debinding, was performed using a two-step solvent/thermal method. After debinding the samples were sintered at 1100°C and at 1285°C under high level vacuum. Metallographic studies were conducted to reveal the extent of densification and the corresponding microstructural changes. Ni 718, Ni 625 and Nimonic90 samples achieved high sintered densities via supersolidus liquid phase sintering. The mechanical properties of Ni 718, Ni 625 and Nimonic90 are determined and compared with the properties of previously reported studies on similar PIM materials.

• Periodical: Advanced Materials Research (Volume 278)
• Pages: 289-294
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.278.289
• Online since: July 2011
• Authors: H. Ozkan Gulsoy, Sunullah Ozbek, Volkan Gunay, Tarik Baykara
• Keywords: Powder Injection Moulding, Powder metallurgy, Sintering

References

[1] R.M. German and A. Bose, in: Injection molding of metals and ceramics, Princeton, NJ, Metal Powder Industries Federation (1997).

[2] R.M. German, in: Powder injection molding, Princeton, NJ, MPIF (1990).

[3] H.O. Gulsoy, S. Ozbek and T. Baykara: Powder Metall. 2007, 50, (2), p.120.

[4] ASM Specialty Handbook: Nickel, Cobalt, and Their Alloys, compiled by J.R. Davis, ASM International, Materials Park, OH. (2000).

[5] J.C. LaSalle, B. Sherman, C. Scott, K. Bartone, R. Bellows and D. Lowery, in: Advances in Powder Metallurgy & Particulate Materials, compiled by C.L. Rose and M.H. Thibodeau, MPIF, Princeton, NJ, (1999), p.6. 39.

[6] B. Holmes, P. Hatfield and B. Sherman, in: Advances in Powder Metallurgy and Particulate Materials, compiled by C.L. Rose and M.H. Thibodeau, MPIF, Princeton, NJ, (1999), p.6. 82.

[7] J.J. Valencia, T. McCabe, K. Hens, J.O. Hansen and A. Bose, in: Conference on Superalloys 718, 625, 706, and Various Derivatives, compiled by E.A. Loria , TMS, Pittsburgh, PA, (1994), p.935.

DOI: 10.7449/1994/superalloys_1994_935_945

[8] A. Bose, R. Schmees, J.J. Valencia and J. Spirko, in: Advances in Powder Metallurgy and Particulate Materials, compiled by R.A. McKotch and R. Webb, MPIF, Princeton, NJ, (1997), p.18. 99.

[9] K.F. Hens, J.A. Grohowski, R.M. German, J.J. Valencia and T. McCabe, in: Advances in Powder Metallurgy & Particulate Materials, compiled by C. Lall and A.J. Neupaver, MPIF, Princeton, NJ, (1994), Vol 4, p.137.

[10] J.M. Contreras, A.J. Morales and J.M. Torralba: Powder Metallurgy, 2008 Vol 51 No 2, p.103.

[11] B.N. Nobrega1, W. Ristow and R. Machado: Powder Metallurgy, 2008 Vol 51 No 2, p.107.

[12] J. Johnson, L.K. Tan, P. Suri and R.M. German, in: PIM Compilation III: Secondary Processing and Material Properties, Metal Powder Industries Federation, Denver, CO. (2007), vol 4, p.89.
