Fuzzy PID Theory Based Digital Switch Power Supply

Abstract:

In this paper, a new digital switch power supply is introduced, which is based on TL494 PWM, half-bridge converter circuit and PIC16F72. This system employs fuzzy PID algorithm, which not only take the advantage of fuzzy controller, like good robustness, instant response, small overshoots, but also play the characteristics, such as high precision and dynamic tracing, to the full. After measurement repeatedly, the voltage regulation is 0.17%, load regulation is -0.47%, peak-to-peak value of ripple voltage is within 0.1V, and full load efficiency can reach 88.15%.

You might also be interested in these eBooks

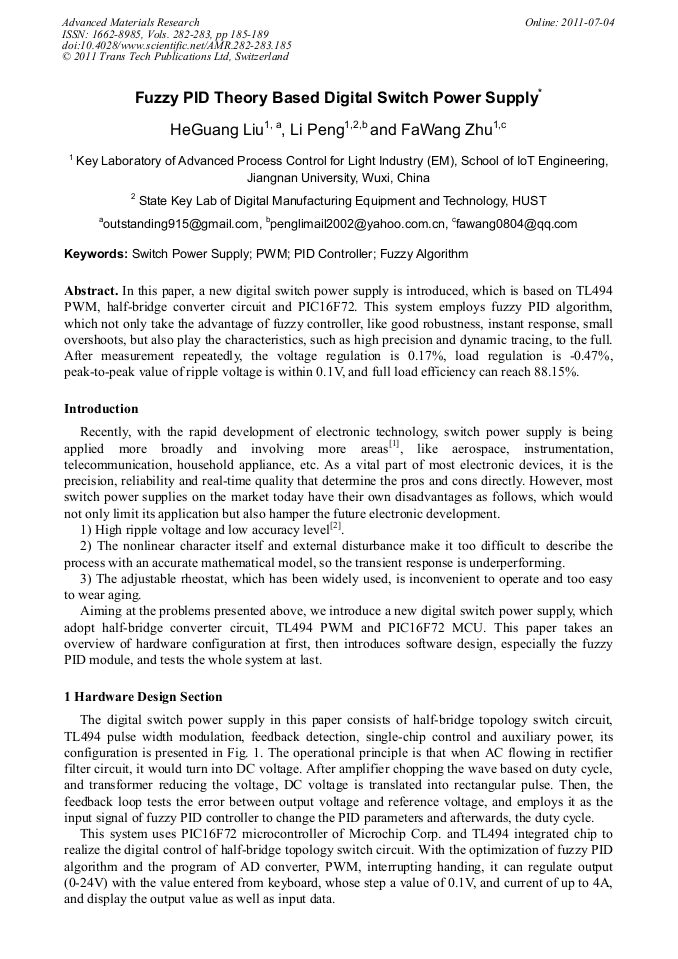

View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 282-283)

Pages:

185-189

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.282-283.185

Citation:

Cite this paper

Online since:

July 2011

Authors:

He Guang Liu, Li Peng, Fa Wang Zhu

Keywords:

Fuzzy Algorithm, PID Controller, PWM, Switch Power Supply

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

Citation:

References

[1] Liu Wenjun, Luo Yufeng: Design and Matlab Simulation of Switching Power Supply PlD Based on Fuzzy Control, Control System Vol. 22, No. 10(2006), pp.29-30, 65.

Google Scholar

[2] B. -R. Lin: Analysis of neural and fuzzy power electronic control, IEE Proc. -Sci. Meus. Technol. Vol. 144, No. 1(1997), pp.25-33.

Google Scholar

[3] K.S. Tang, Kim Fung Man, Guanrong Chen, SamKwong: An Optimal Fuzzy PID Controller, IEEE Transactions on Industrial Electronics Vol. 48, No. 4(2001), pp.757-764.

DOI: 10.1109/41.937407

Google Scholar

[4] Rohin M. Hilloowala, Adel M. Sharaf: A Rule-Based Fuzzy Logic Controller for a PWM Inverter in a Stand Alone Wind Energy Conversion Scheme, IEEE Transactions On Industrial Applications Vol. 32, No. 1(1996), pp.57-65.

DOI: 10.1109/28.485813

Google Scholar

[5] Chen Jie: Switch Power Research Based on Fuzzy PID Control (Hubei Technology University Publications, Wuhan 2008).

Google Scholar

[6] J. Wing-Chi So, Chi K. Tse and Yim-Shu Lee: Development of a Fuzzy Logic Controller for DC/DC Converters Design, Computer Simulation, and Experimental Evaluation, IEEE Transactions on Industrial Electronics Vol. 11, No. 1(1996), pp.24-31.

DOI: 10.1109/63.484413

Google Scholar

[7] J. Liu Dianwen: Digital control switch power design, Microcomputer information Vol. 24, No. 4(2008), pp.224-226.

Google Scholar
