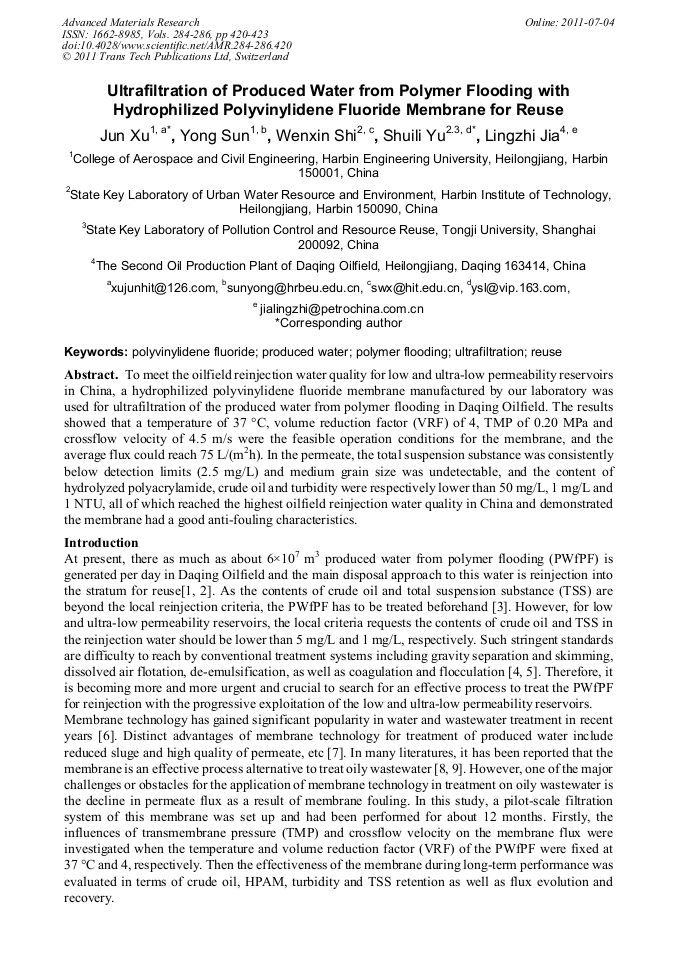

Ultrafiltration of Produced Water from Polymer Flooding with Hydrophilized Polyvinylidene Fluoride Membrane for Reuse
To meet the oilfield reinjection water quality for low and ultra-low permeability reservoirs in China, a hydrophilized polyvinylidene fluoride membrane manufactured by our laboratory was used for ultrafiltration of the produced water from polymer flooding in Daqing Oilfield. The results showed that a temperature of 37 °C, volume reduction factor (VRF) of 4, TMP of 0.20 MPa and crossflow velocity of 4.5 m/s were the feasible operation conditions for the membrane, and the average flux could reach 75 L/(m2h). In the permeate, the total suspension substance was consistently below detection limits (2.5 mg/L) and medium grain size was undetectable, and the content of hydrolyzed polyacrylamide, crude oil and turbidity were respectively lower than 50 mg/L, 1 mg/L and 1 NTU, all of which reached the highest oilfield reinjection water quality in China and demonstrated the membrane had a good anti-fouling characteristics.
Xiaoming Sang, Pengcheng Wang, Liqun Ai, Yungang Li and Jinglong Bu
J. Xu et al., "Ultrafiltration of Produced Water from Polymer Flooding with Hydrophilized Polyvinylidene Fluoride Membrane for Reuse", Advanced Materials Research, Vols. 284-286, pp. 420-423, 2011
