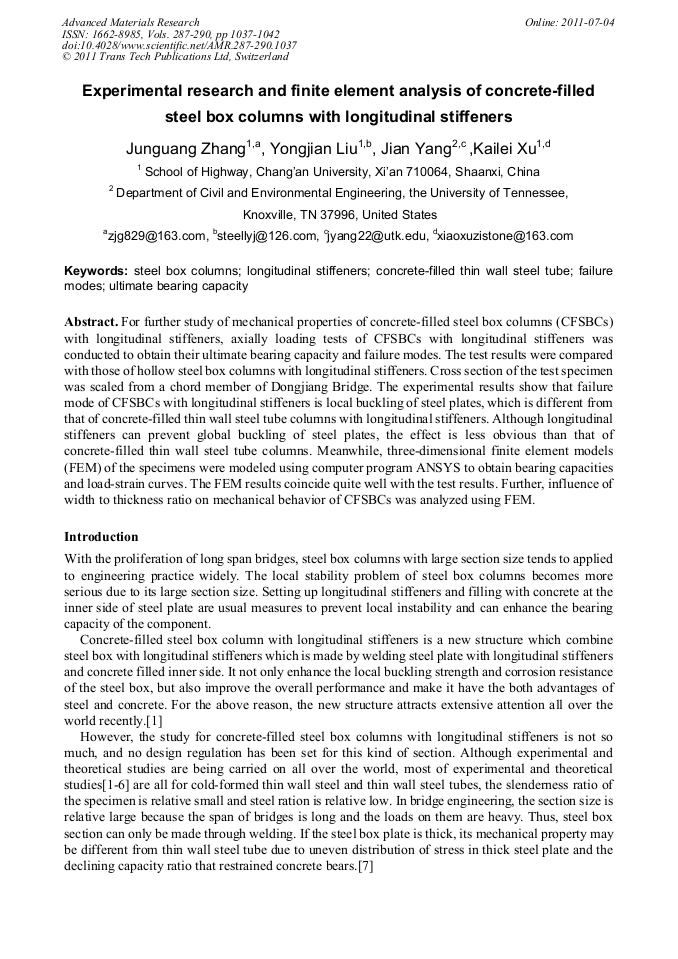

Experimental Research and Finite Element Analysis of Concrete-Filled Steel Box Columns with Longitudinal Stiffeners

Abstract:

For further study of mechanical properties of concrete-filled steel box columns (CFSBCs) with longitudinal stiffeners, axially loading tests of CFSBCs with longitudinal stiffeners was conducted to obtain their ultimate bearing capacity and failure modes. The test results were compared with those of hollow steel box columns with longitudinal stiffeners. Cross section of the test specimen was scaled from a chord member of Dongjiang Bridge. The experimental results show that failure mode of CFSBCs with longitudinal stiffeners is local buckling of steel plates, which is different from that of concrete-filled thin wall steel tube columns with longitudinal stiffeners. Although longitudinal stiffeners can prevent global buckling of steel plates, the effect is less obvious than that of concrete-filled thin wall steel tube columns. Meanwhile, three-dimensional finite element models (FEM) of the specimens were modeled using computer program ANSYS to obtain bearing capacities and load-strain curves. The FEM results coincide quite well with the test results. Further, influence of width to thickness ratio on mechanical behavior of CFSBCs was analyzed using FEM.

• Periodical: Advanced Materials Research (Volumes 287-290)
• Pages: 1037-1042
• DOI: https://doi.org/10.4028/www.scientific.net/AMR.287-290.1037
• Online since: July 2011
• Authors: Jun Guang Zhang, Yong Jian Liu, Jian Yang, Kai Lei Xu
• Keywords: Concrete-Filled Thin Wall Steel Tube, Failure Mode, Longitudinal Stiffeners, Steel Box Columns, Ultimate Bearing Capacity

References

[1] Zhibin WANG, Zhong TAO. Industrial Construction, Vol.37(12), (2007)pp.13-17. (in Chinese)

[2] Yaochun ZHANG, Yong CHEN. Journal of Building Structures,Vol.27(5)(2006),pp.16-22. (in Chinese)

[3] Zhong Tao, Linhai Han, Zhibin Wang. Journal of constructional steel research, Vol.61(7) (2005),pp.962-983.

[4] Hong HUANG, Yi LI, Ange ZHANG. Railway Engineering, Vol.12, (2009),pp.113-115. (in Chinese)

[5] Ge H B, Usami T.Strength of concrete-filled thin-walled steel box columns: experiment.Journal of Structural Engineering, ASCE, (1992),118(11):3006-3054.

DOI: 10.1061/(asce)0733-9445(1992)118:11(3036)

[6] Kwon Y B, Song J Y, Kon K S. The structural behaviour of concrete-filled steel piers[C]//Proceedings of 16th congress of IABSE, Iucerne, Switzrland, (2000).

DOI: 10.2749/222137900796299075

[7] Shaohuai CAI. Modern Steel Tube Confined Concrete Structures. Beijing: China Communications Press. (in Chinese)(2003)

[8] YongJian LIU, JunGuang ZHANG, JianChao HUANG, et al．Journal of Architecture and Civil Engineering,( 2008), Vol.25(3),pp.61-65. (in Chinese)

[9] Linhai HAN.Concrete-filled Steel Tubular Structure-Theory and Practice .Beijing:Science Press, (in Chinese) (2004).

[10] Neogi P.K. Sen,H.K and Chapman J.C..1969.Concrete filled tubular steel columns under eccentric load-ing.The Structural Enginerr, Vol.47(5),pp.187-195

[11] Tomii,M.and Sakino,K..1979c.Experimental studies on concrete filled square steel tubular beam-columns subjected to monotonic shearing force and constant axial force.Trans.of AIJ,No.281,Tokyo,Japan,81-90

DOI: 10.3130/aijsaxx.281.0_81

[12] Shakir-Khalil,H.Further tests on concrete-filled rectangular hollow section columns.The Structural Engineer. Vol.68(20) (1990),pp.405-413

[13] Zeghiche,J.and Chaoui,K..2005.An experimental behaviour of concrete-filled steel tubular columns. Journal of Constructional Steel Research, Vol.61(1):53-66.

DOI: 10.1016/j.jcsr.2004.06.006
