Paper Titles
Evaluation of the Mechanical Properties of Injection Moulded Hemp Fibre Reinforced Polypropylene Composites
p.303
Natural Fibre-Reinforced Thermoplastics Processed by Rotational Moulding
p.307
Numerical Study of Functionally Graded Materials
p.311
Accelerated Weathering of Modified Wood Flour Plastic Composites
p.315
Influence of Alkali Treatment on the Interfacial Bond Strength of Industrial Hemp Fibre Reinforced Epoxy Composites: Effect of Variation from the Ideal Stoicheometric Ratio of Epoxy Resin to Curing Agent
p.319
The Effects of Residual Lignin Content on Wood Fibre Reinforced Polypropylene Composites
p.323
Electrical Spectroscopy Studies of Organic/Inorganic Nano Composites
p.327
Improvement of the Red Mud Polymer-Matrix Composites by Organophillization of Red Mud
p.333
Hemp Fibre Reinforced Poly(Lactic Acid) Composites
p.337

Influence of Alkali Treatment on the Interfacial Bond Strength of Industrial Hemp Fibre Reinforced Epoxy Composites: Effect of Variation from the Ideal Stoicheometric Ratio of Epoxy Resin to Curing Agent

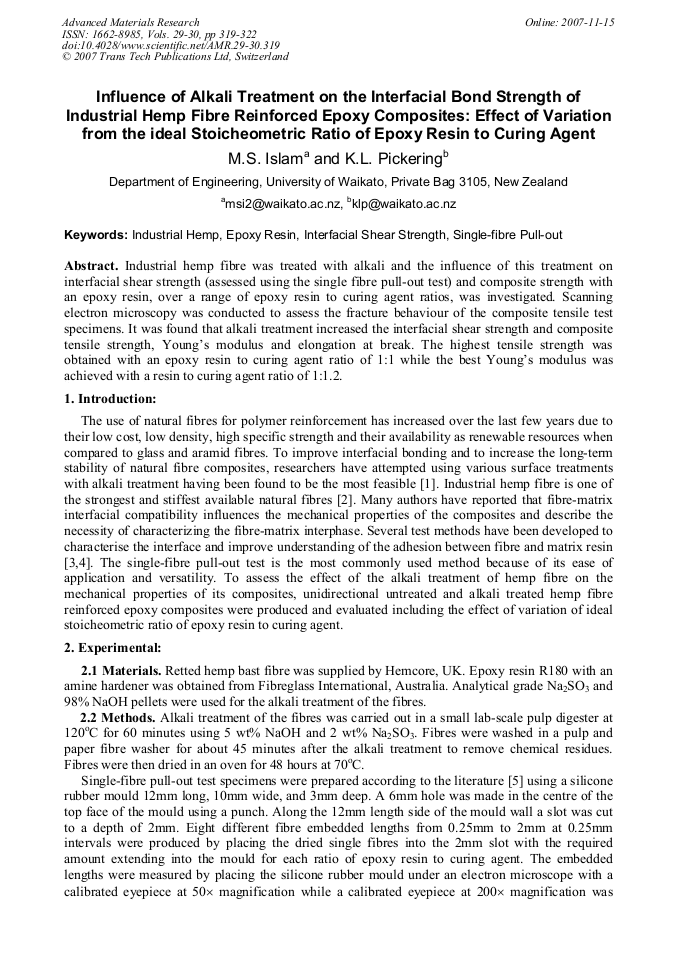

Article Preview

Abstract:

Industrial hemp fibre was treated with alkali and the influence of this treatment on interfacial shear strength (assessed using the single fibre pull-out test) and composite strength with an epoxy resin, over a range of epoxy resin to curing agent ratios, was investigated. Scanning electron microscopy was conducted to assess the fracture behaviour of the composite tensile test specimens. It was found that alkali treatment increased the interfacial shear strength and composite tensile strength, Young’s modulus and elongation at break. The highest tensile strength was obtained with an epoxy resin to curing agent ratio of 1:1 while the best Young’s modulus was achieved with a resin to curing agent ratio of 1:1.2.

You might also be interested in these eBooks
Advanced Materials and Processing IV View Preview

Info:

Periodical:

Advanced Materials Research (Volumes 29-30)

Pages:

319-322

DOI:

https://doi.org/10.4028/www.scientific.net/AMR.29-30.319

Citation:

Cite this paper

Online since:

November 2007

Authors:

M.S. Islam, K.L. Pickering

Keywords:

Epoxy Resin (ER), Industrial Hemp, Interfacial Shear Strength IFSS, Single-Fibre Pull-Out

Export:

RIS, BibTeX

Price:

Permissions CCC:

Request Permissions

Permissions PLS:

Request Permissions

Сopyright:

© 2007 Trans Tech Publications Ltd. All Rights Reserved

Share:

Citation:

References

[1] D. Ray, B.K. Sarkar, R. K Basak and A.K. Rana: J. Appl. Polym. Sci. 94 (2004), p.123.

Google Scholar

[2] K.L. Pickering, M. Priest, T. Watts, G. Beckermann and S.N. Alam: J. Adv. Mat. 37 (2005), p.15.

Google Scholar

[3] J.P. Favre and J. Perrin: J. Mater. Sci. 7 (1972), p.1113.

Google Scholar

[4] M.R. Piggott: Compos. Sci. and Technol. 57 (1997), p.853.

Google Scholar

[5] A.K. Patrikis, M.C. Andrews and R.J. Young: Comp. Sci. Tech. 52 (1994), p.387.

Google Scholar

[6] K. Tanaka, K. Minoshima, W. Grela and K. Komai: Comp. Sci. Tech. 62 (2002), p.2169.

Google Scholar

[7] A. Valadez-Gonzalez, J.M. Cervantes-Uc, R. Olayo and Herrera-Franco: Composites: Part B 30 (1999), p.309.

DOI: 10.1016/s1359-8368(98)00054-7

Google Scholar

[8] A. Stamboulis, C. Baillie and E. Schulz: Die Angewandte Makromolekulare Chemie 272 (1999), p.117.

Google Scholar
